Bar Type LCD 11.3inch 440x1920 Resolution TFT LCD Module

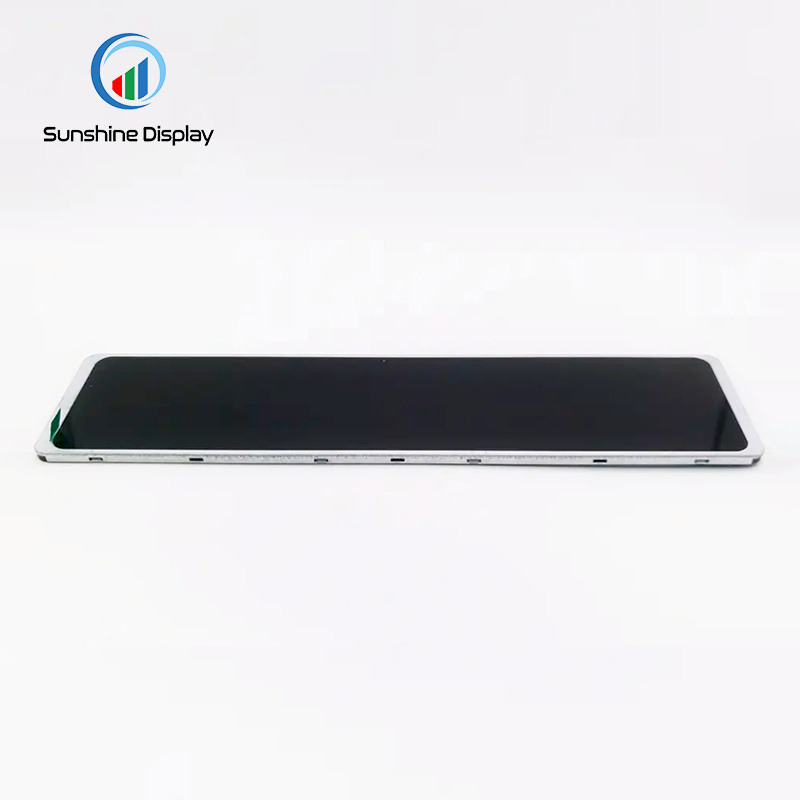

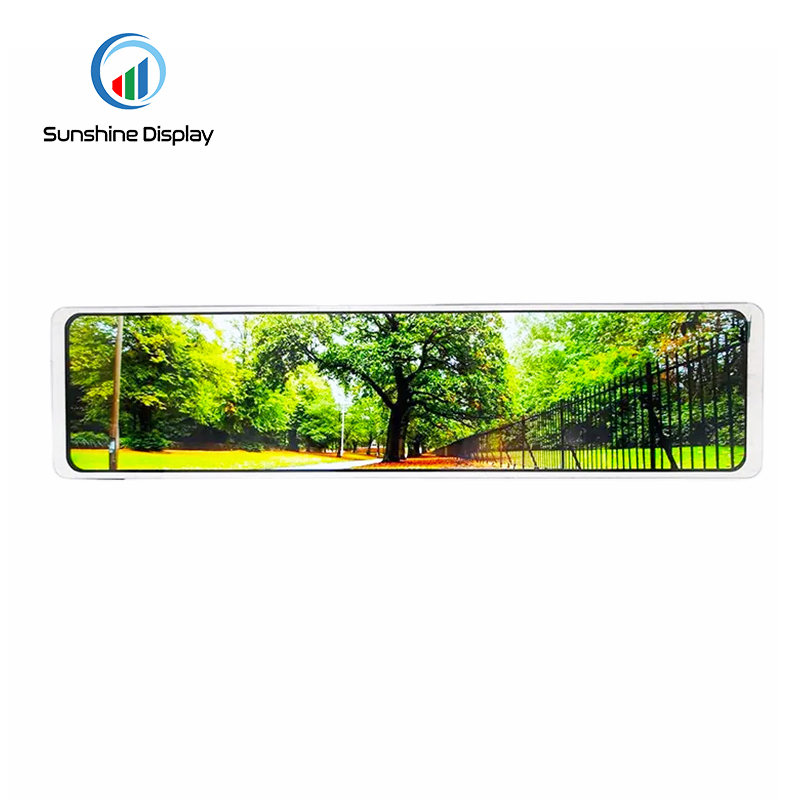

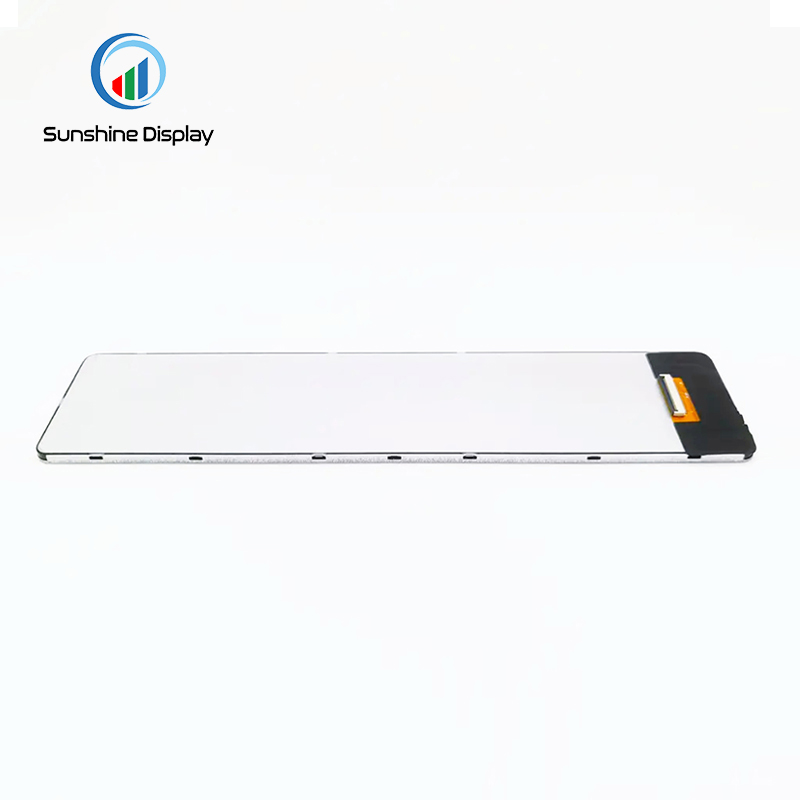

Name: SDT113BUSI-01 11.3 inch Bar Type TFT LCD Module
Brand: Sunshine Display
SKU: SDT113BUSI-01

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

SDT113BUSI-01 11.3 inch Description:

Sunshine Display model SDT113BUSI-01 serials are the standard 11.3 inch color TFT LCD, normally white with transmissive type TN panel, 440*1920 resolution, TBD driver IC, MIPI interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 500 nits.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 500 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

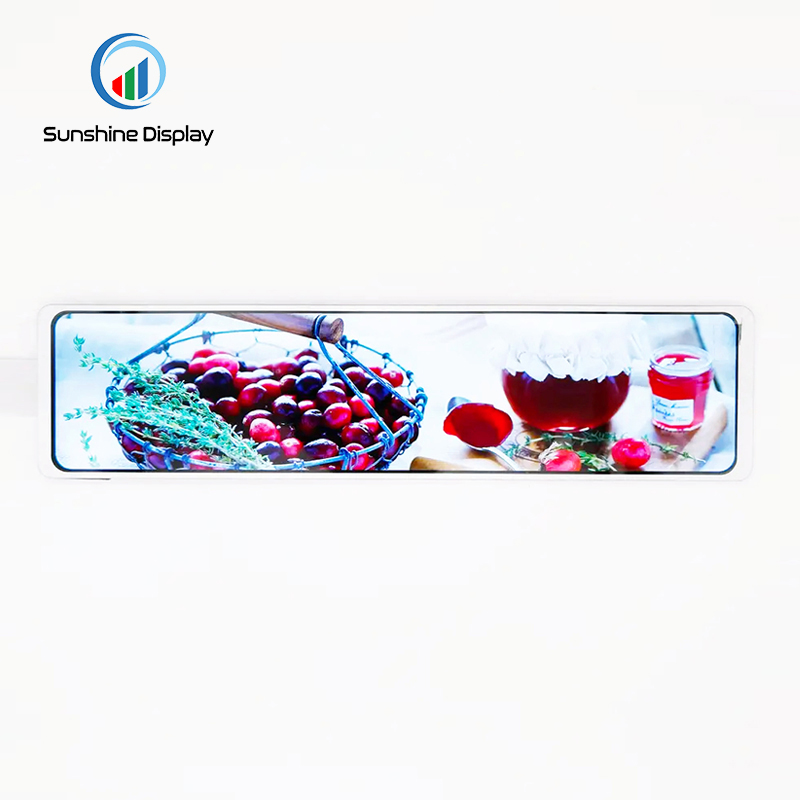

For this 11.3 inch TFT LCD display, 440*1920 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.

Specifications

Need the latest datasheet or drawing? Request documentation for SDT113BUSI-01.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT113BUSI-01	-
Size	11.3	inch
Resolution	440*1920	dots
LCD Type	IPS	-
Viewing Angle	ALL	o'clock
Luminance	500	cd/m2
LED Numbers	2S8P	-
LCD Driver IC	TBD	-
Pin Number	40	-
Module Interface	MIPI	-
With/Without TP	Without TP	-
Touch Driver IC	-	-
Outline Dimension	57.9252.694.6	-
Active Area	64.98*266.39	mm
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃

Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
