IPS 7 Inch TFT LCD Module 1024x600 With Capacitive Touch Screen
SDT070BWHI-38CP
12.3inch Automotive TFT LCD Display 1920x720 Wide Temperaturer LVDS Interface
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

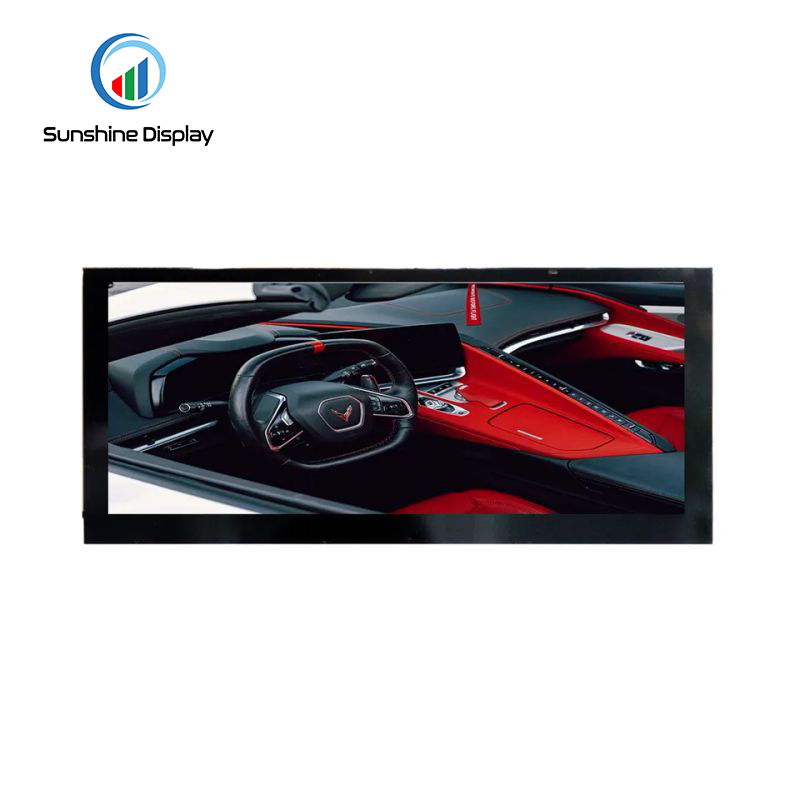

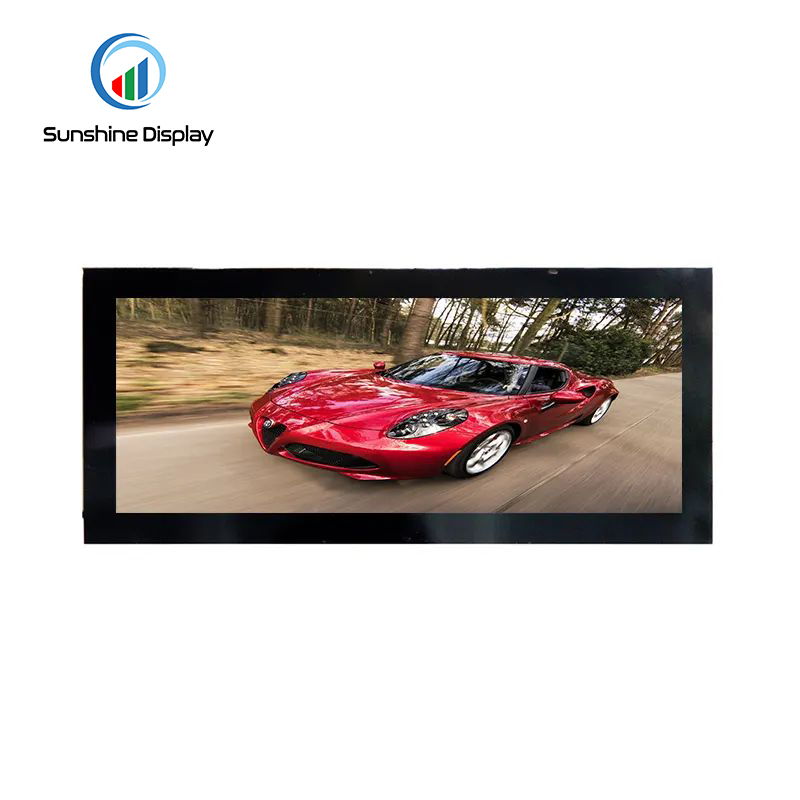

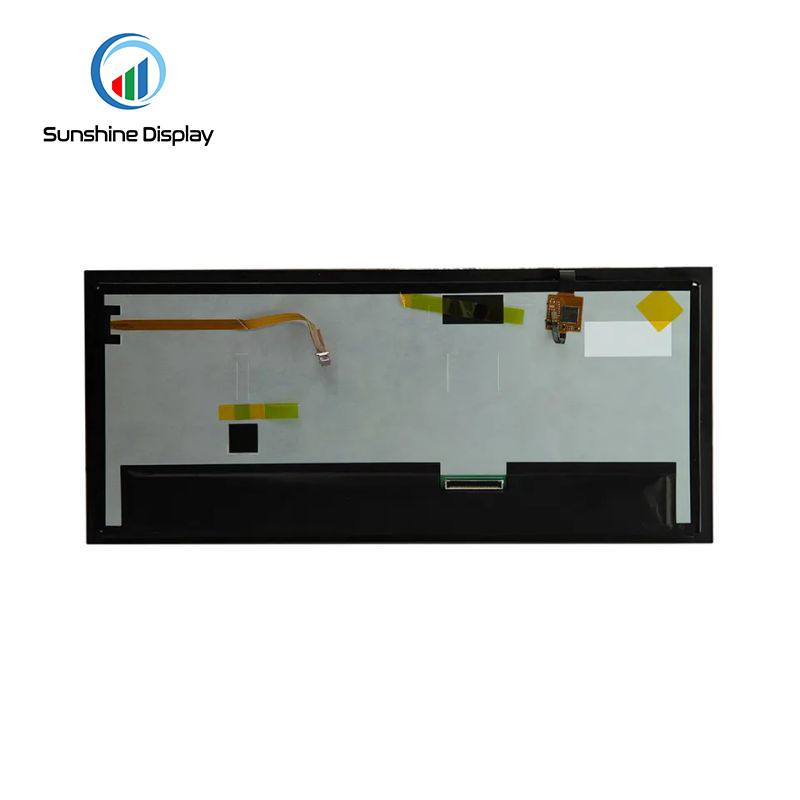

SDT123QFI-06 12.3 inch Description:
Sunshine Display model SDT123QFI-06 serials are the standard 12.3 inch color TFT LCD, normally white with transmissive type TN panel, 1920*720 resolution, TBD driver IC, -- interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 600 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 600 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -30~+85 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application

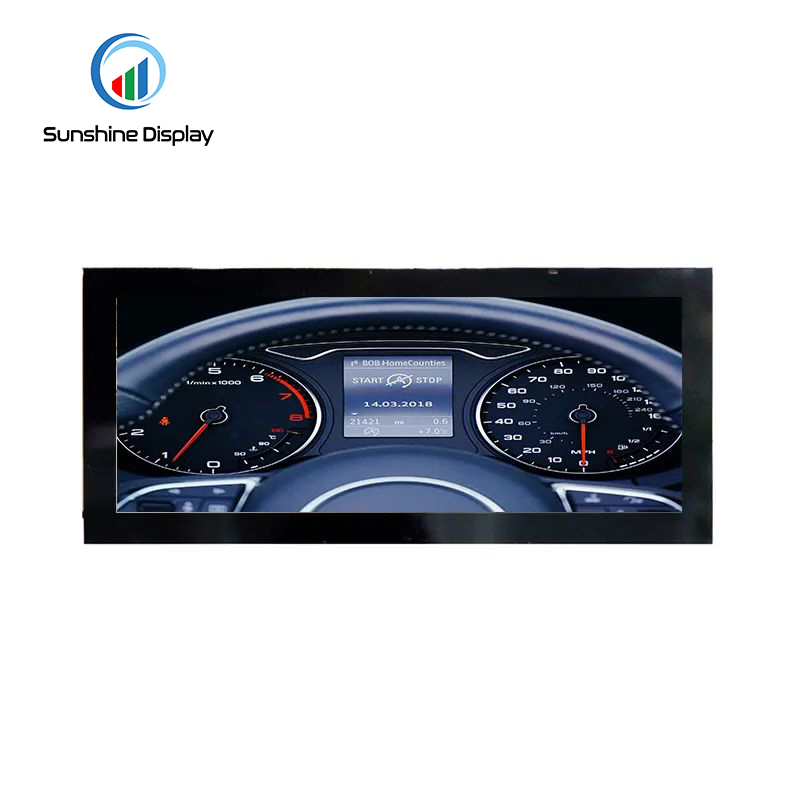

For this 12.3 inch TFT LCD display, 1920*720 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Design Resources
Explore integration guides for this display category. Use the model’s technical documentation to confirm exact specifications.
Need model-specific documentation?
Ask about available datasheets and drawings for SDT123QFI-06.
Specifications
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT123QFI-06 | - |
| Size | 12.3 | inch |
| Resolution | 1920*720 | dots |
| LCD Type | IPS | - |
| Viewing Angle | ALL | o'clock |
| Luminance | 600 | cd/m2 |
| LED Numbers | TBD | - |
| LCD Driver IC | TBD | - |
| Pin Number | 50 | - |
| Module Interface | LVDS | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 308.3*130.2*7.3 | - |
| Active Area | 292.032*109.512 | mm |
| Operating Temperature | -30~+85 | ℃ |
| Storage Temperature | -40~+90 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
