8.8inch 1280*480 Bar Type LCD Display TFT Module with LVDS Interface

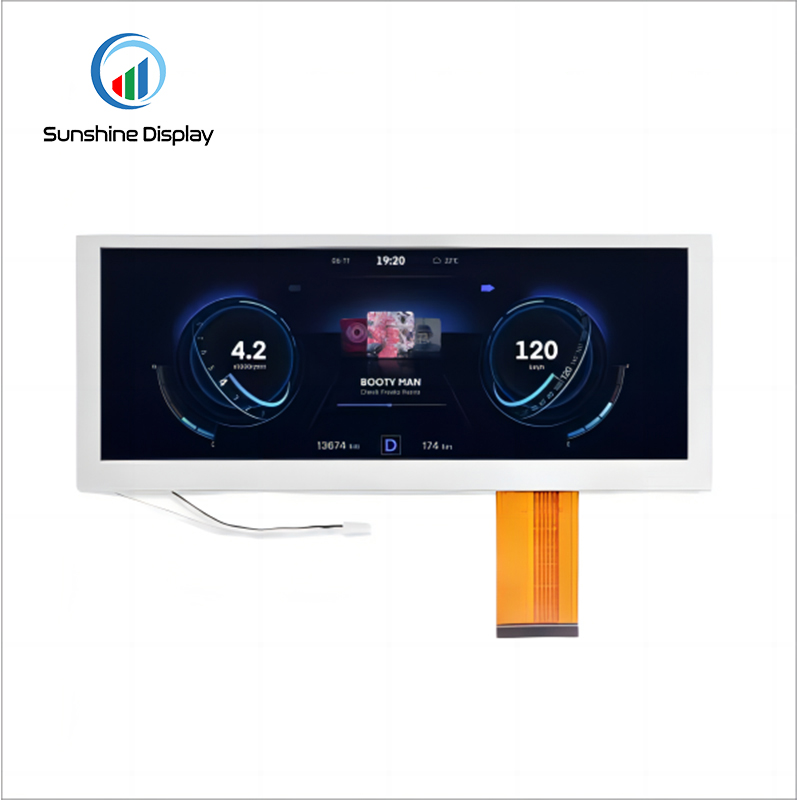

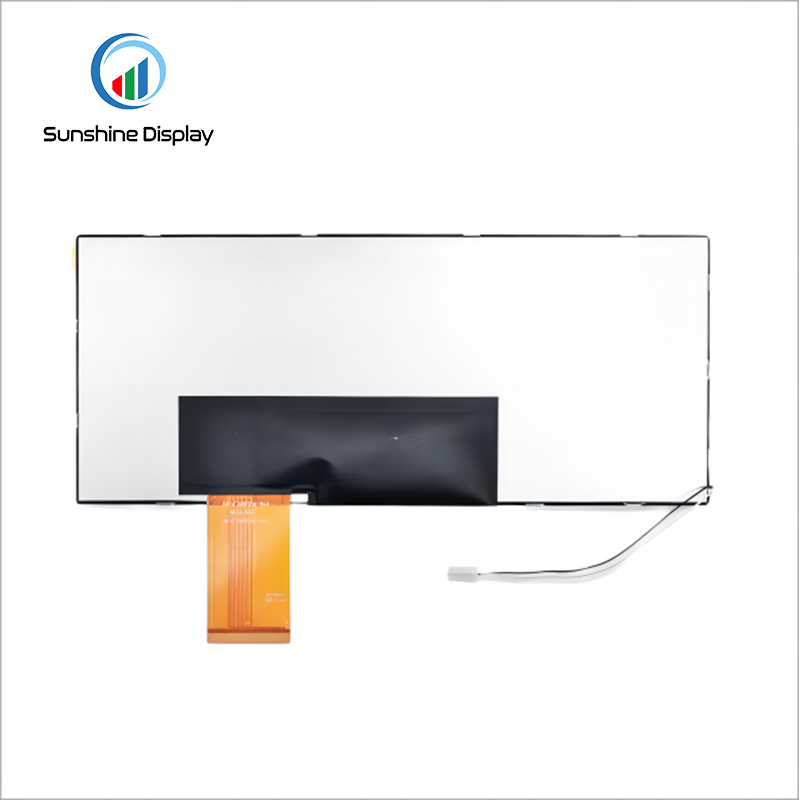

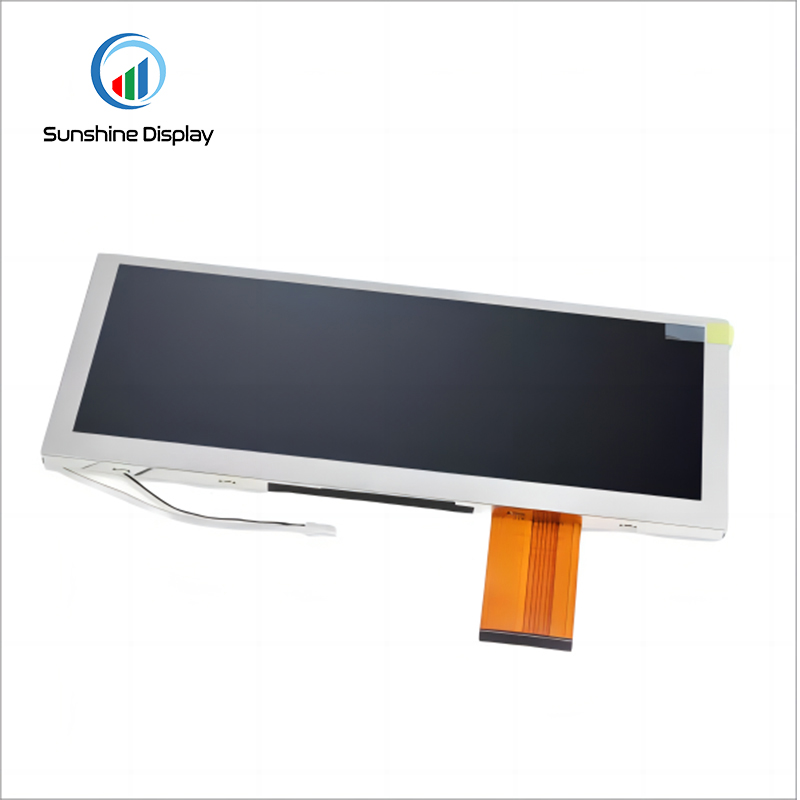

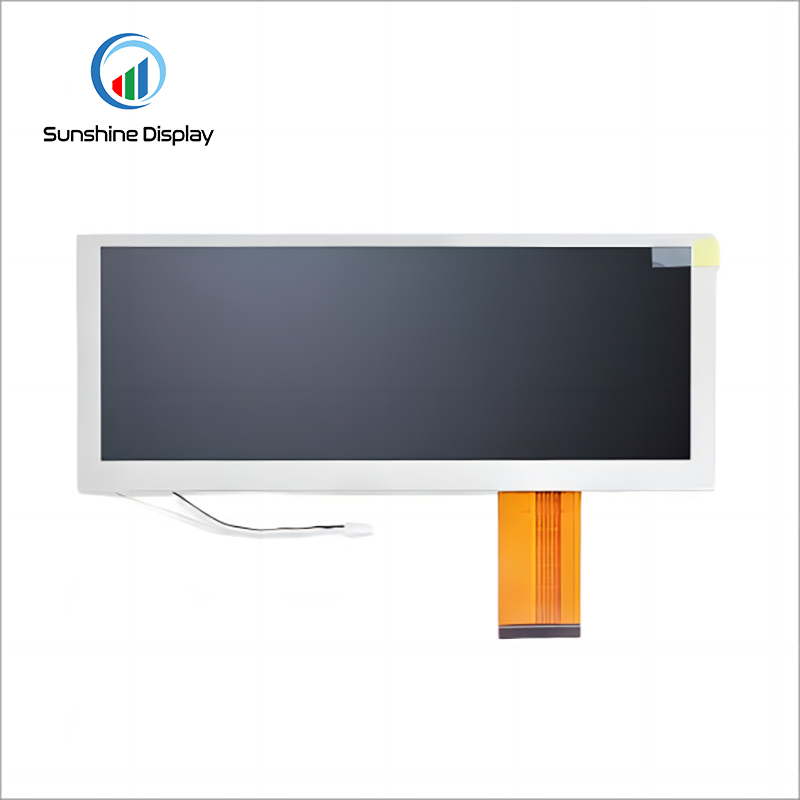

Name: SDT088BZHI-01 8.8 inch Bar Type TFT LCD Module
Brand: Sunshine Display
SKU: SDT088BZHI-01

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

SDT088BZHI-01 8.8 inch Description:

Sunshine Display model SDT088BZHI-01 serials are the standard 8.8 inch color TFT LCD, normally white with transmissive type TN panel, 1280*480 resolution, NA driver IC, LVDS interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 400 nits.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 400 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

For this 8.8 inch TFT LCD display, 1280*480 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.

Specifications

Need the latest datasheet or drawing? Request documentation for SDT088BZHI-01.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT088BZHI-01	-
Size	8.8	inch
Resolution	1280*480	dots
LCD Type	IPS	-
Viewing Angle	ALL	o'clock
Luminance	400	cd/m2
LED Numbers	3S9P-LED	-
LCD Driver IC	NA	-
Pin Number	40	-
Module Interface	LVDS	-
With/Without TP	Without TP	-
Touch Driver IC	-	-
Outline Dimension	229.6X97.3X6.0	-
Active Area	209.28X78.48	mm
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃

Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
