Factory Supply 3.5inch LCD Display Screen With SSD2119 IC TFT LCD Module with MCU/SPI/RGB Interface
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

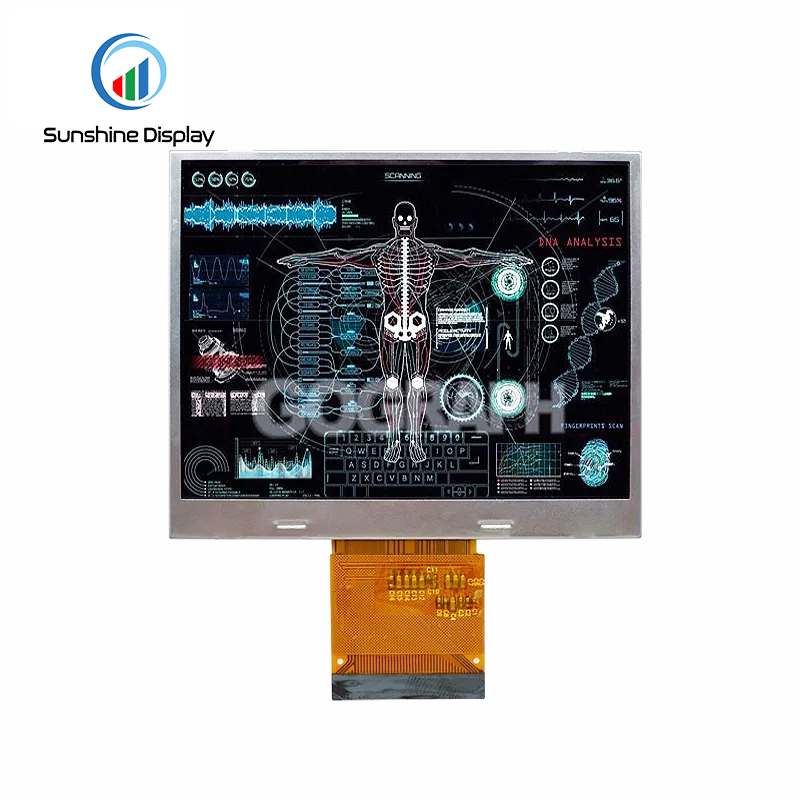

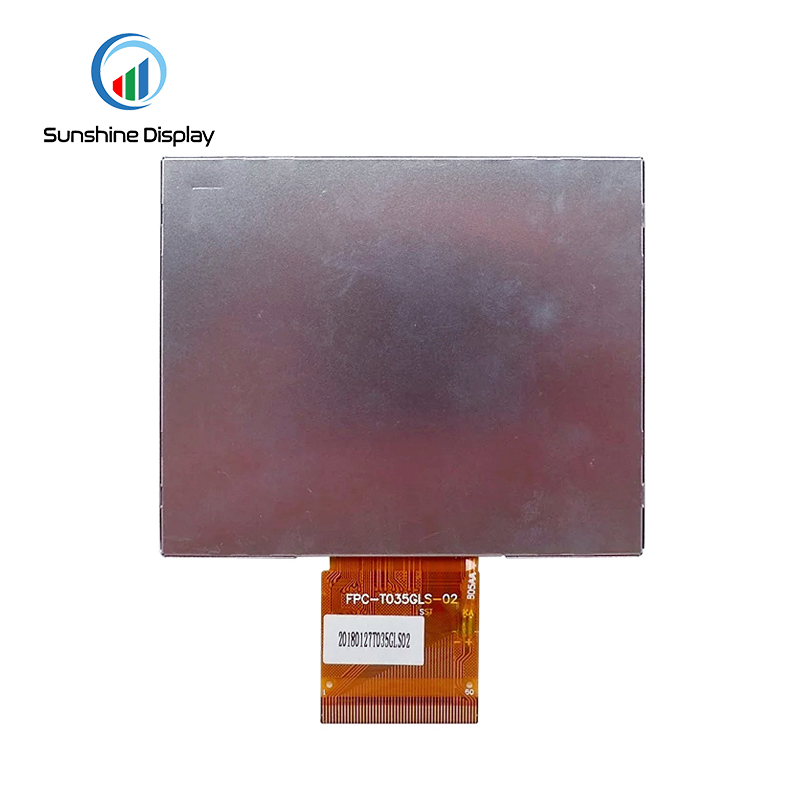

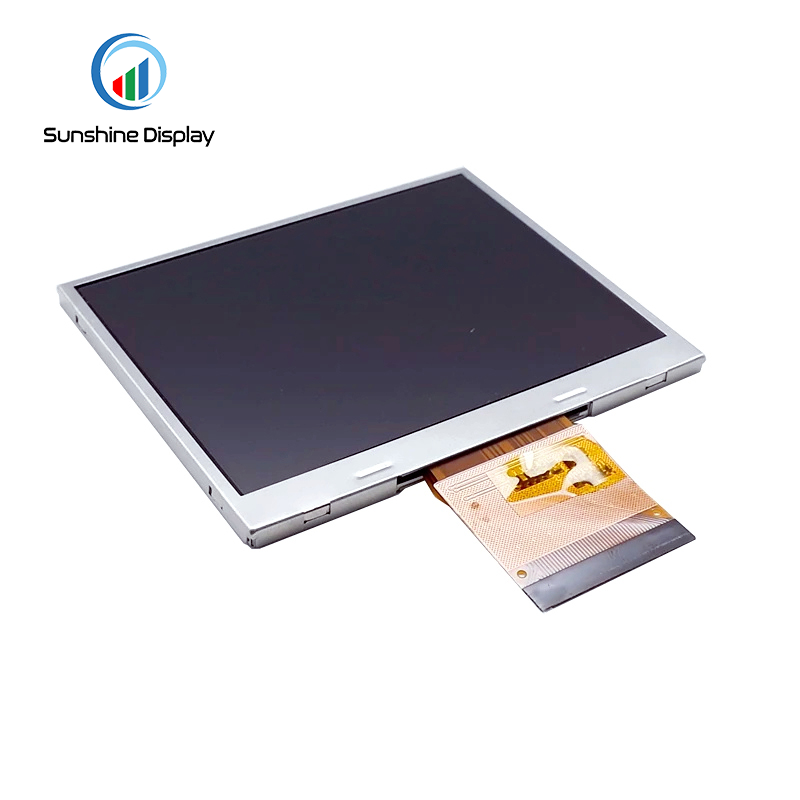

SDT035GQLS-02 3.5 inch Description:
Sunshine Display model SDT035GQLS-02 serials are the standard 3.5 inch color TFT LCD, normally white with transmissive type TN panel, 320*240 resolution, SSD2119 driver IC, MCU/RGB/SPI interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 330 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 330 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 3.5 inch TFT LCD display, 320*240 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Specifications
Need the latest datasheet or drawing? Request documentation for SDT035GQLS-02.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT035GQLS-02 | - |
| Size | 3.5 | inch |
| Resolution | 320*240 | dots |
| LCD Type | TN | - |
| Viewing Angle | 12:00 | o'clock |
| Luminance | 330 | cd/m2 |
| LED Numbers | 6S | - |
| LCD Driver IC | SSD2119 | - |
| Pin Number | 50 | - |
| Module Interface | MCU/RGB/SPI | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 76.90*63.90*3.20 | - |
| Active Area | 70.08*52.56 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
