Factory Cost 3.5inch TFT LCD Display 320X240 LCD Screen 54pin with PCAP Capacitive Touch Screen
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

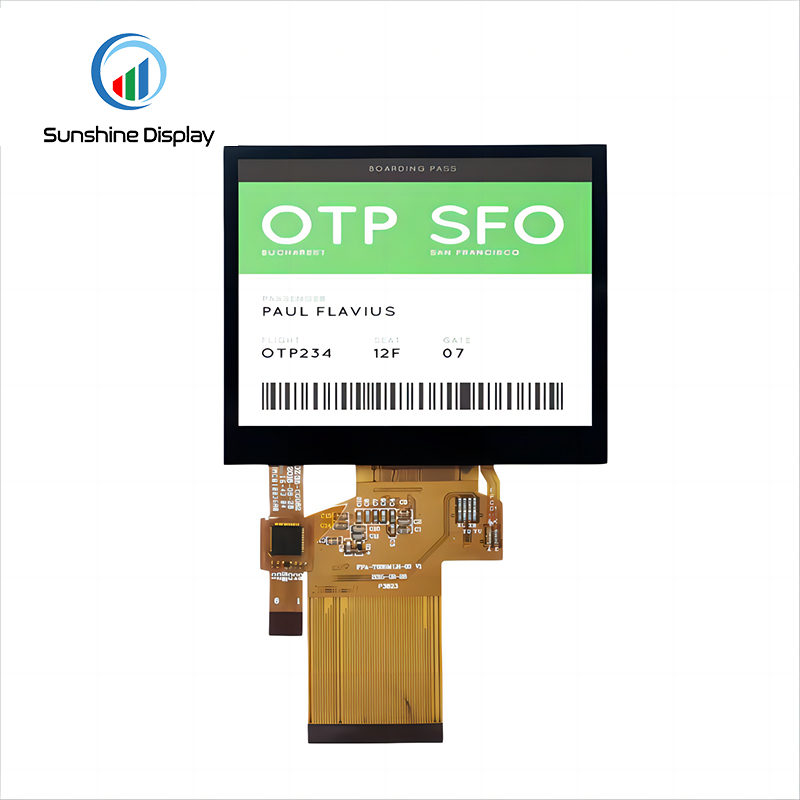

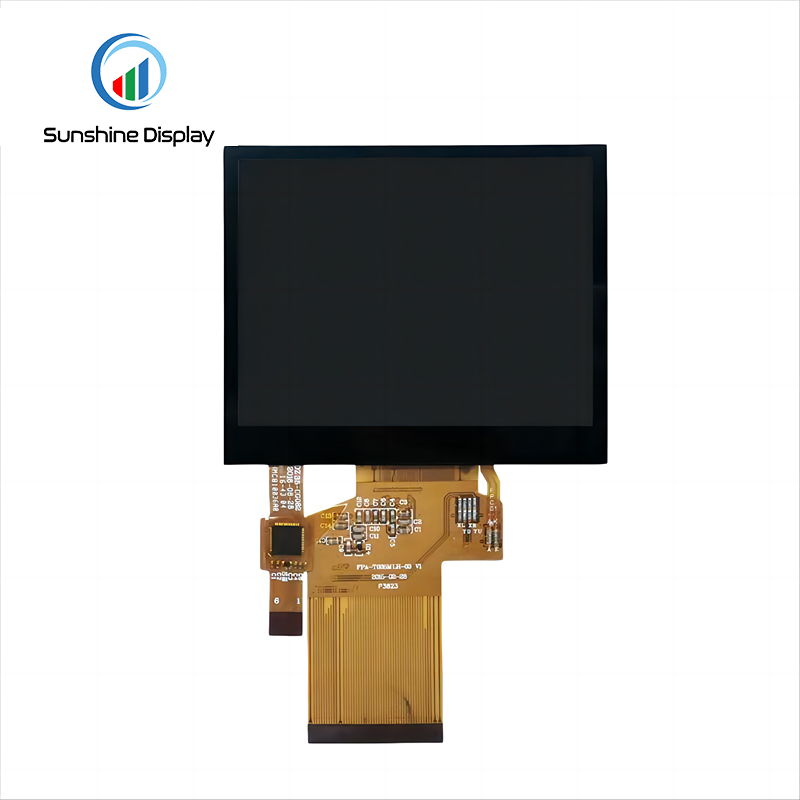

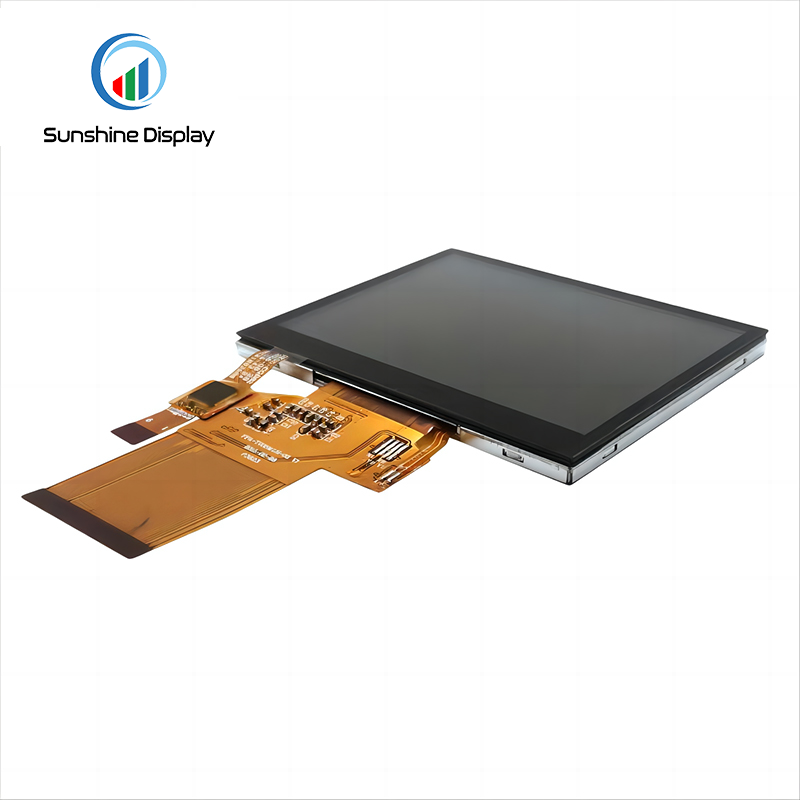

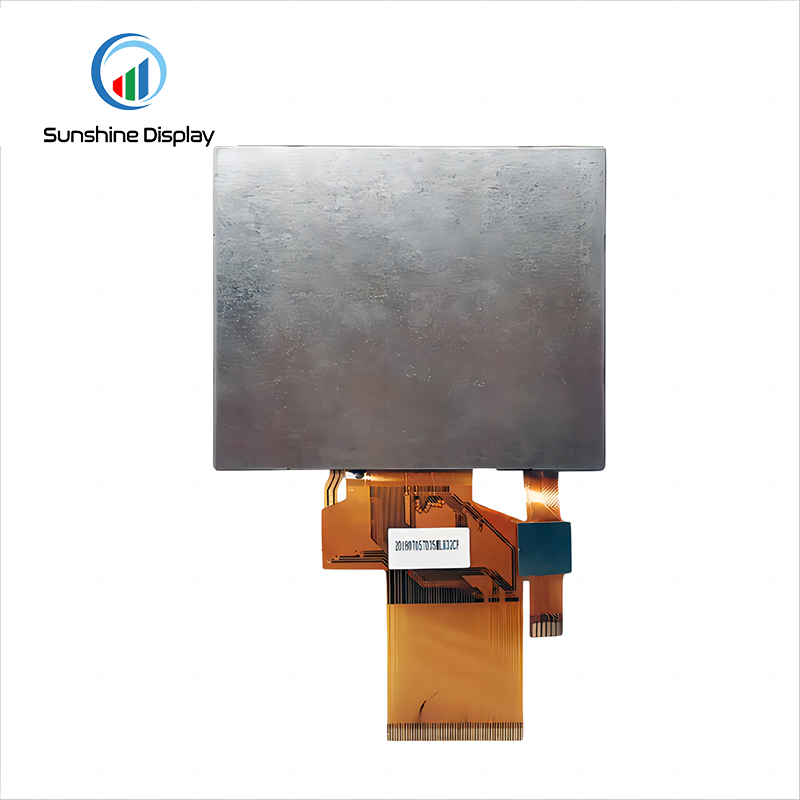

SDT035MQLH-08CP 3.5 inch Description:
Sunshine Display model SDT035MQLH-08CP serials are the standard 3.5 inch color TFT LCD, normally white with transmissive type TN panel, 320*240 resolution, HX8238D driver IC, -- interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 480 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 480 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
- Optional capacitive touch panel supports modern and intuitive user interfaces.
Application
For this 3.5 inch TFT LCD display, 320*240 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Design Resources
Explore integration guides for this display category. Use the model’s technical documentation to confirm exact specifications.
Need model-specific documentation?
Ask about available datasheets and drawings for SDT035MQLH-08CP.
Specifications
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT035MQLH-08CP | - |
| Size | 3.5 | inch |
| Resolution | 320*240 | dots |
| LCD Type | TN | - |
| Viewing Angle | 12:00 | o'clock |
| Luminance | 480 | cd/m2 |
| LED Numbers | 6S | - |
| LCD Driver IC | HX8238D | - |
| Pin Number | 54 | - |
| Module Interface | 24BIT RGB | - |
| With/Without TP | With CTP | - |
| Touch Driver IC | FT5346 | - |
| Outline Dimension | 76.90*63.90*4.80 | - |
| Active Area | 70.08*52.56 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
