Transflective 1.77inch TFT LCD Module 160x128 with MCU Interface
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

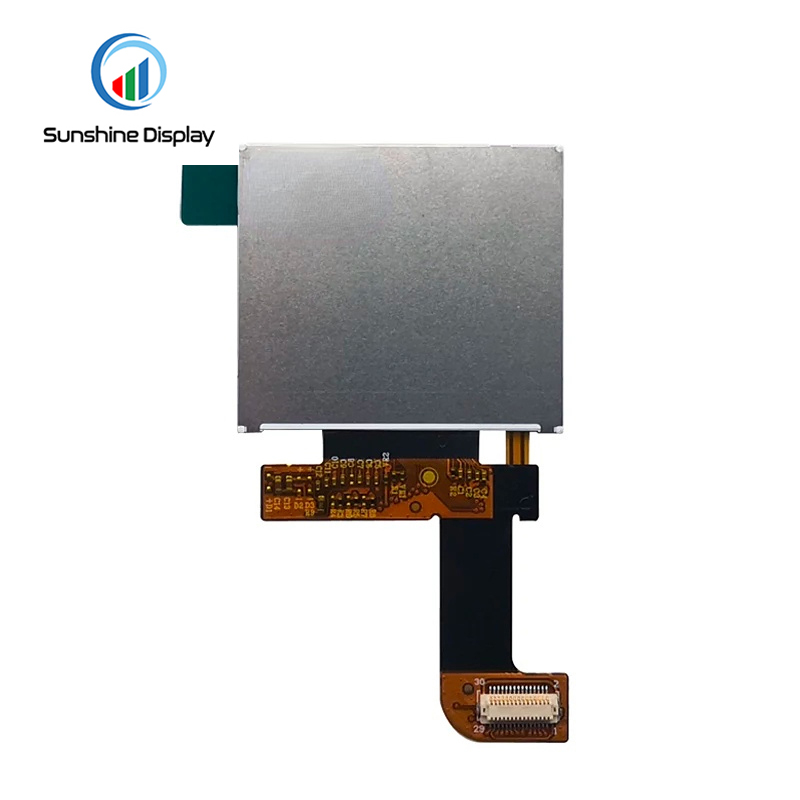

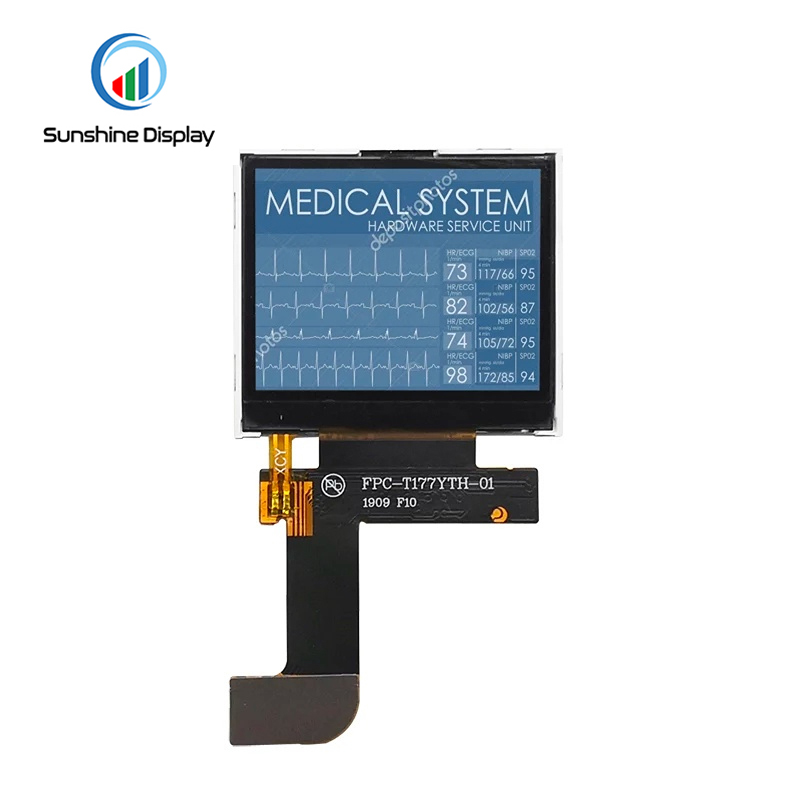

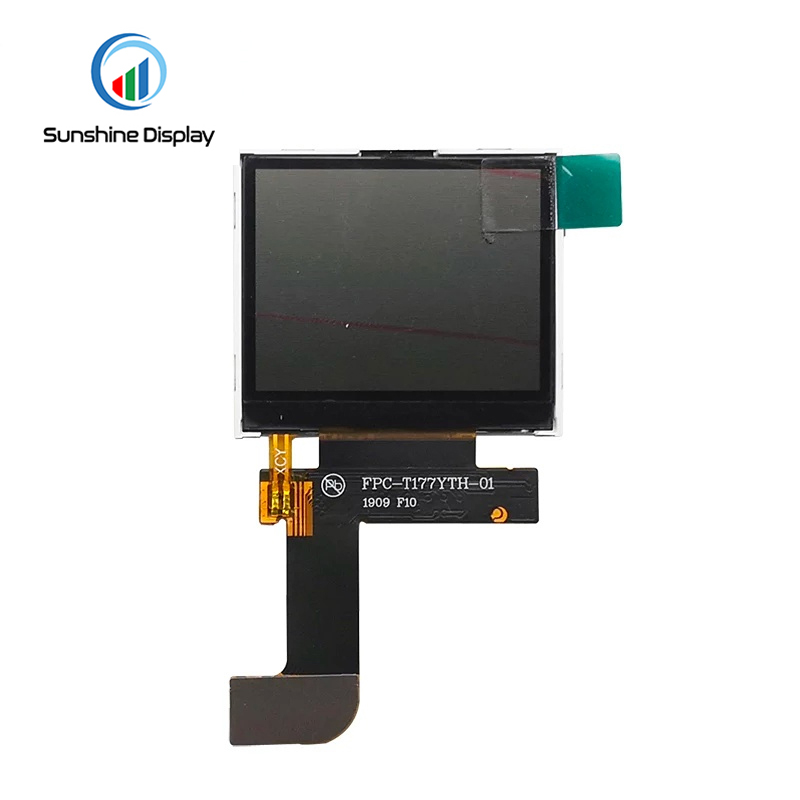

SDT177YSHT-01 1.77 inch Description:
The SDT177YSHT-01 is a 1.77 inch TFT LCD with 16.7M colors, 160*128 resolution, and 110 cd/m² brightness. Featuring an all-angle viewing experience, MCU interface, and a wide operating range (-20~+70), it's compact and versatile for various applications.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 110 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
Typical applications for this sunlight readable tft lcd module include industrial automation control panels, medical monitoring equipment, smart home central controllers, POS terminals, in-vehicle infotainment systems, test and measurement instruments, and other embedded display systems.
Why Choose Sunshine Display?
With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT177YSHT-01 | - |
| Size | 1.77 | inch |
| Resolution | 160*128 | dots |
| LCD Type | Transflective | - |
| Viewing Angle | 10:50 | o'clock |
| Luminance | 110 | cd/m2 |
| LED Numbers | 3P | - |
| LCD Driver IC | HX8340B | - |
| Pin Number | 30 | - |
| Module Interface | MCU | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | |
| Outline Dimension | 40.77*36.20*2.20 | - |
| Active Area | 35.28*27.71 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
