2.0 inch 176*220 TFT LCD Screen 8bit/16bit MCU interface with Resistive Touch Panel
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

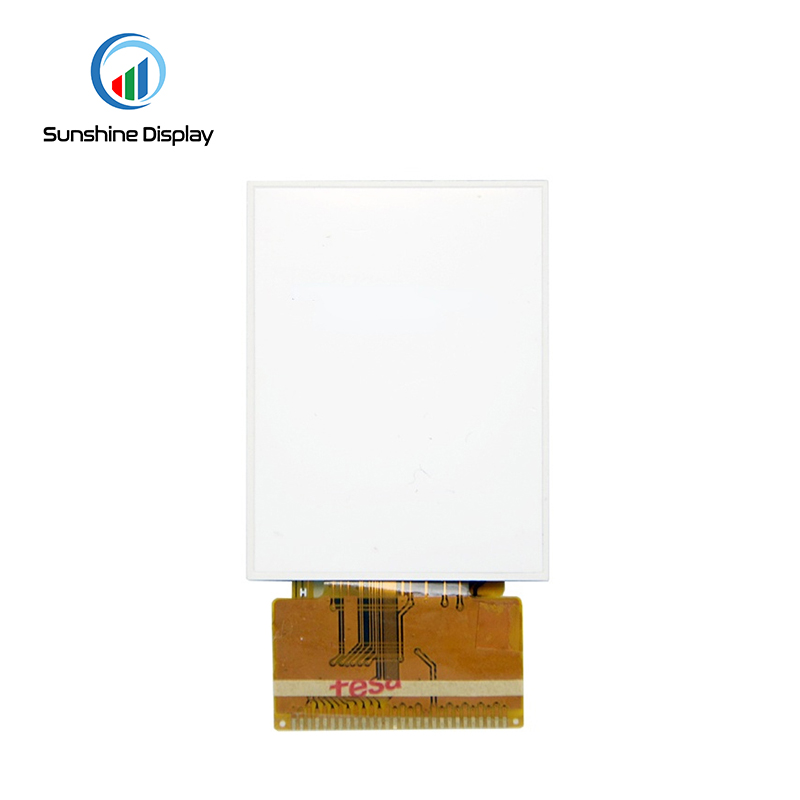

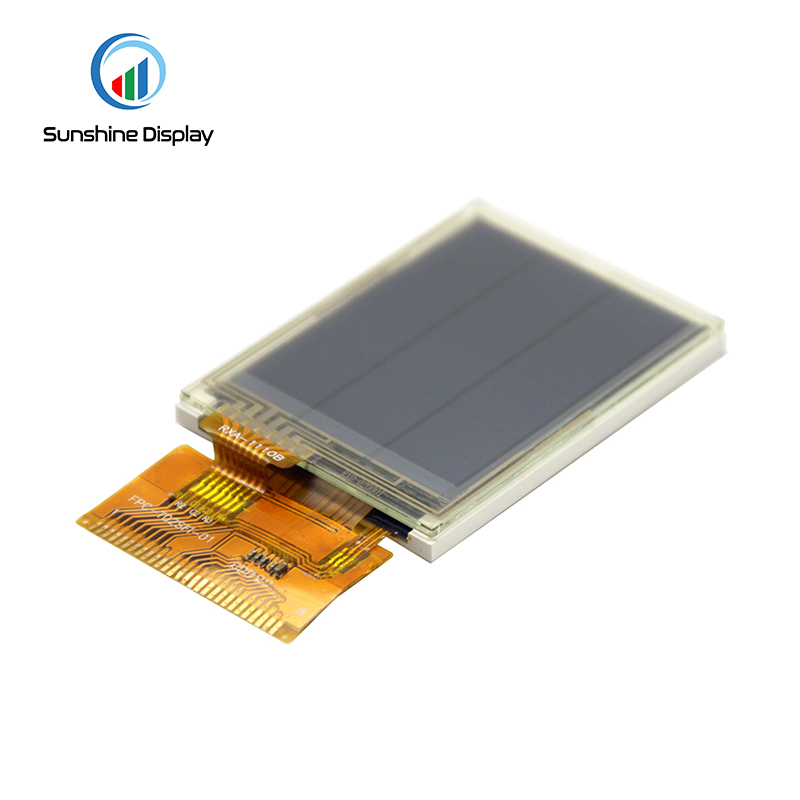

SDT020HFI-01P 2.0 inch Description:
Sunshine Display model SDT020HFI-01P serials are the standard 2.0 inch color TFT LCD, normally white with transmissive type TN panel, 176*220 resolution, ILI9225G driver IC, 8BIT MCU interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 150 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 150 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 2.0 inch TFT LCD display, 176*220 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Specifications
Need the latest datasheet or drawing? Request documentation for SDT020HFI-01P.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT020HFI-01P | - |
| Size | 2.0 | inch |
| Resolution | 176*220 | dots |
| LCD Type | TN | - |
| Viewing Angle | 12:00 | o'clock |
| Luminance | 150 | cd/m2 |
| LED Numbers | 2P | - |
| LCD Driver IC | ILI9225G | - |
| Pin Number | 28 | - |
| Module Interface | 8BIT MCU | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 38.50*51.65*4.10 | - |
| Active Area | 31.68×39.60 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
