Industrial Display 15.6inch TFT LCD Module 500cd/m2 with eDPinterface
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

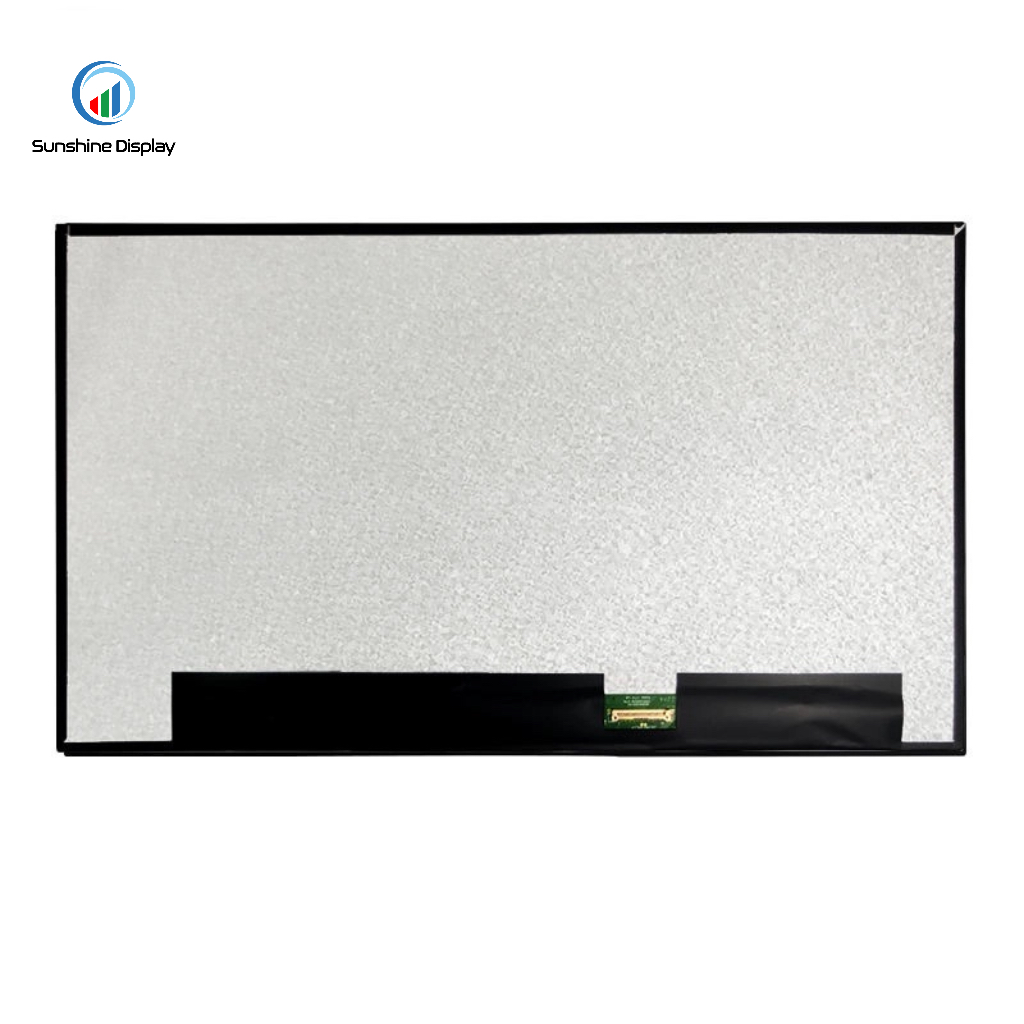

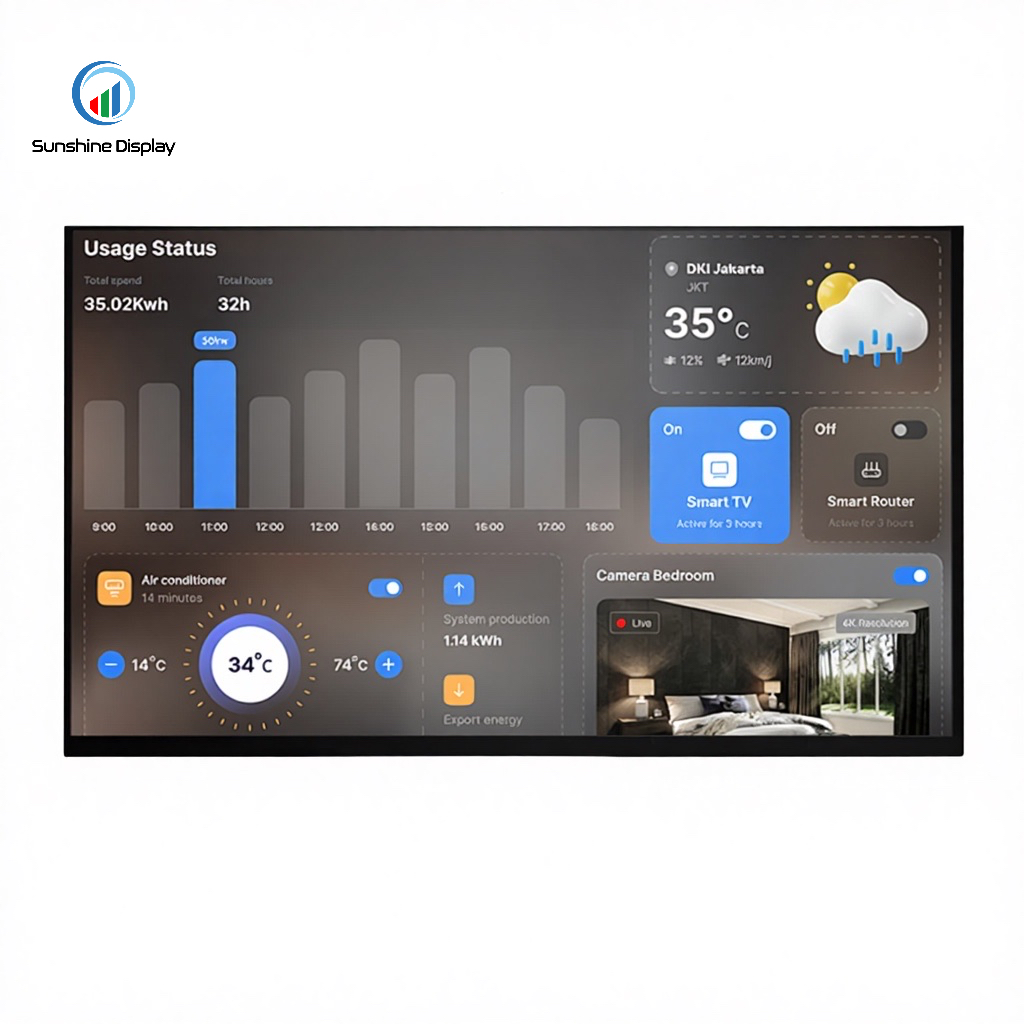

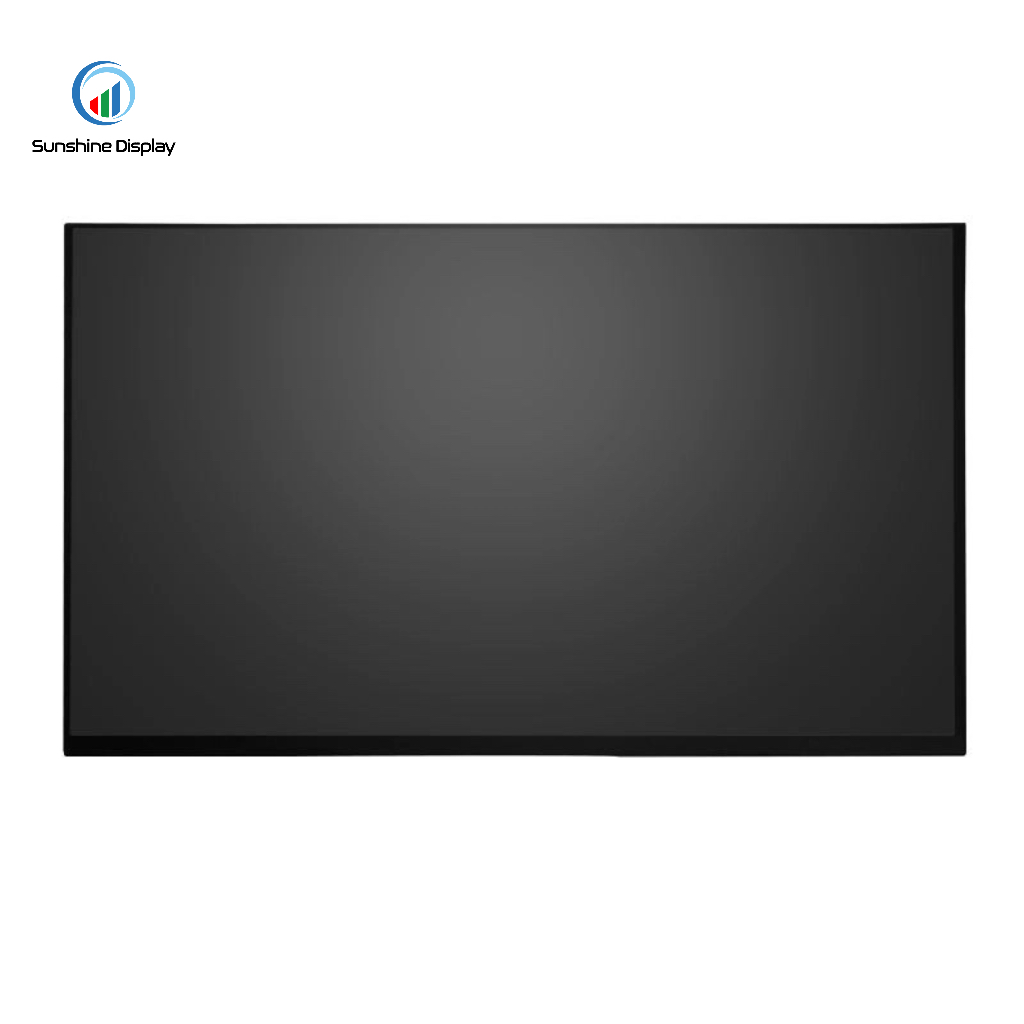

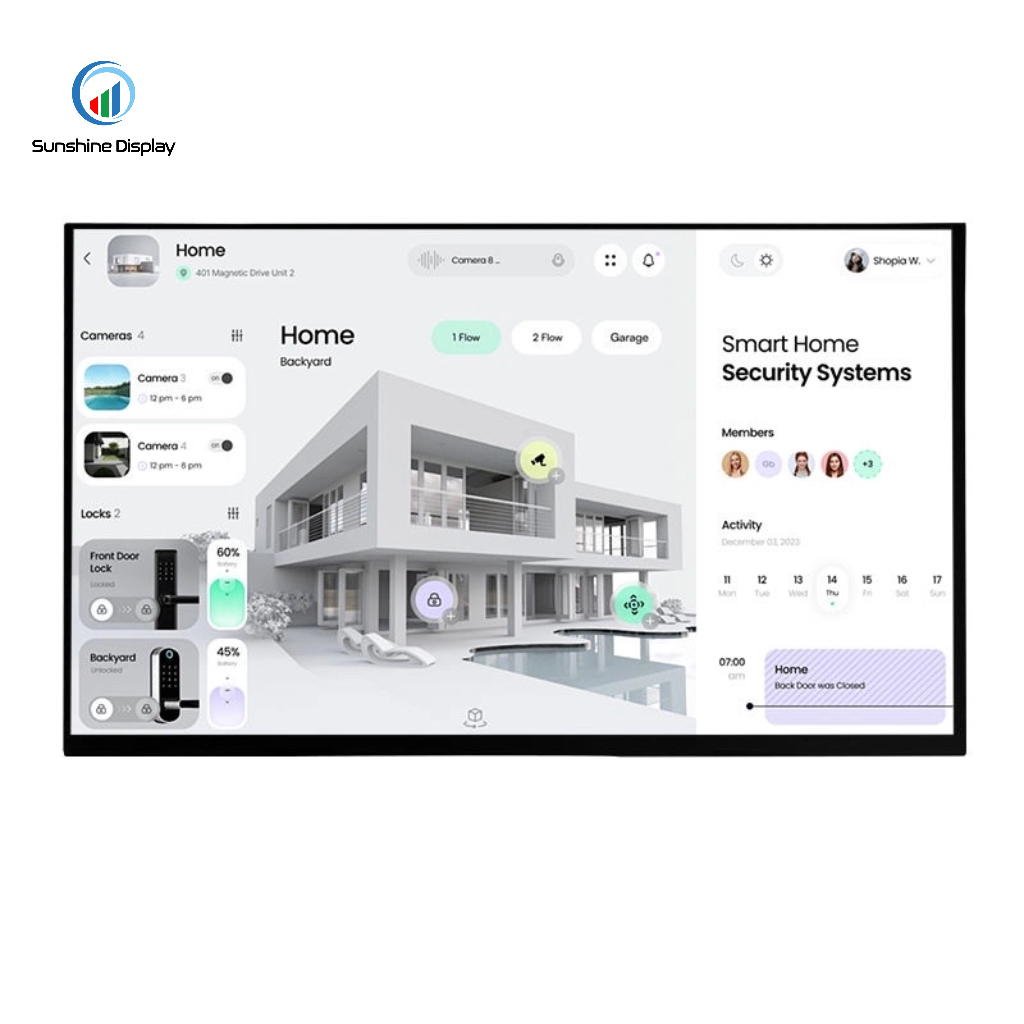

SDT156IFJH-03 15.6 inch Description:
Sunshine Display model SDT156IFJH-03 serials are the standard 15.6 inch color TFT LCD, normally white with transmissive type TN panel, 1920x1080 resolution, HX8036 driver IC, eDP interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 500 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 500 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 15.6 inch TFT LCD display, 1920x1080 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Specifications
Datasheet
For the best reading experience on phones, open the datasheet in full screen.
View Datasheet| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT156IFJH-03 | - |
| Size | 15.6 | inch |
| Resolution | 1920x1080 | dots |
| LCD Type | IPS | - |
| Viewing Angle | 85/85/85/85 | o'clock |
| Luminance | 500 | cd/m2 |
| LED Numbers | 54 | - |
| LCD Driver IC | HX8036 | - |
| Pin Number | 30 | - |
| Module Interface | eDP | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | NA | - |
| Outline Dimension | 360X212.3X6.4 | - |
| Active Area | 344.16X193.59 | mm |
| Operating Temperature | -20+70 | ℃ |
| Storage Temperature | -30+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
