Good performance 4.3inch LCD Display 480X272 with SSD1963 Transfer Board
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

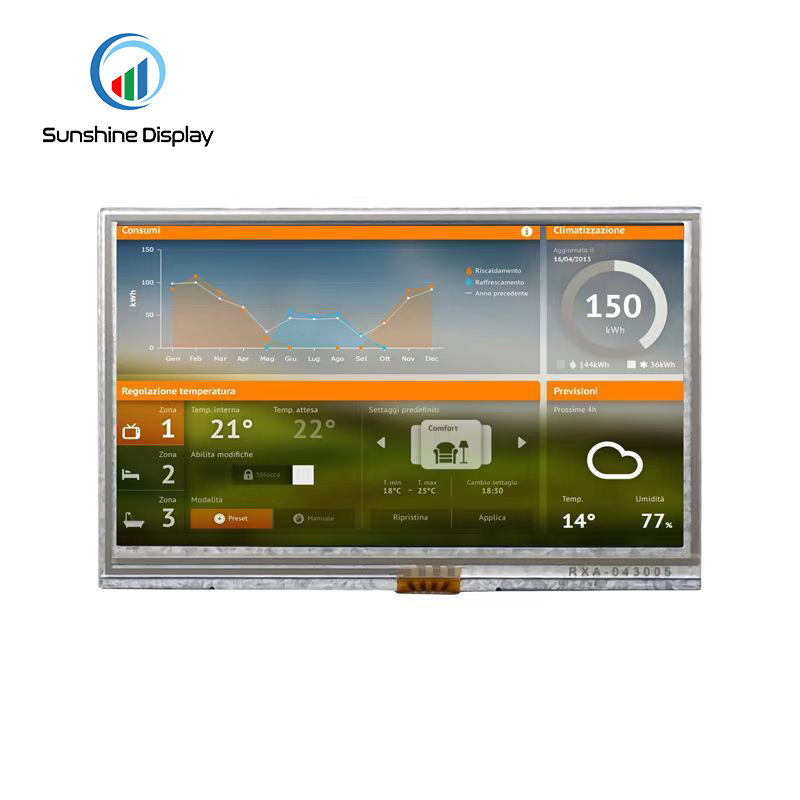

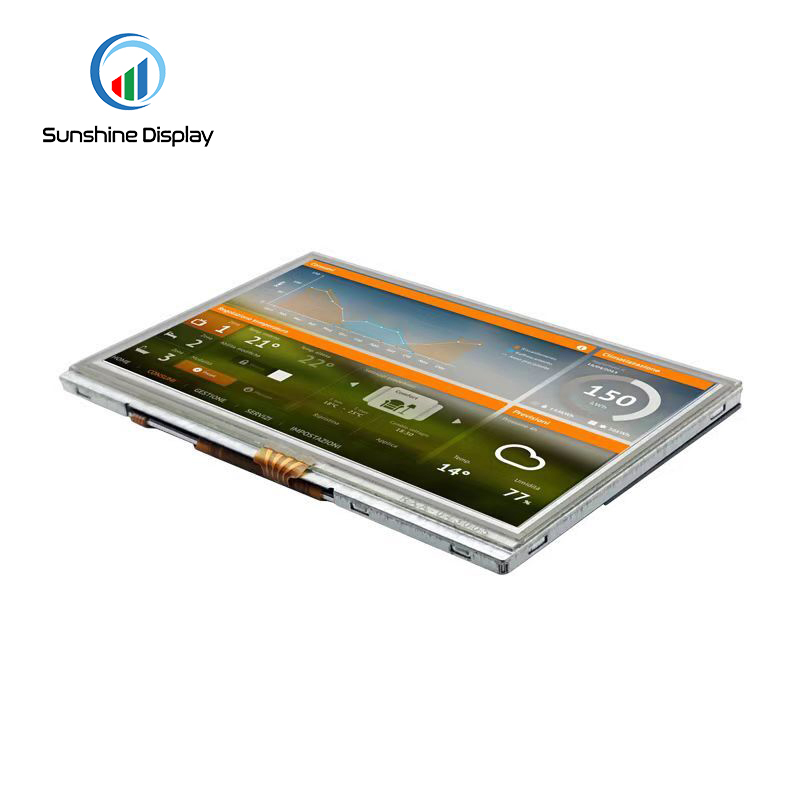

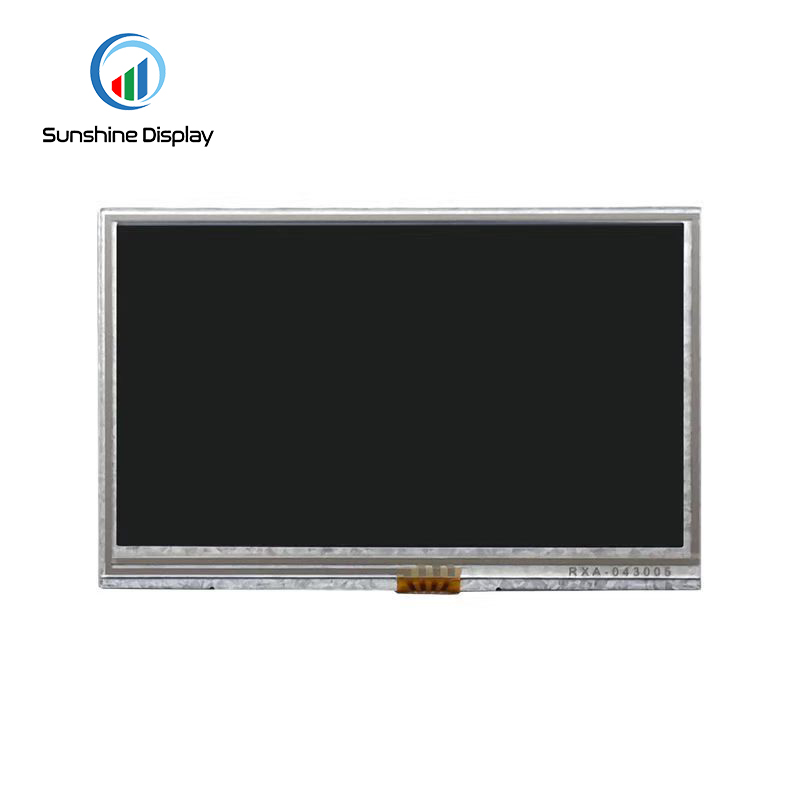

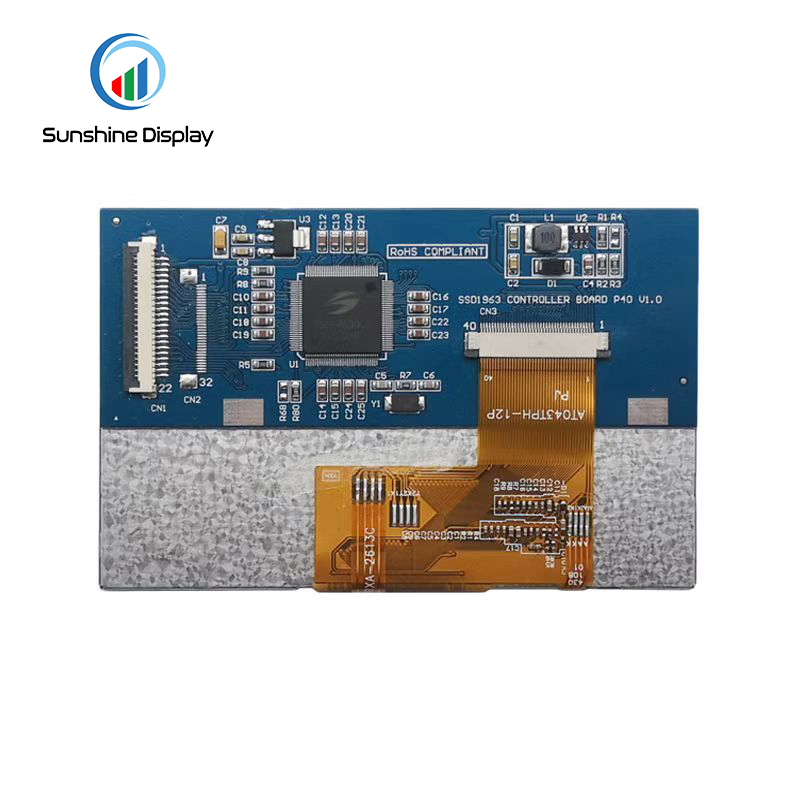

SDT043IPSN-01P-B 4.3 inch Description:
Sunshine Display model SDT043IPSN-01P-B serials are the standard 4.3 inch color TFT LCD, normally white with transmissive type TN panel, 480*272 resolution, SSD1963 driver IC, 16BIT MCU interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 420 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 420 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 4.3 inch TFT LCD display, 480*272 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Why Choose Sunshine Display?
With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT043IPSN-01P-B | - |
| Size | 4.3 | inch |
| Resolution | 480*272 | dots |
| LCD Type | TN | - |
| Viewing Angle | 12:00 | o'clock |
| Luminance | 420 | cd/m2 |
| LED Numbers | 5S2P | - |
| LCD Driver IC | SSD1963 | - |
| Pin Number | 40 | - |
| Module Interface | 16BIT MCU | - |
| With/Without TP | With RTP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 105.50*67.20*5.20 | - |
| Active Area | 95.04*53.86 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
