Sunlight Readable TFT 15.6inch IPS 1920X1080 1200cd/m2 High Brightness TFT Display with 30PIN eDP interface

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

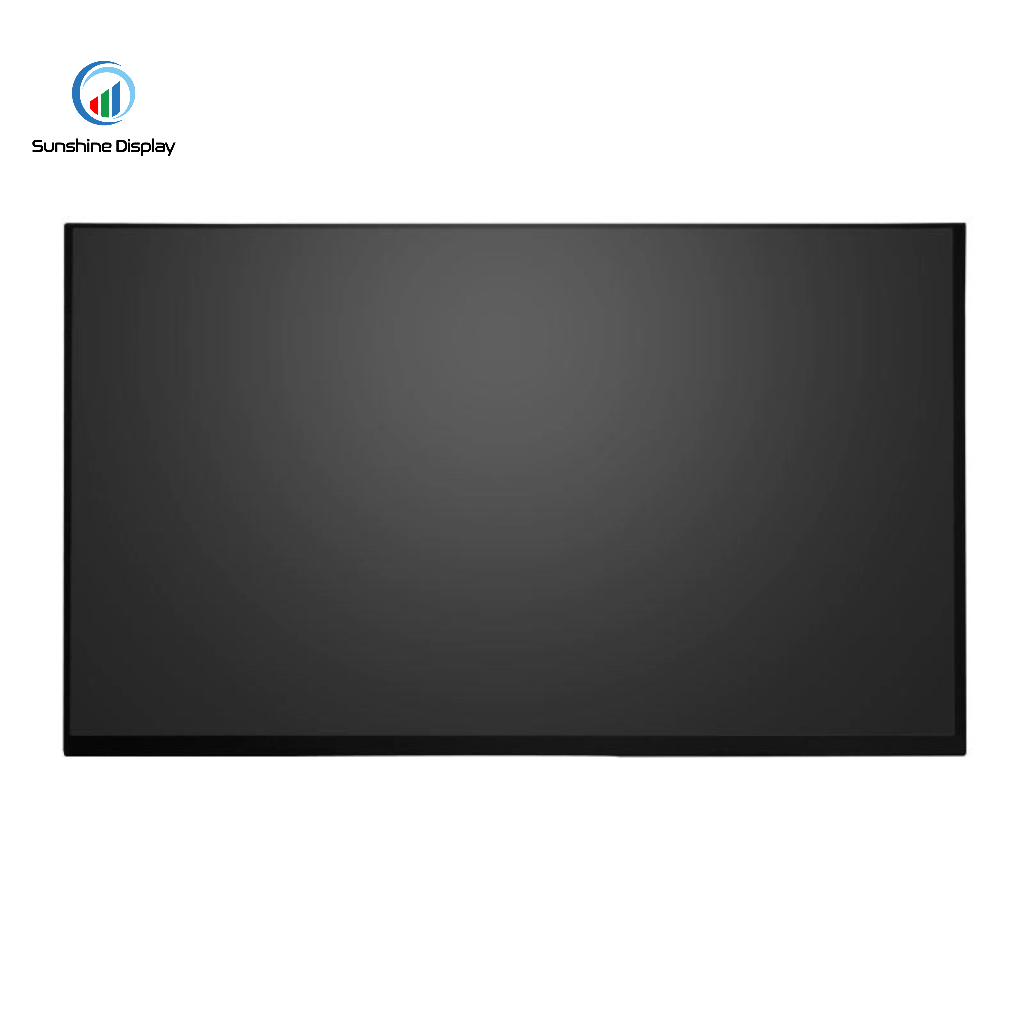

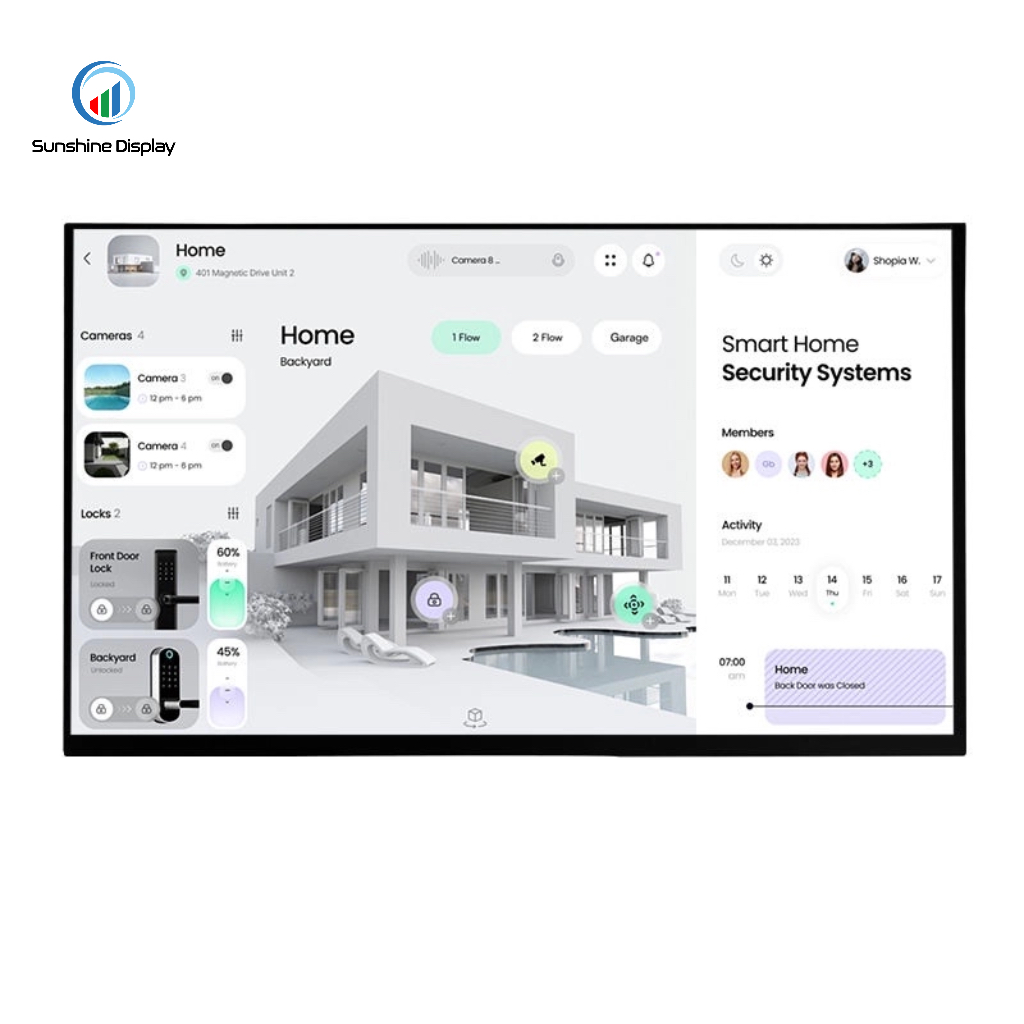

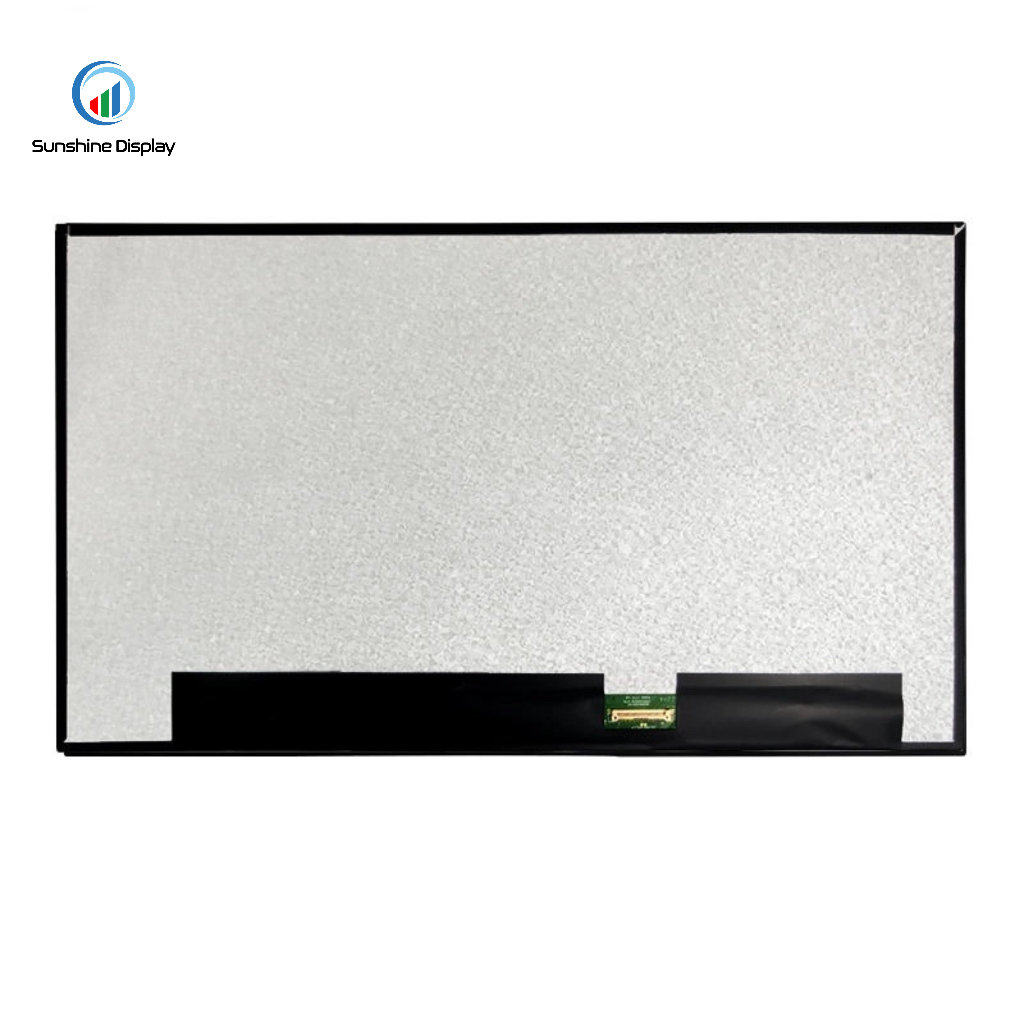

SDT156CFI-04 15.6 inch Description:

The SDT156CFI-04 is a 15.6 inch TFT LCD with 16.7M colors, 1920x1080 resolution, and 1200 cd/m² brightness. Featuring an all-angle viewing experience, eDP interface, and a wide operating range (-20+70), it's compact and versatile for various applications.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 1200 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of -20+70 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

Typical applications for this sunlight readable tft lcd module include industrial automation control panels, medical monitoring equipment, smart home central controllers, POS terminals, in-vehicle infotainment systems, test and measurement instruments, and other embedded display systems.

Why Choose Sunshine Display?

With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT156CFI-04	-
Size	15.6	inch
Resolution	1920x1080	dots
LCD Type	IPS	-
Viewing Angle	85/85/85/85	o'clock
Luminance	1200	cd/m2
LED Numbers	/	-
LCD Driver IC	/	-
Pin Number	30PIN	-
Module Interface	eDP	-
With/Without TP	Without TP/PCAP	-
Touch Driver IC	USB/I2C	-
Outline Dimension	360X222.14X6.4	-
Active Area	344.16X193.59	mm
Operating Temperature	-20+70	℃
Storage Temperature	-30+80	℃
