Good Price 10.1inch TFT LCD Display with 1024X600 Resolution with 40pin LVDS Interface
Prodcuts Details

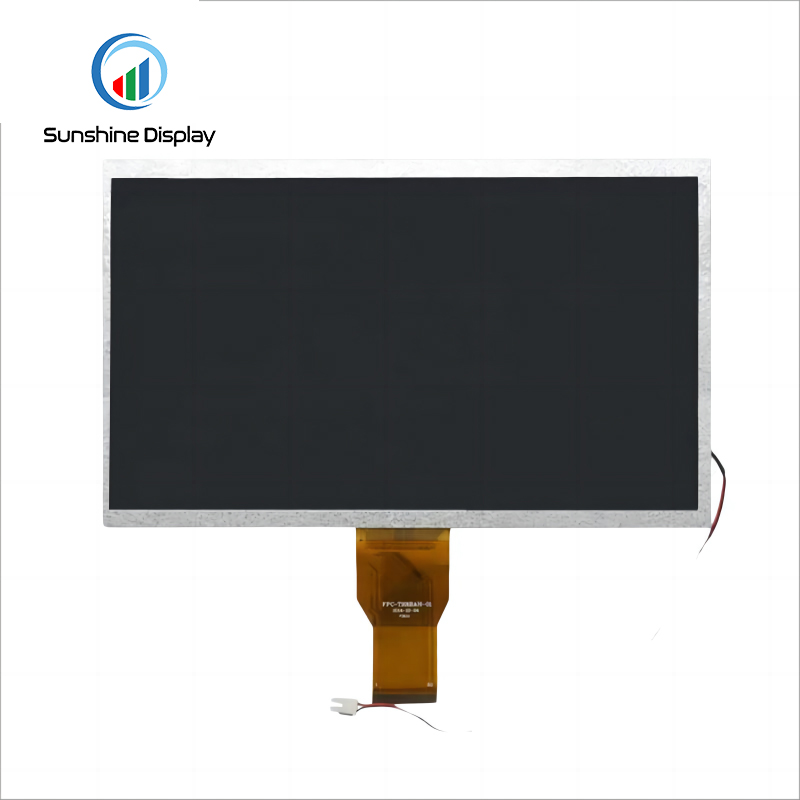

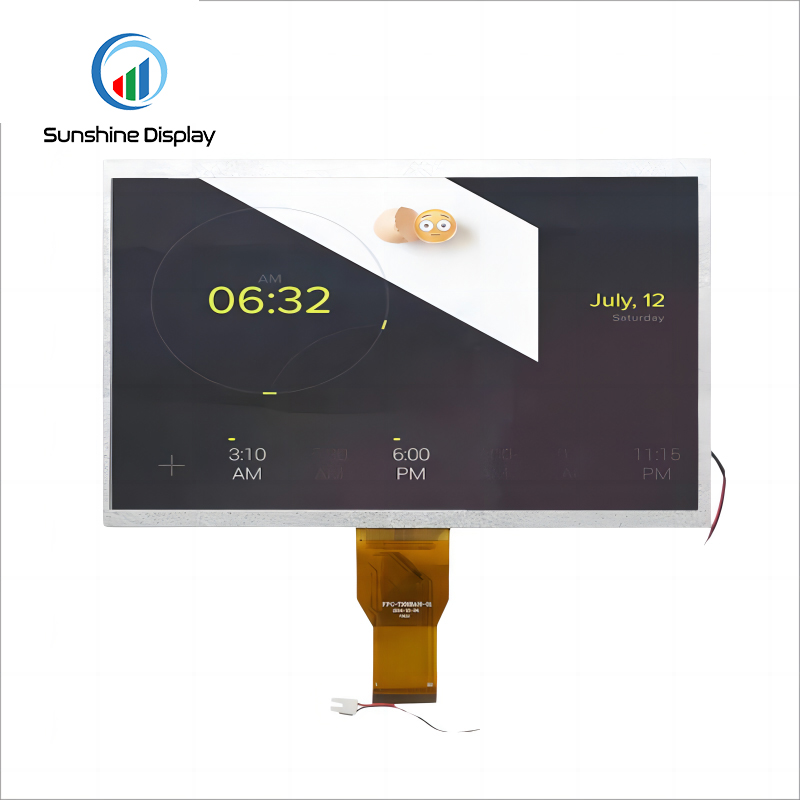

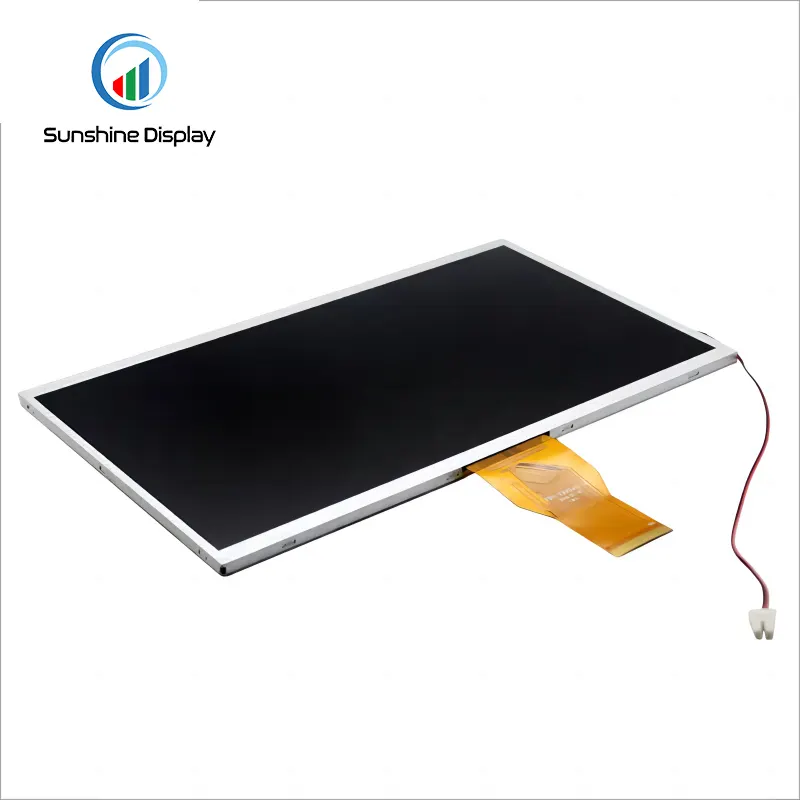

SDT101BWHN-01 10.1 inch Description:
Sunshine Display model SDT101BWHN-01 serials are the standard 10.1 inch color TFT LCD, normally white with transmissive type TN panel, 1024*600 resolution, HX8282+HX8696 driver IC, 8BIT LVDS interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 350 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 350 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 10.1 inch TFT LCD display, 1024*600 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Why Choose Sunshine Display?
With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT101BWHN-01 | - |
| Size | 10.1 | inch |
| Resolution | 1024*600 | dots |
| LCD Type | TN | - |
| Viewing Angle | 12:00 | o'clock |
| Luminance | 350 | cd/m2 |
| LED Numbers | 3S13P | - |
| LCD Driver IC | HX8282+HX8696 | - |
| Pin Number | 40 | - |
| Module Interface | 8BIT LVDS | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 235.00*143.00*5.00 | - |
| Active Area | 222.72*125.28 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
