High brightness 2.4inich IPS TFT LCD ILI9341V LCD Screen with MCU/SPI/RGB interface TFT LCD Module
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

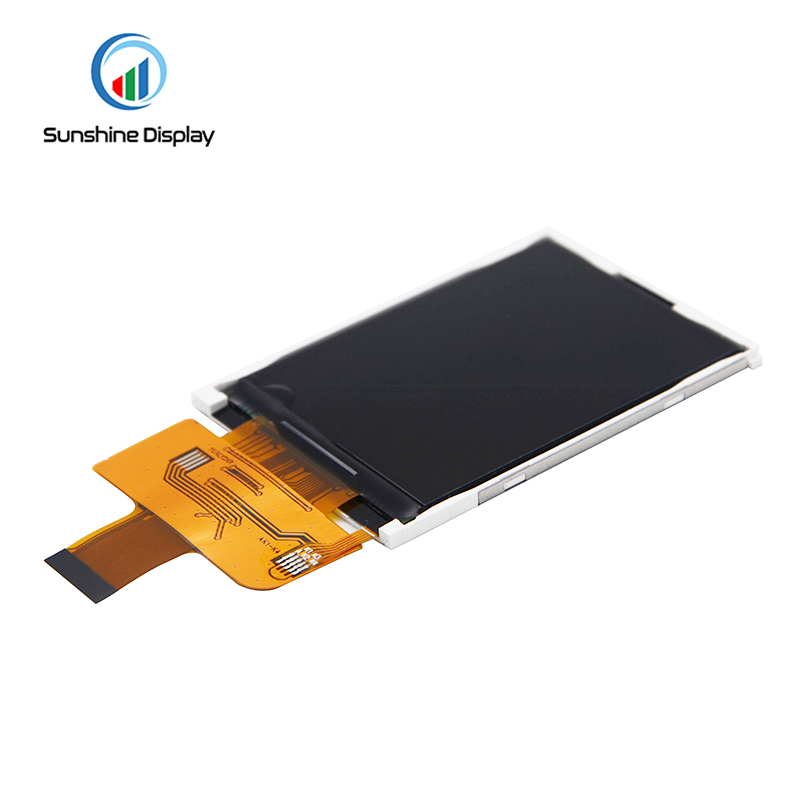

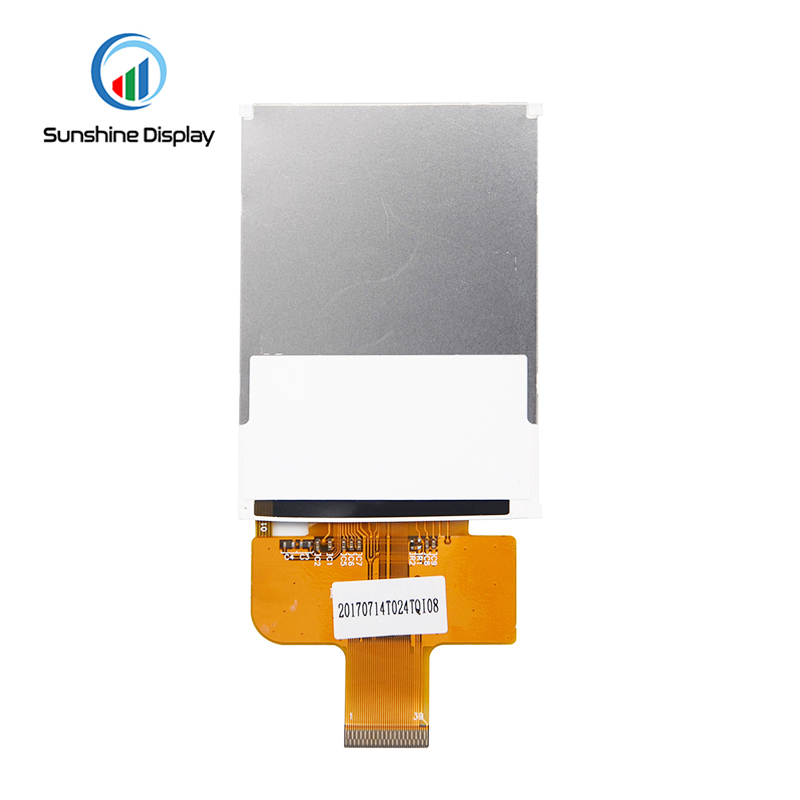

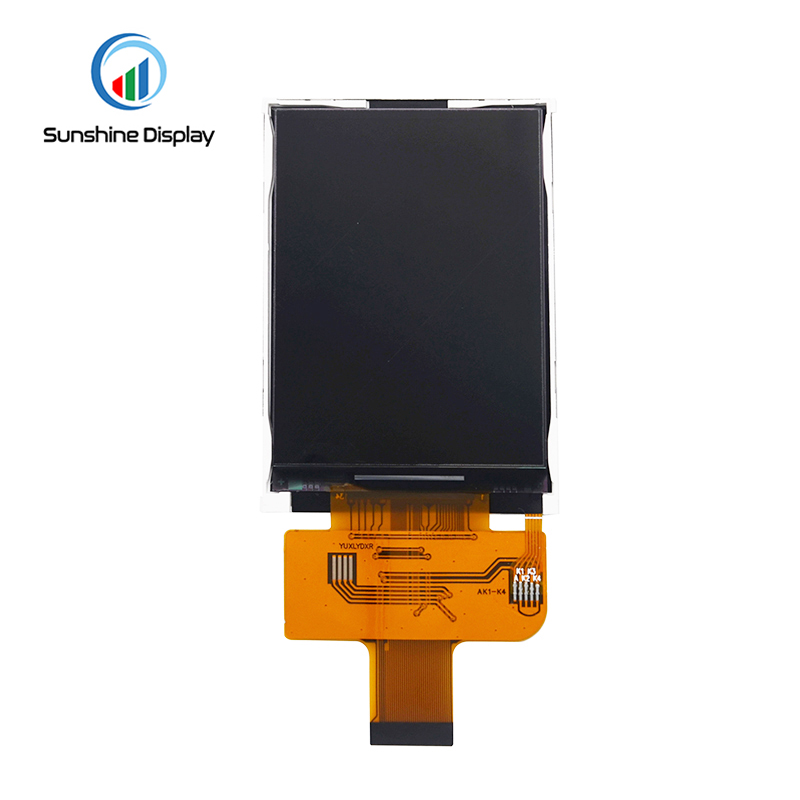

SDT024HQVI-08 2.4 inch Description:
SDT024HQVI-08 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. This product is composed of a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 36.72*48.96 and the native resolution is 240*320. Features of this product are listed in the following table.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 1500 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
- IPS technology provides consistent color and contrast over ultra-wide viewing angles.
Application
Typical applications for this ips tft lcd module include industrial automation control panels, medical monitoring equipment, smart home central controllers, POS terminals, in-vehicle infotainment systems, test and measurement instruments, and other embedded display systems.
Design Resources
Explore integration guides for this display category. Use the model’s technical documentation to confirm exact specifications.
Need model-specific documentation?
Ask about available datasheets and drawings for SDT024HQVI-08.
Specifications
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT024HQVI-08 | - |
| Size | 2.4 | inch |
| Resolution | 240*320 | dots |
| LCD Type | IPS | - |
| Viewing Angle | All | o'clock |
| Luminance | 1500 | cd/m2 |
| LED Numbers | 6P | - |
| LCD Driver IC | ST7789 | - |
| Pin Number | 24 | - |
| Module Interface | MCU/RGB/SPI | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 42.72*59.46*2.45 | - |
| Active Area | 36.72*48.96 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
