5inch TFT LCD Module 800X480 Resolution RGB interface with RTP
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

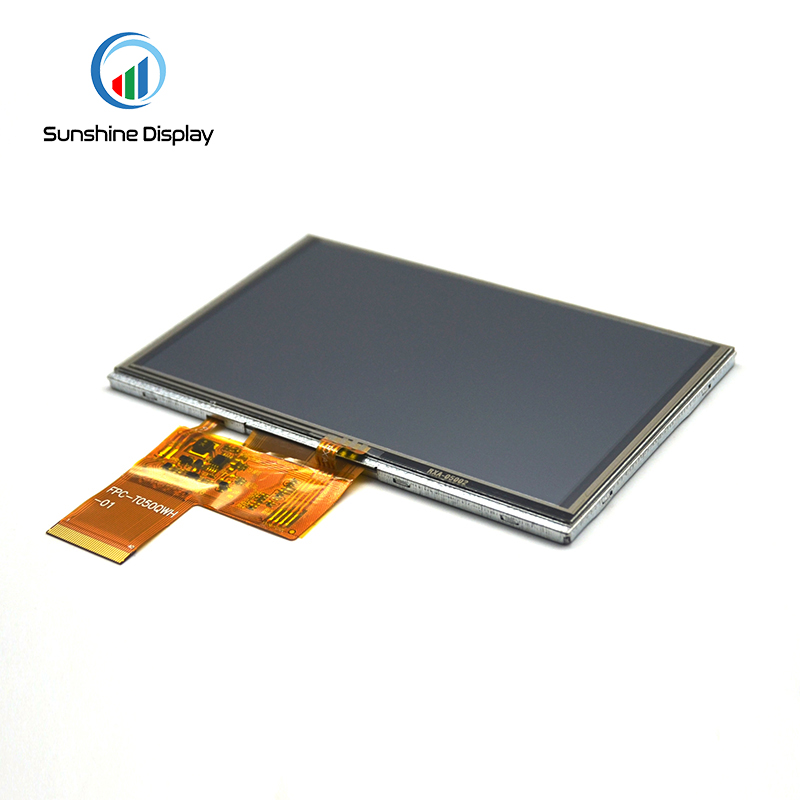

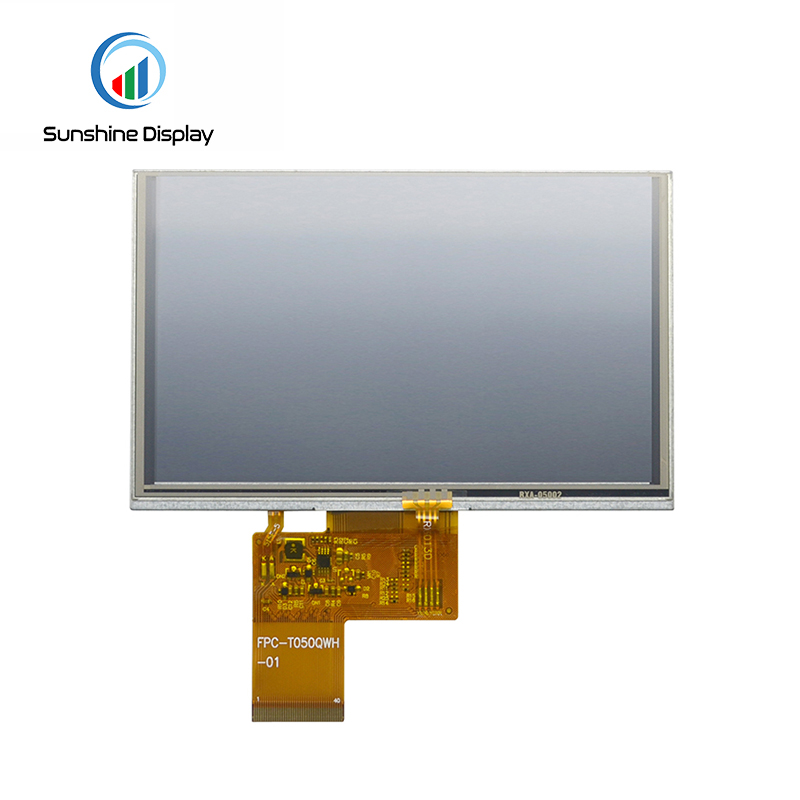

SDT050IWIN-43P 5.0 inch Description:
Sunshine Display model SDT050IWIN-43P serials are the standard 5.0 inch color TFT LCD, normally white with transmissive type TN panel, 800*480 resolution, ILI6122+ILI5960 driver IC, 24BIT RGB interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 240 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 240 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 5.0 inch TFT LCD display, 800*480 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Why Choose Sunshine Display?
With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT050IWIN-43P | - |
| Size | 5.0 | inch |
| Resolution | 800*480 | dots |
| LCD Type | TN | - |
| Viewing Angle | 12:00 | o'clock |
| Luminance | 240 | cd/m2 |
| LED Numbers | 6S2P | - |
| LCD Driver IC | ILI6122+ILI5960 | - |
| Pin Number | 40 | - |
| Module Interface | 24BIT RGB | - |
| With/Without TP | With R-TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 120.70*75.80*4.30 | - |
| Active Area | 108.00*64.80 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
