Wide Temperaturer 4.3inch TFT LCD Display High Brightness 1000cd/m2 Without Touch Screen
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

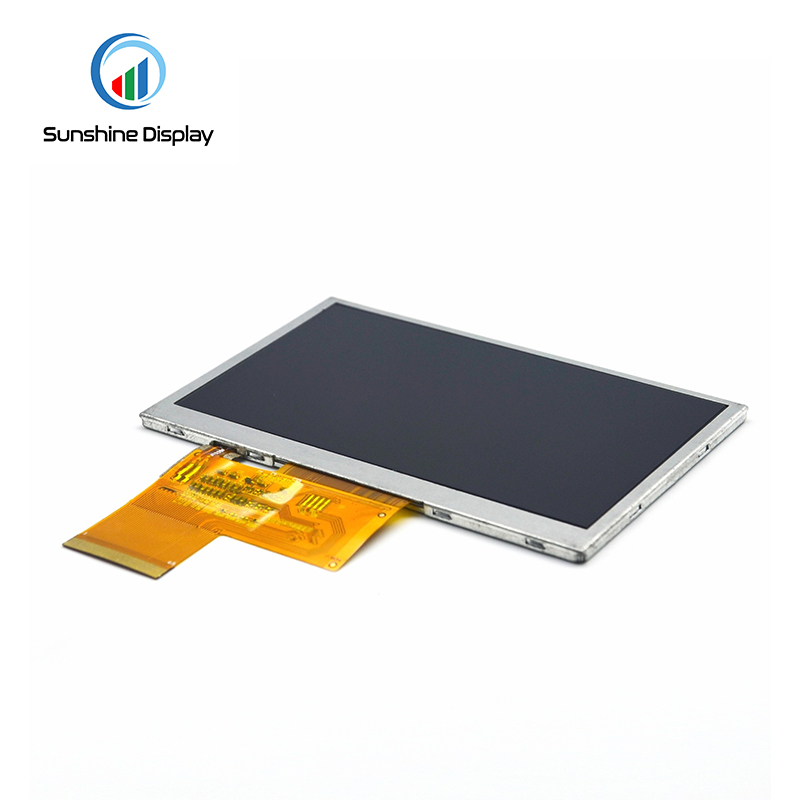

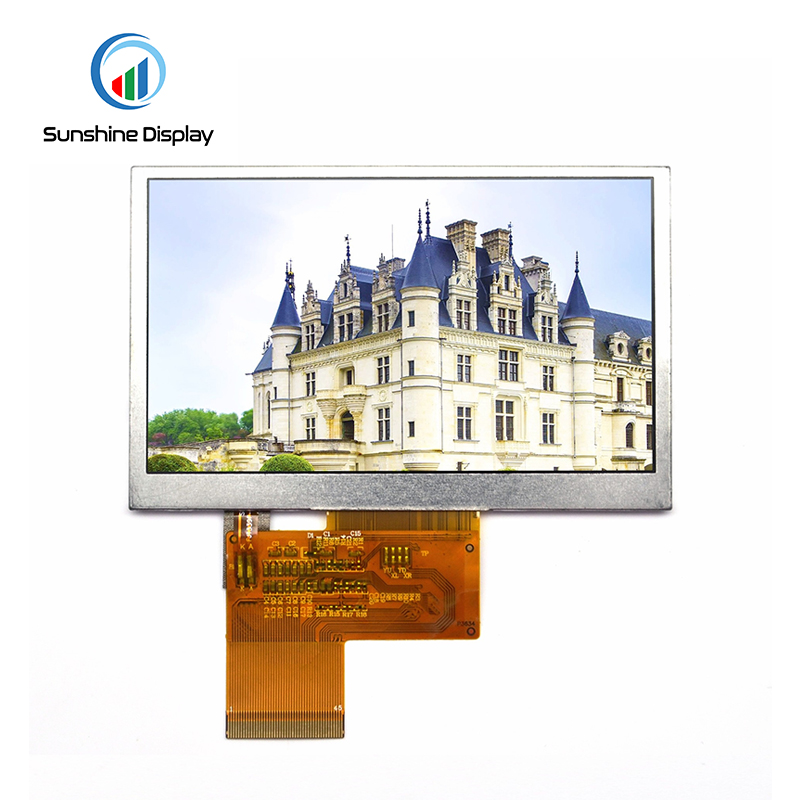

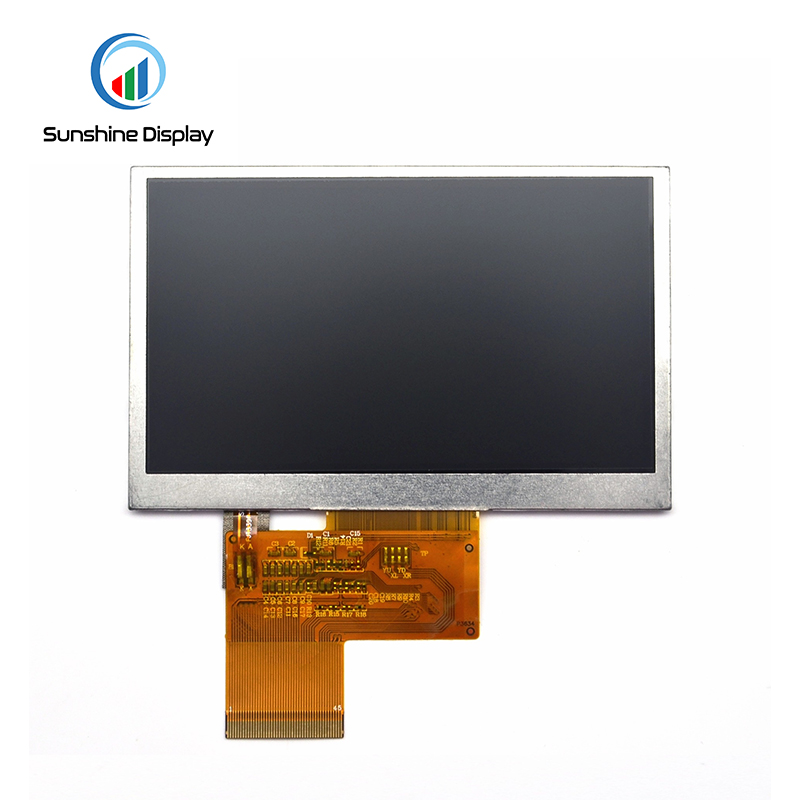

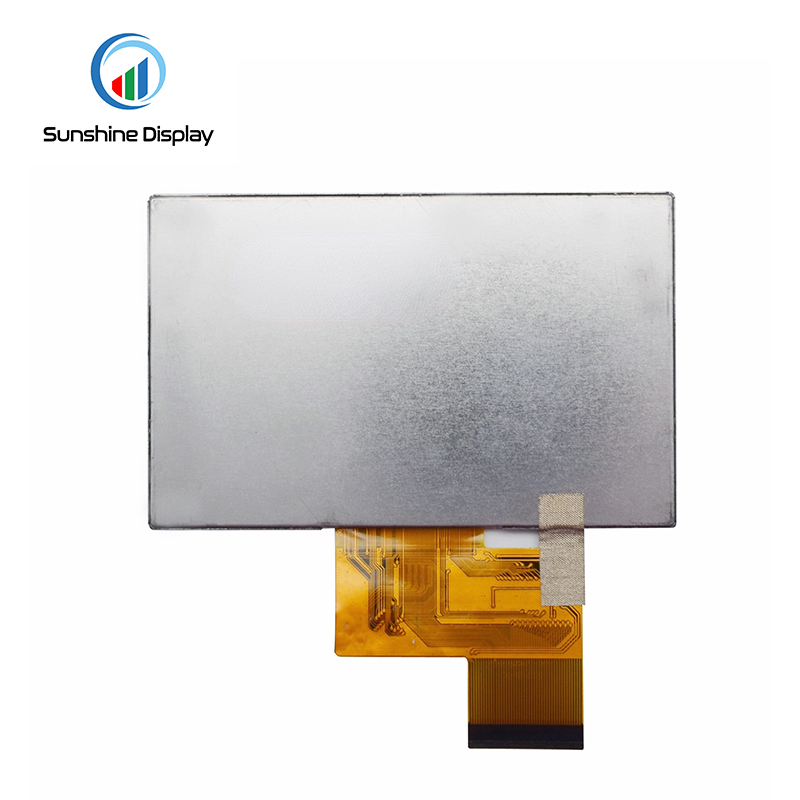

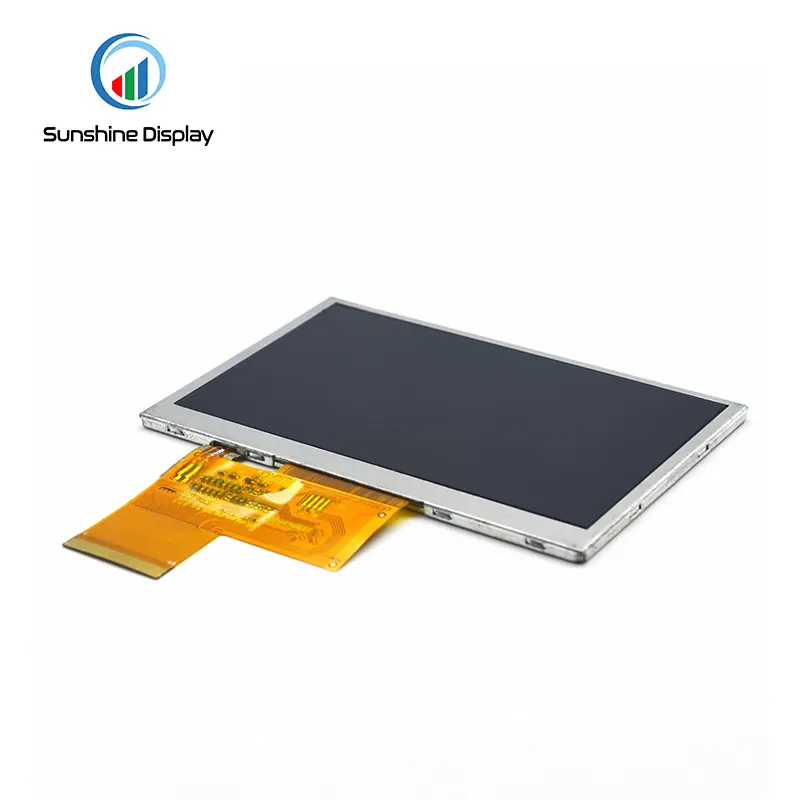

SDT043BPSI-04-W 4.3 inch Description:
The SDT043BPSI-04-W is a 4.3 inch 480x272 24BIT RGB Wide Temperature TFT LCD module. Review the published specifications below to verify display fit and host compatibility.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 1000 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -30~+80 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
- IPS technology provides consistent color and contrast over ultra-wide viewing angles.
Application
Typical applications for this ips tft lcd module include industrial automation control panels, medical monitoring equipment, smart home central controllers, POS terminals, in-vehicle infotainment systems, test and measurement instruments, and other embedded display systems.
Design Resources
Explore integration guides for this display category. Use the model’s technical documentation to confirm exact specifications.
Need model-specific documentation?
Ask about available datasheets and drawings for SDT043BPSI-04-W.
Specifications
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT043BPSI-04-W | - |
| Size | 4.3 | inch |
| Resolution | 480*272 | dots |
| LCD Type | IPS | - |
| Viewing Angle | All | o'clock |
| Luminance | 1000 | cd/m2 |
| LED Numbers | 8S2P | - |
| LCD Driver IC | ST7283 | - |
| Pin Number | 40 | - |
| Module Interface | 24BIT RGB | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 105.50*67.20*2.95 | - |
| Active Area | 95.04*53.86 | mm |
| Operating Temperature | -30~+80 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
