3.2inch 240x320 TFT LCD Module With ZIF FPC Connector With Resistive Touch Screen

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

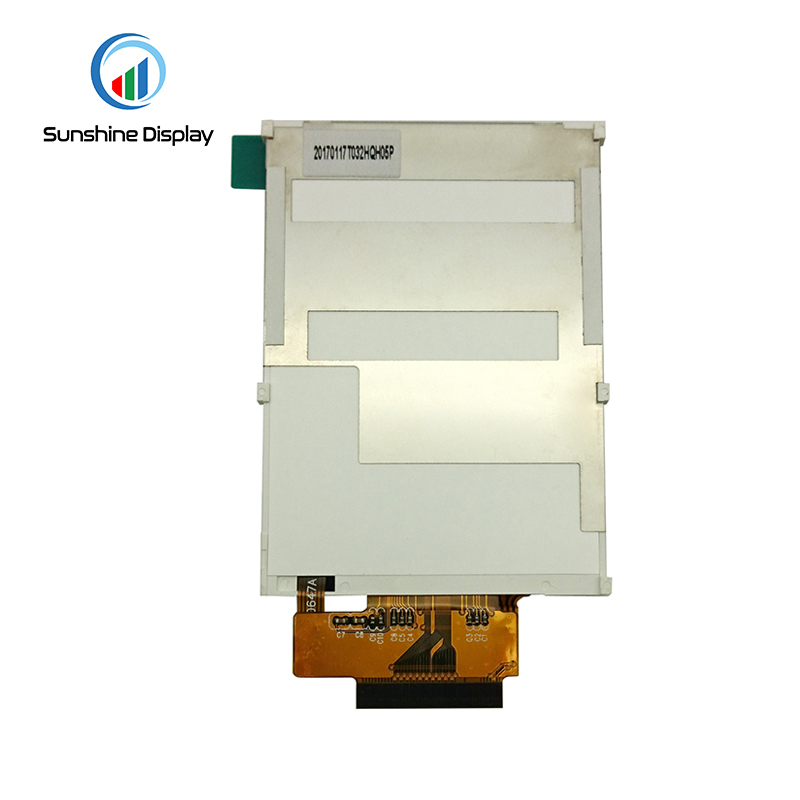

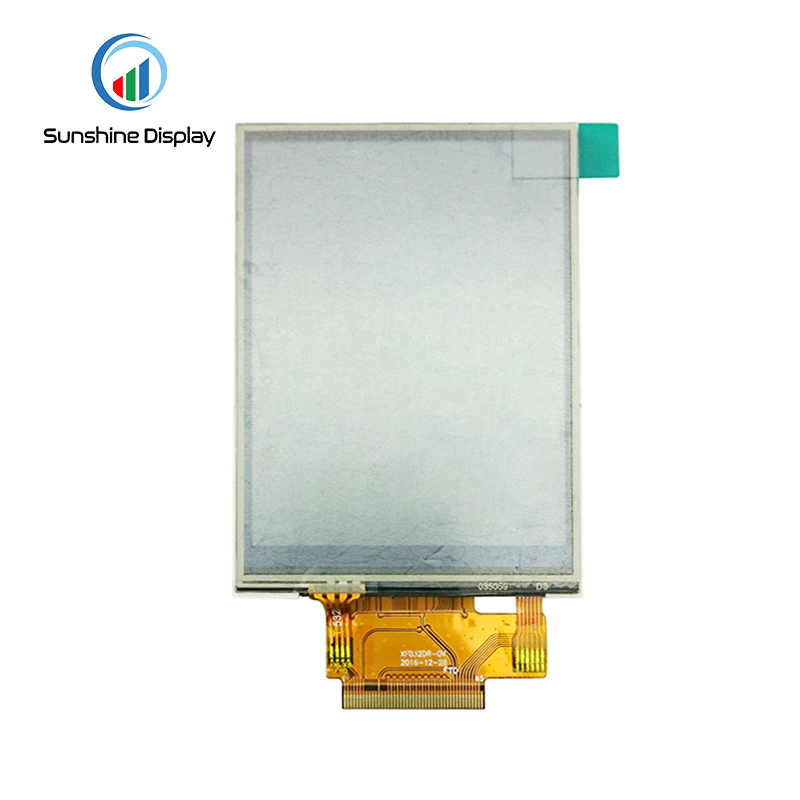

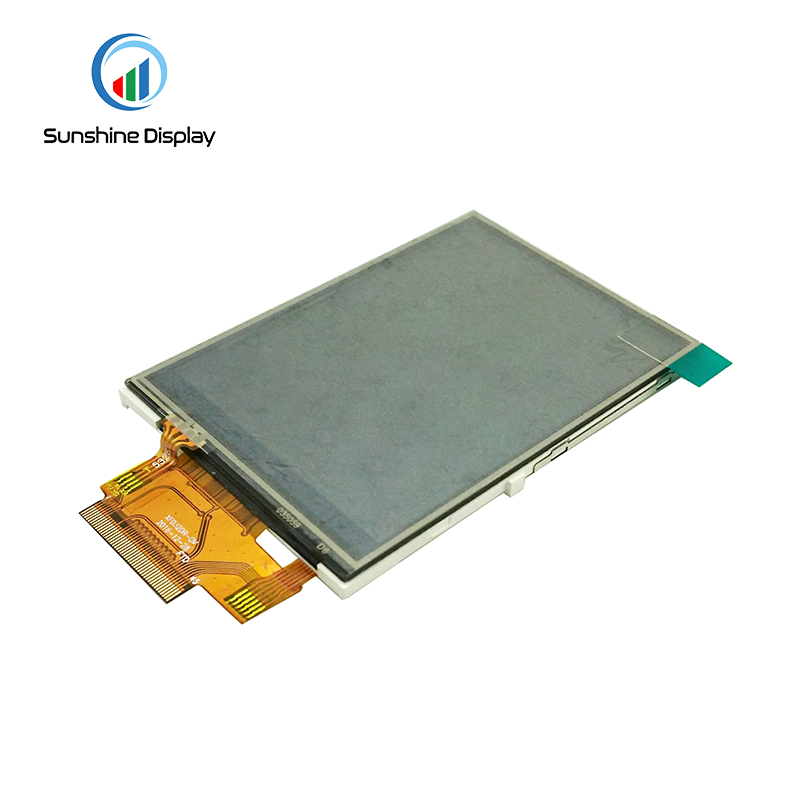

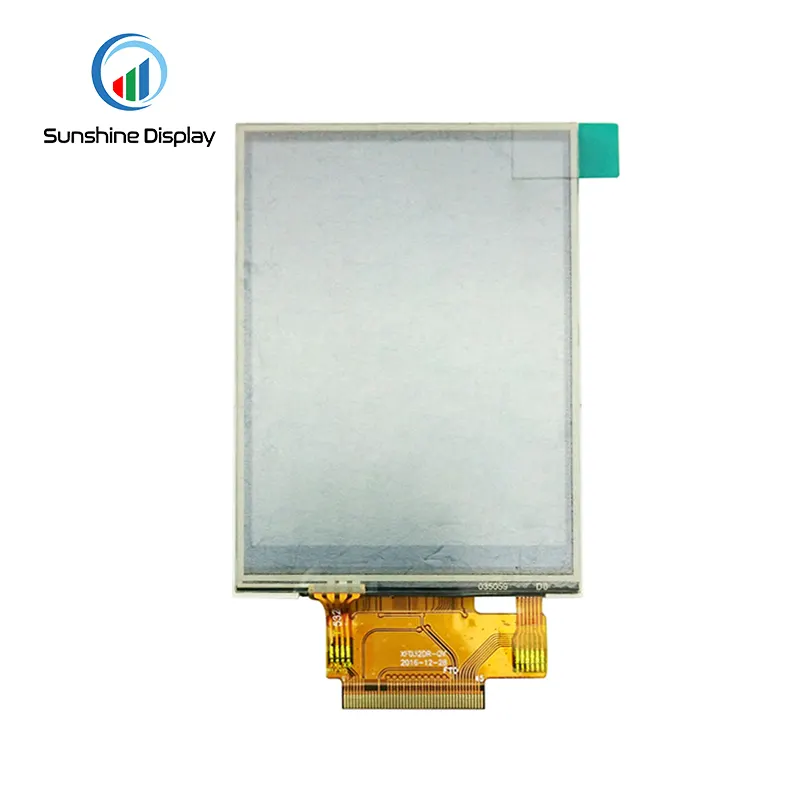

SDT032HQH-05P 3.2 inch Description:

Sunshine Display model SDT032HQH-05P serials are the standard 3.2 inch color TFT LCD, normally white with transmissive type TN panel, 240*320 resolution, ST7789V driver IC, MCU interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 250 nits.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 250 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

For this 3.2 inch TFT LCD display, 240*320 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.

Why Choose Sunshine Display?

With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT032HQH-05P	-
Size	3.2	inch
Resolution	240*320	dots
LCD Type	TN	-
Viewing Angle	12:00	o'clock
Luminance	250	cd/m2
LED Numbers	6P	-
LCD Driver IC	ST7789V	-
Pin Number	40	-
Module Interface	MCU	-
With/Without TP	Without TP	-
Touch Driver IC		-
Outline Dimension	55.04x77.7x3.77	-
Active Area	48.6*64.8	mm
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃
