Hot 3.2inch TFT LCD Wide Viewng Angle LCD Display MCU Interface ILI9341V IC LCD Panel

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

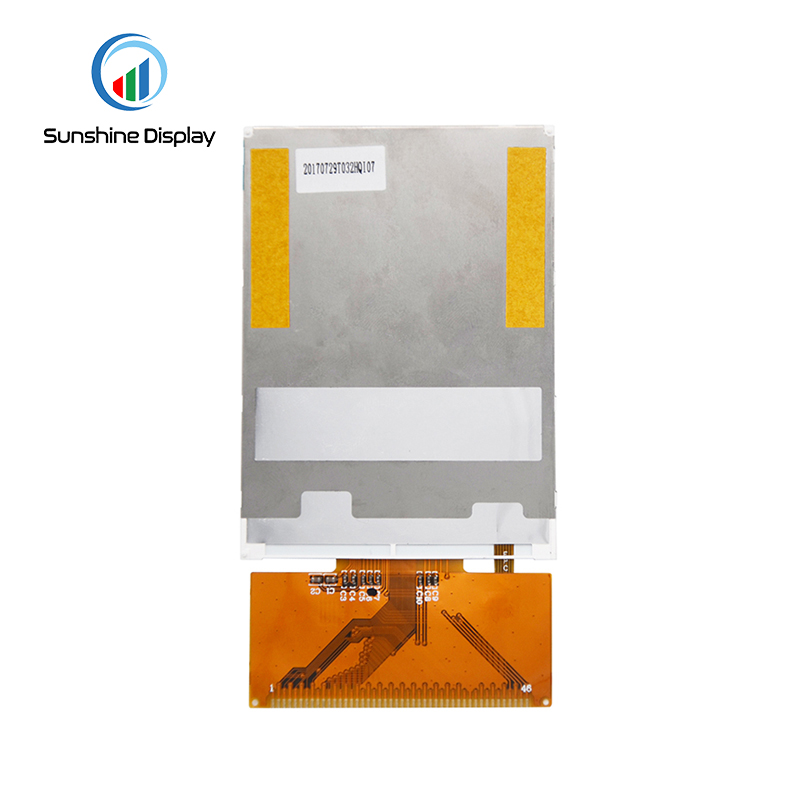

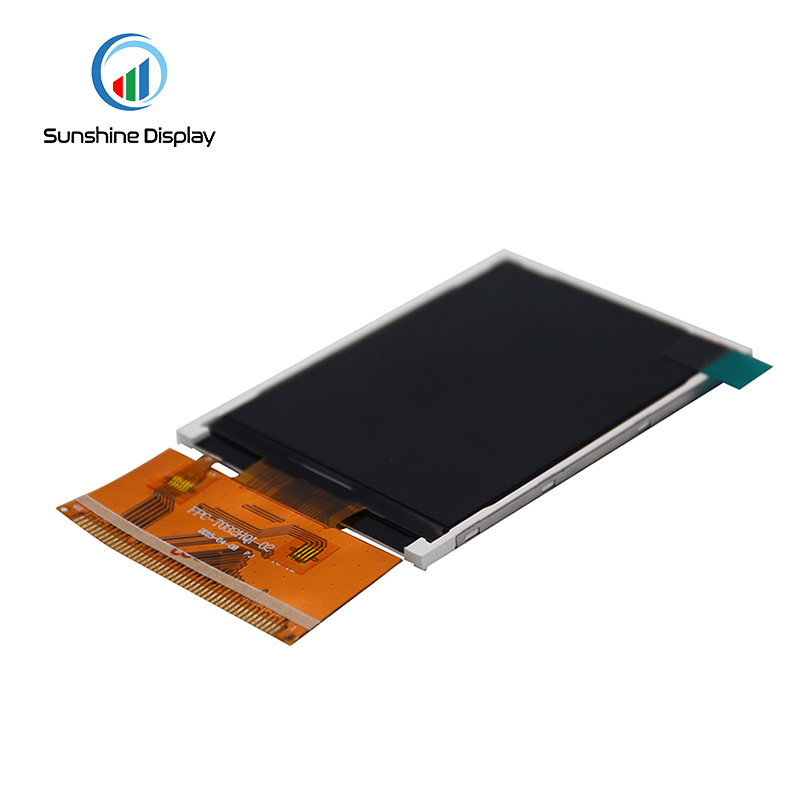

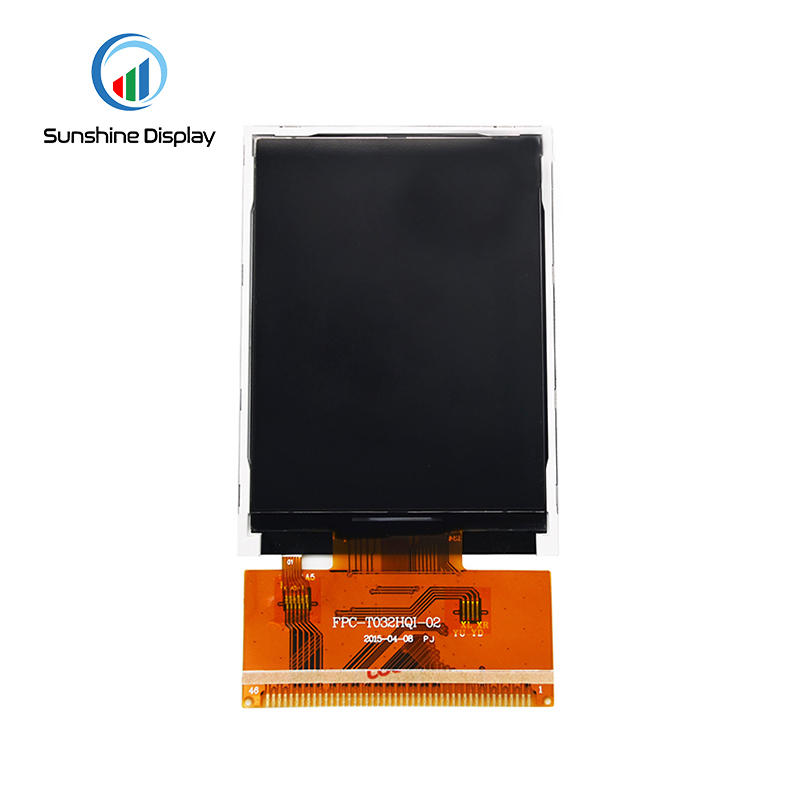

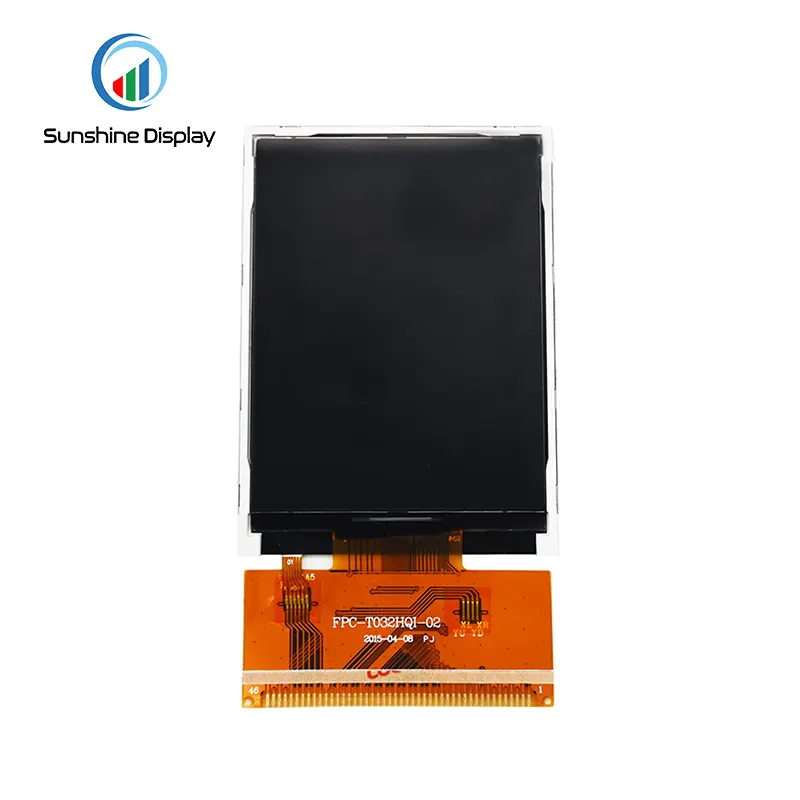

SDT032HQI-02 3.2 inch Description:

Sunshine Display model SDT032HQI-02 serials are the standard 3.2 inch color TFT LCD, normally white with transmissive type TN panel, 240*320 resolution, ILI9341V driver IC, MCU interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 280 nits.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 280 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

For this 3.2 inch TFT LCD display, 240*320 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.

Why Choose Sunshine Display?

With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT032HQI-02	-
Size	3.2	inch
Resolution	240*320	dots
LCD Type	TN	-
Viewing Angle	06:00	o'clock
Luminance	280	cd/m2
LED Numbers	6P	-
LCD Driver IC	ILI9341V	-
Pin Number	40	-
Module Interface	MCU	-
With/Without TP	Without TP	-
Touch Driver IC		-
Outline Dimension	55.0477.72.57	-
Active Area	48.6*64.8	mm
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃
