2.2inch 176X220 color lcd screen MCU interface TFT LCD Module
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

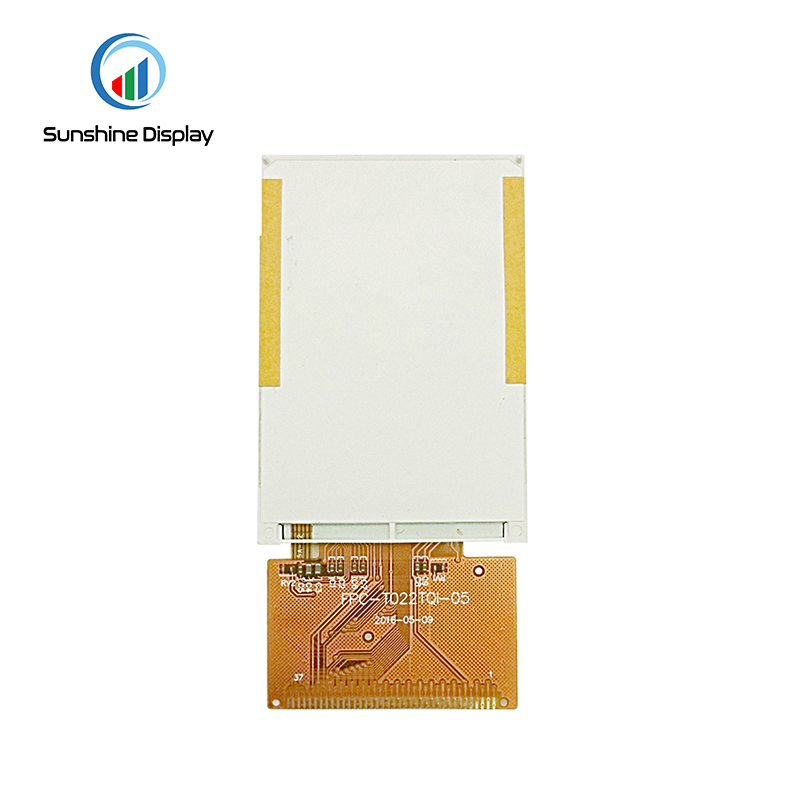

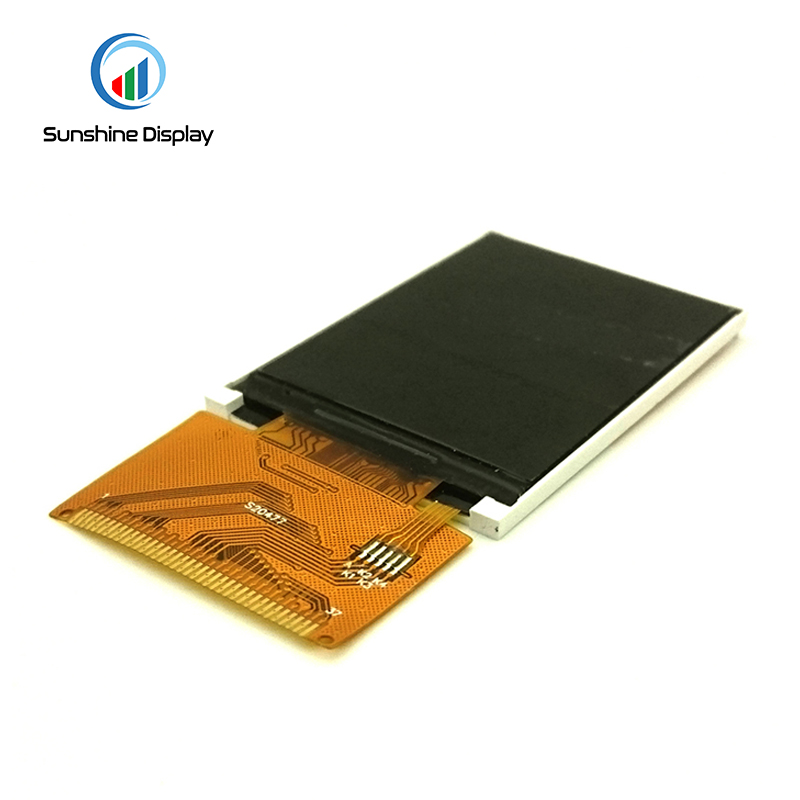

SDT022HFH-01 2.2 inch Description:
Sunshine Display model SDT022HFH-01 serials are the standard 2.2 inch color TFT LCD, normally white with transmissive type TN panel, 176*220 resolution, HX8340B driver IC, 8BIT MCU interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 240 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 240 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 2.2 inch TFT LCD display, 176*220 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Specifications
Need the latest datasheet or drawing? Request documentation for SDT022HFH-01.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT022HFH-01 | - |
| Size | 2.2 | inch |
| Resolution | 176*220 | dots |
| LCD Type | TN | - |
| Viewing Angle | 06:00 | o'clock |
| Luminance | 240 | cd/m2 |
| LED Numbers | 4S | - |
| LCD Driver IC | HX8340B | - |
| Pin Number | 20 | - |
| Module Interface | 8BIT MCU | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 42.30*57.50*2.45 | - |
| Active Area | 34.85*43.56 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
