2.76inch Round TFT LCD Module 480x480 Resolution

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

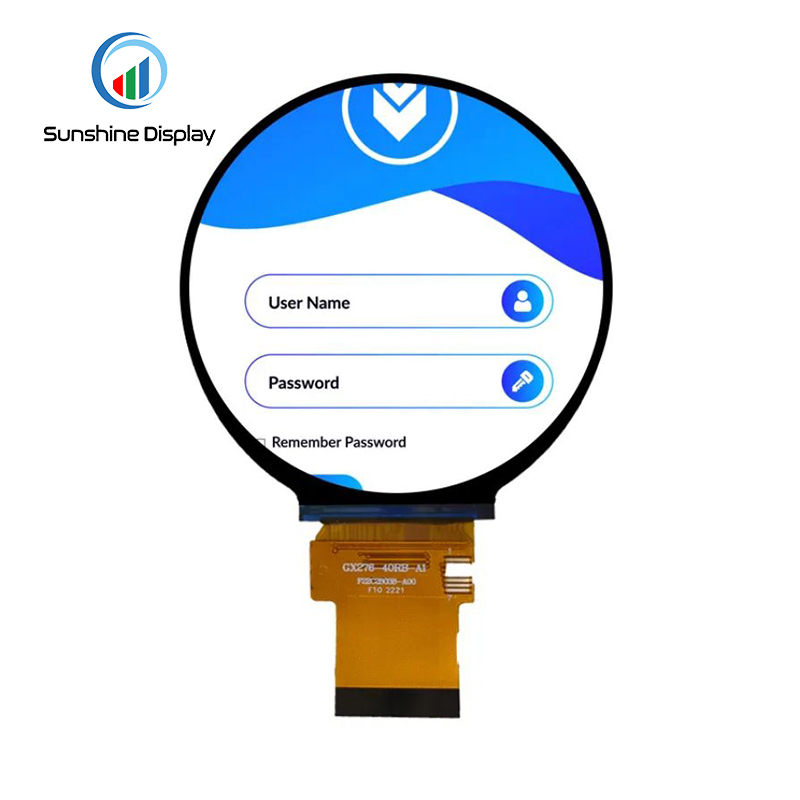

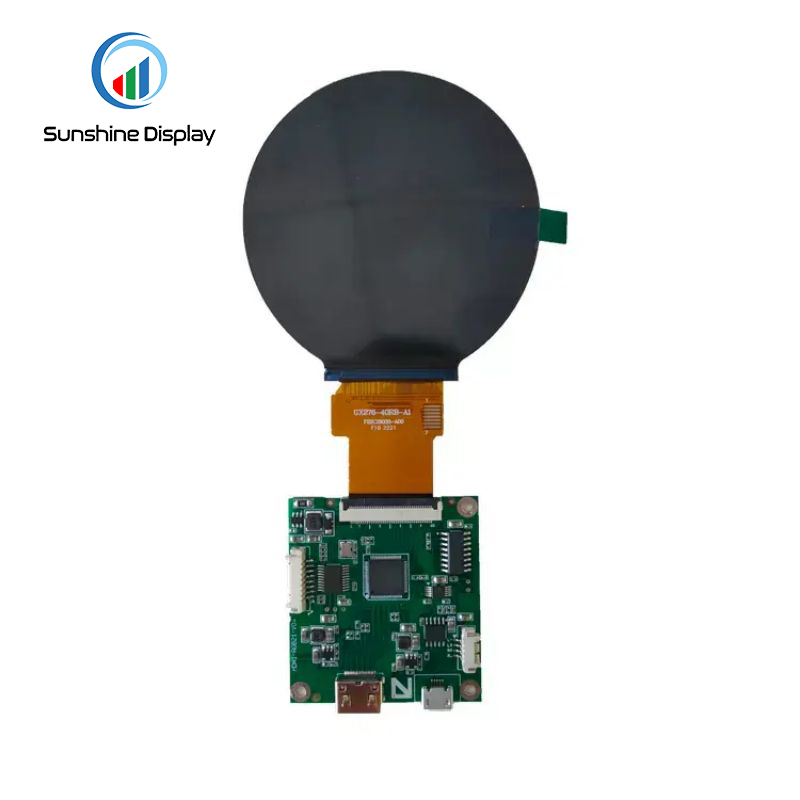

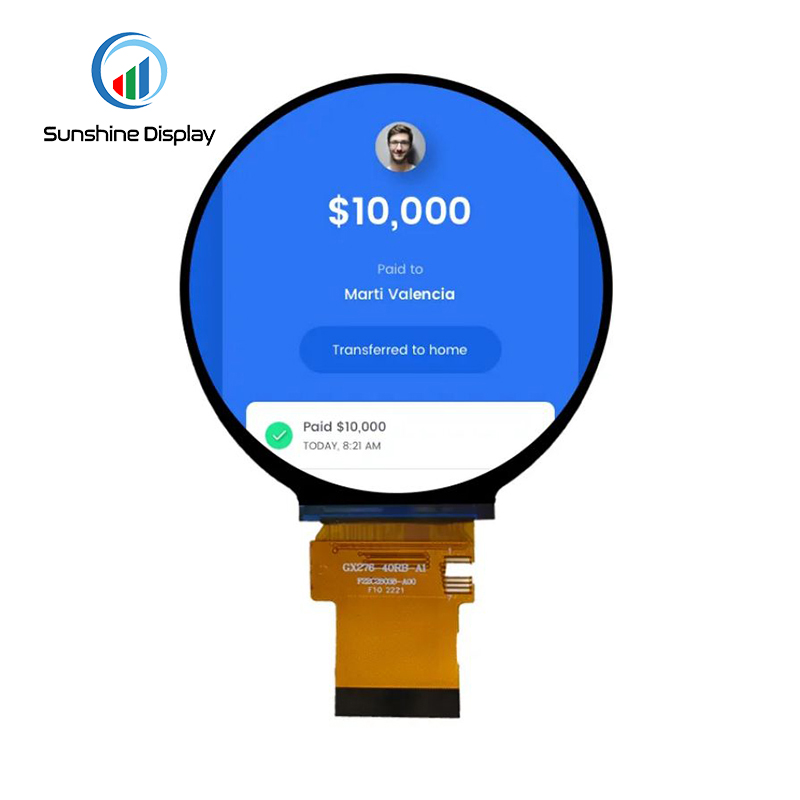

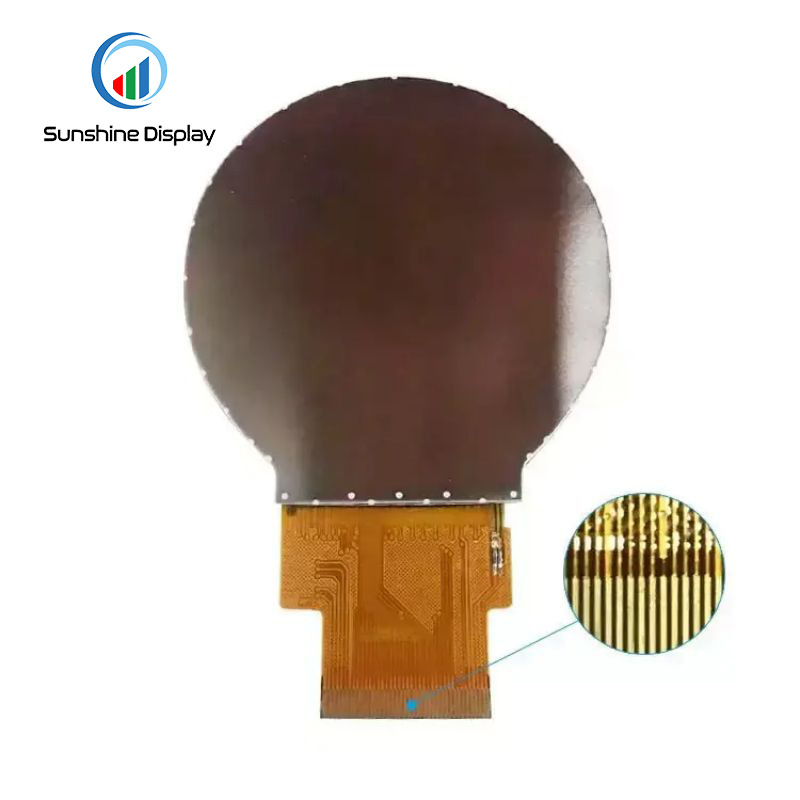

SDT0276BCSA-01 2.76 inch Description:

SDT0276BCSA-01 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 70.13*70.13 mm diagonally measured active area with 480*480 resolution.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 450 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

1. Office Electronic Equipment: money counting machine, office phone set, copying machine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine.
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.

Why Choose Sunshine Display?

With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT0276BCSA-01	-
Size	2.76	inch
Resolution	480*480	dots
LCD Type	IPS	-
Viewing Angle	AII	o'clock
Luminance	450	cd/m2
LED Numbers	4P	-
LCD Driver IC	ST7701S	-
Pin Number	40	-
Module Interface	RGB	-
With/Without TP	Without TP	-
Touch Driver IC		-
Outline Dimension	73.0376.482.3	-
Active Area	70.13*70.13	mm
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃
