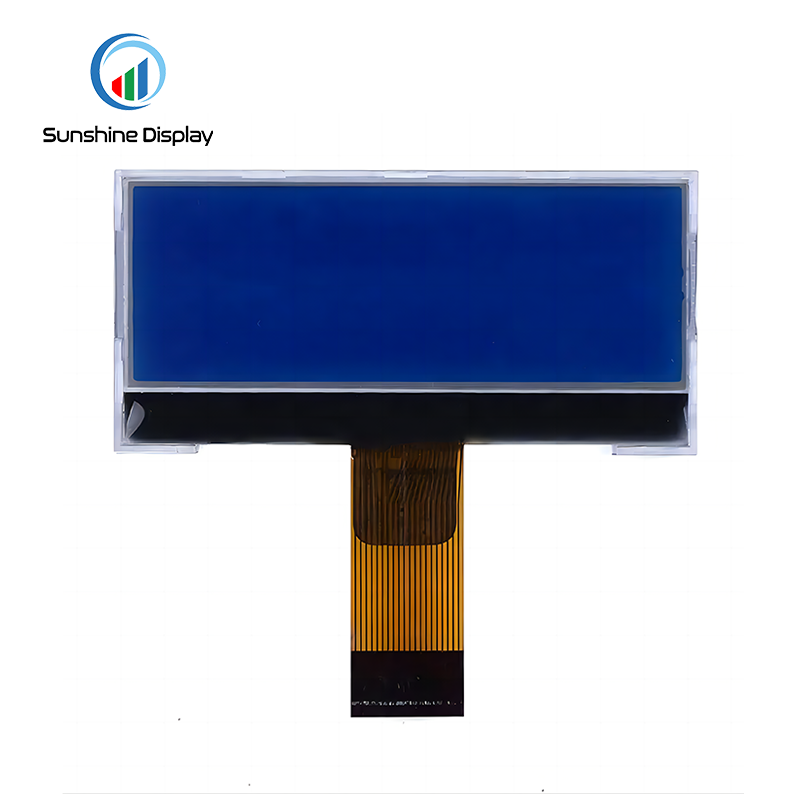

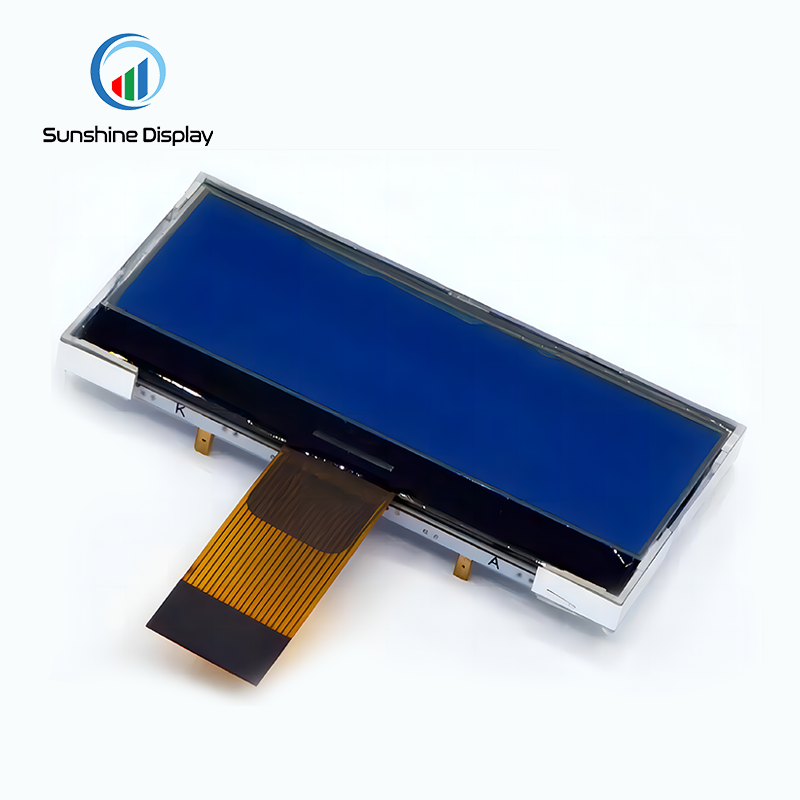

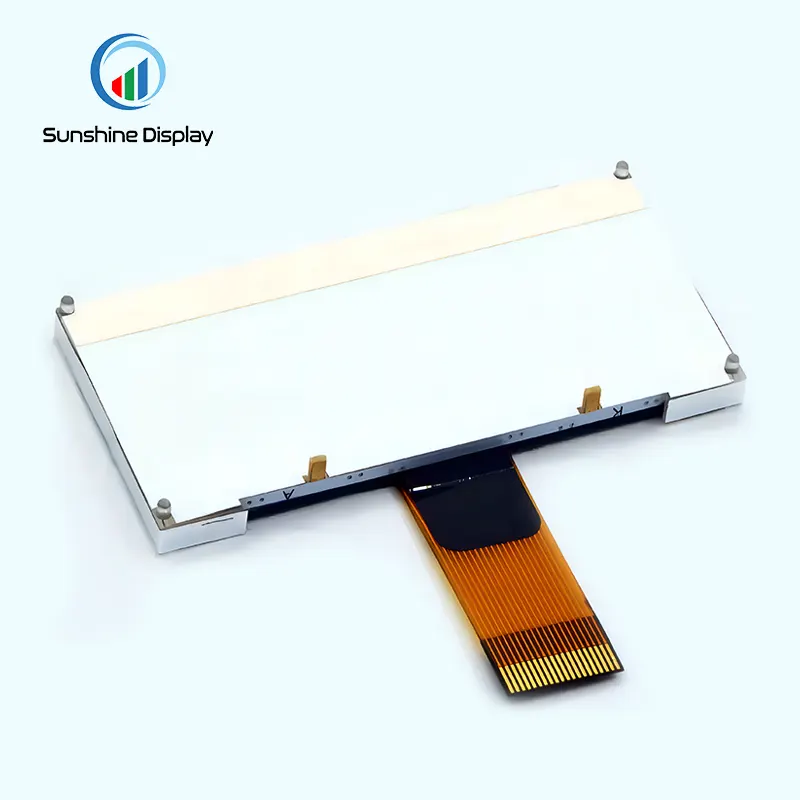

Monohcrome LCD Display 192x64 COG LCD Module with Backlight

Name: SDG19264B COG LCD Module
Brand: Sunshine Display
SKU: SDG19264B

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

SDG19264B Description:

The SDG19264B is a 192x64 COG Graphic LCD module. Review the published specifications below to verify display fit and host compatibility.

Key Features & Advantages

LCD type and dot matrix: 192x64 dots, display mode and viewing optimized for monochrome applications.
Wide operating temperature range (-20 ~ +70°C) for reliable operation in industrial and outdoor environments.
Long module lifetime (50,000-100,000) for reduced maintenance and total cost of ownership.
Compact interface: 8 pins, driver IC on glass (COG) for slim profile and easy integration.
Reflective or transmissive options; positive/negative display modes available to suit different lighting conditions.
Customization support: LCD type, interface, size, display mode, and viewing area to meet your project requirements.

Application

The energy meter, digital meter, oiling machine, crane, and air conditioner are customized for your device.

ENGINEERING GUIDELCD Voltage Compatibility

Need model-specific documentation?

Ask about available datasheets and drawings for SDG19264B.

Request documentation

Specifications

Feature	Specification	Unit
Brand	Sunshine Display	-
Dot Matrix	192x64	-
Model Number	SDG19264B	-
Display Type	STN-Blue, STN-YG FSTN	-
Outline Dimension	1004811.5	mm
Viewing Area	84*32	mm
IC	IST3020	-
Pin Number	8	-
Backlight	White BL	-
Operating Temperature	-20 ~ +70°C	℃
Storage Temperature	-30 ~ +80°C	℃
Module lifetime	50,000-100,000	Hours

Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
