High Brightness 5.7inch Color TFT LCD Screen 640X480 Resolution with 6 Oclock Factory Sales Directly
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

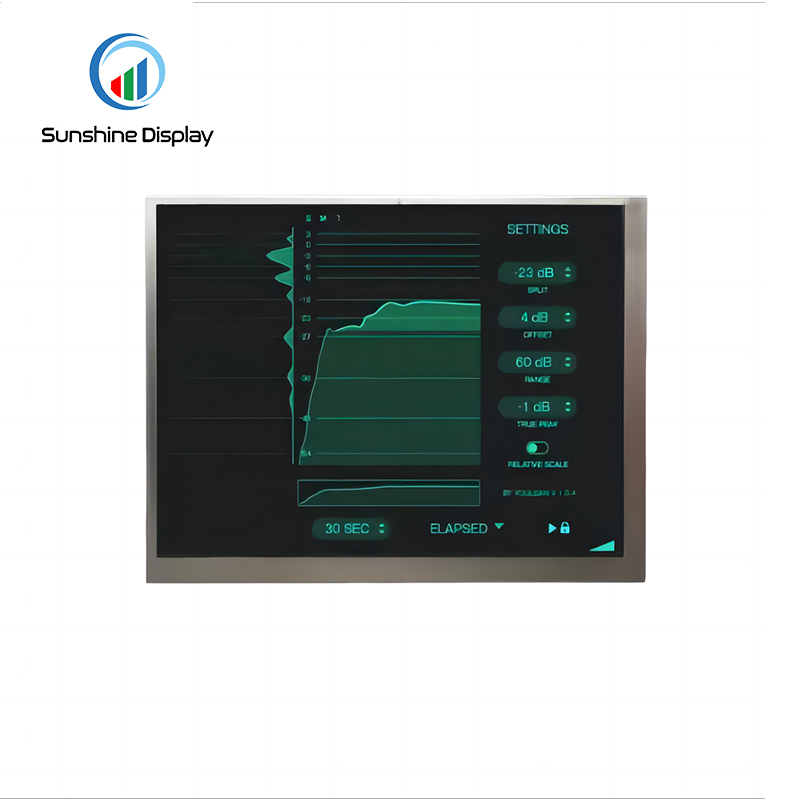

SDT057BVGH-01 5.7 inch Description:
The SDT057BVGH-01 is a 5.7 inch TFT LCD with 16.7M colors, 640*480 resolution, and 700 cd/m² brightness. Featuring an all-angle viewing experience, -- interface, and a wide operating range (-20~+70), it's compact and versatile for various applications.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 700 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
Typical applications for this sunlight readable tft lcd module include industrial automation control panels, medical monitoring equipment, smart home central controllers, POS terminals, in-vehicle infotainment systems, test and measurement instruments, and other embedded display systems.
Design Resources
Explore integration guides for this display category. Use the model’s technical documentation to confirm exact specifications.
Need model-specific documentation?
Ask about available datasheets and drawings for SDT057BVGH-01.
Specifications
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT057BVGH-01 | - |
| Size | 5.7 | inch |
| Resolution | 640*480 | dots |
| LCD Type | TN | - |
| Viewing Angle | 06:00 | o'clock |
| Luminance | 700 | cd/m2 |
| LED Numbers | 3S7P | - |
| LCD Driver IC | HX8250-A01*2+HX8678B*1 | - |
| Pin Number | 40 | - |
| Module Interface | 18BIT RGB | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 127.00*98.43*5.85 | - |
| Active Area | 115.20*86.40 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
