Sunlight Readable 5inch TFT LCD Modules with 640x480 Resolution
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

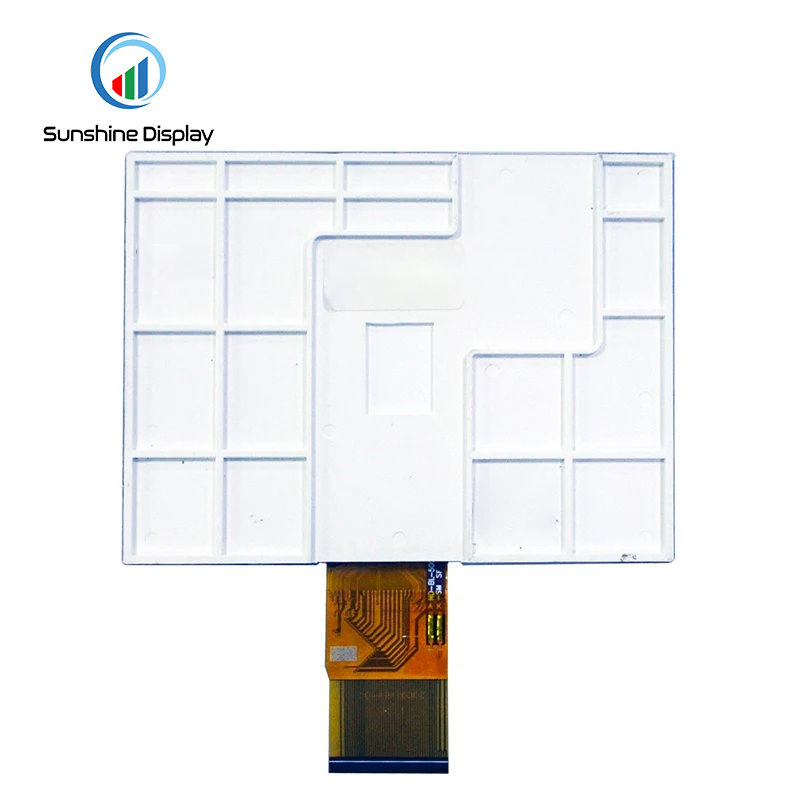

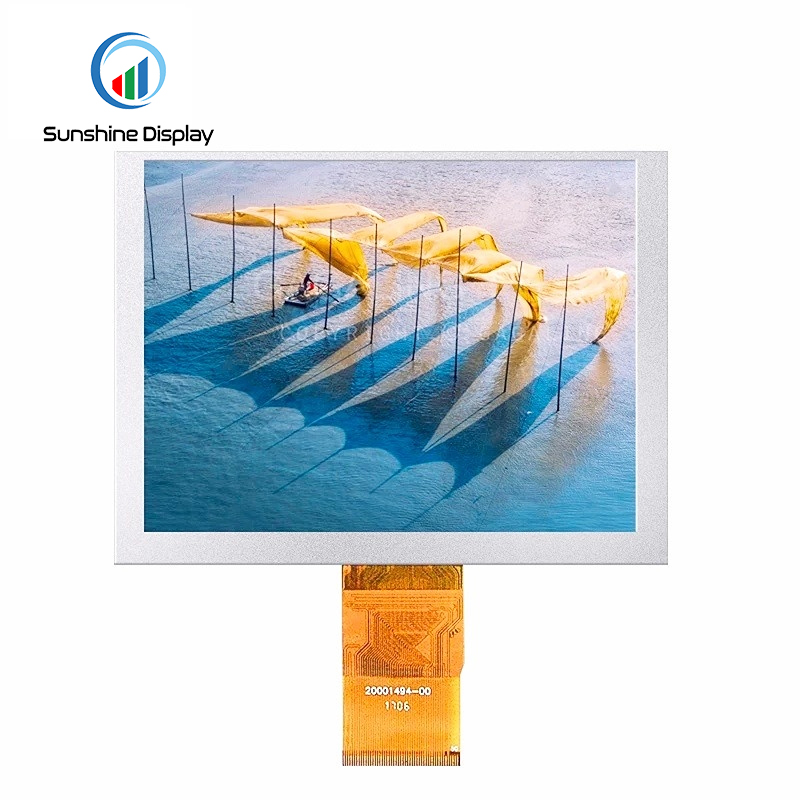

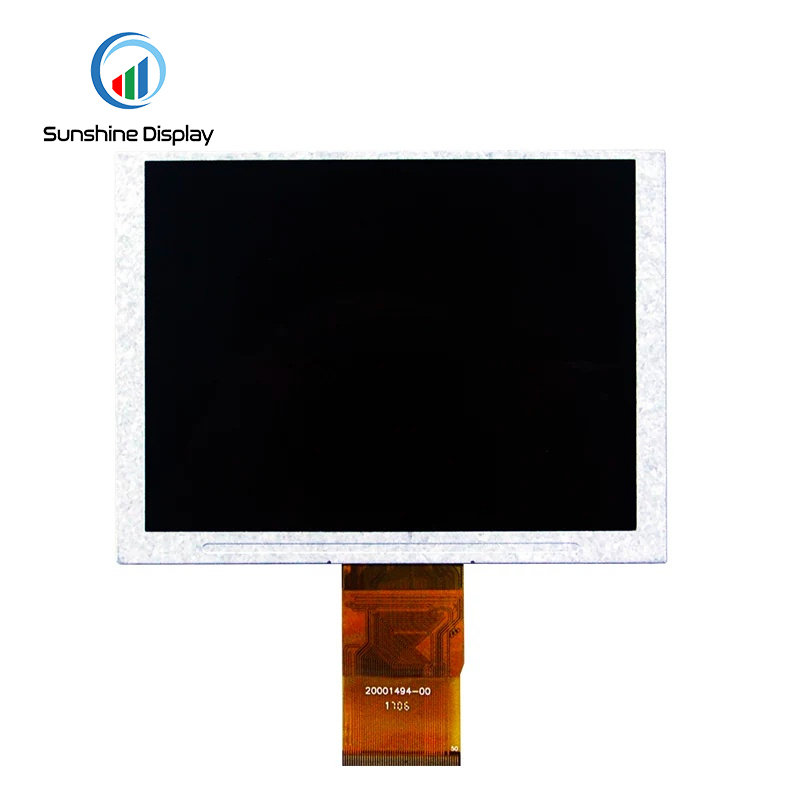

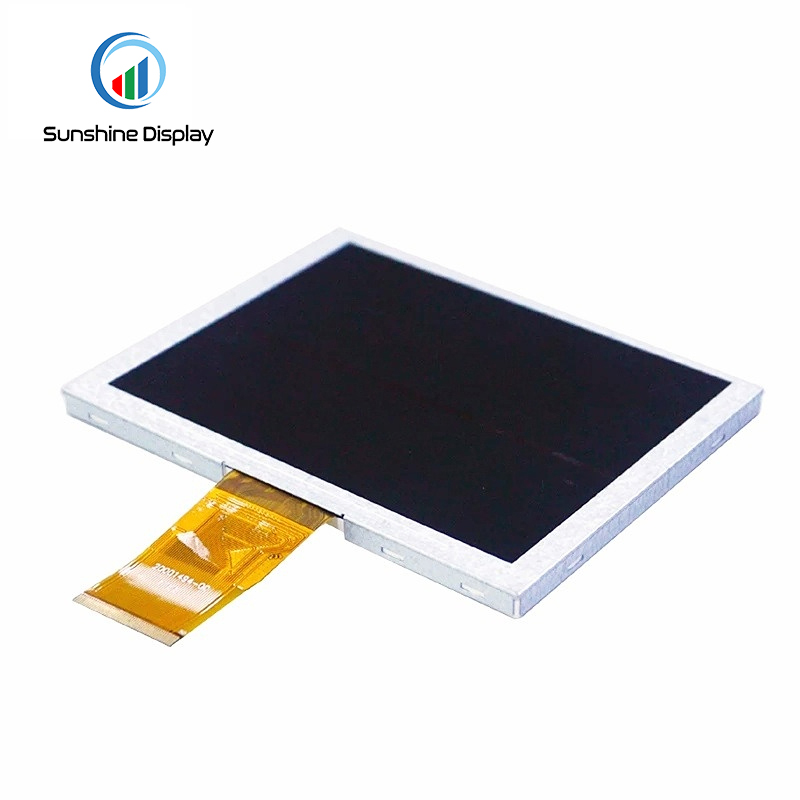

SDT050QVGH-07 5.0 inch Description:
SDT050QVGH-07 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. This product is composed of a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 101.57X76.18 and the native resolution is 640*480. Features of this product are listed in the following table.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 800 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
- IPS technology provides consistent color and contrast over ultra-wide viewing angles.
Application
Typical applications for this ips tft lcd module include industrial automation control panels, medical monitoring equipment, smart home central controllers, POS terminals, in-vehicle infotainment systems, test and measurement instruments, and other embedded display systems.
Why Choose Sunshine Display?
With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT050QVGH-07 | - |
| Size | 5.0 | inch |
| Resolution | 640*480 | dots |
| LCD Type | IPS | - |
| Viewing Angle | All | o'clock |
| Luminance | 800 | cd/m2 |
| LED Numbers | 3S6P | - |
| LCD Driver IC | N.A | - |
| Pin Number | 50 | - |
| Module Interface | 24bits RGB | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 117.65*88.43*5.7 | - |
| Active Area | 101.57X76.18 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
