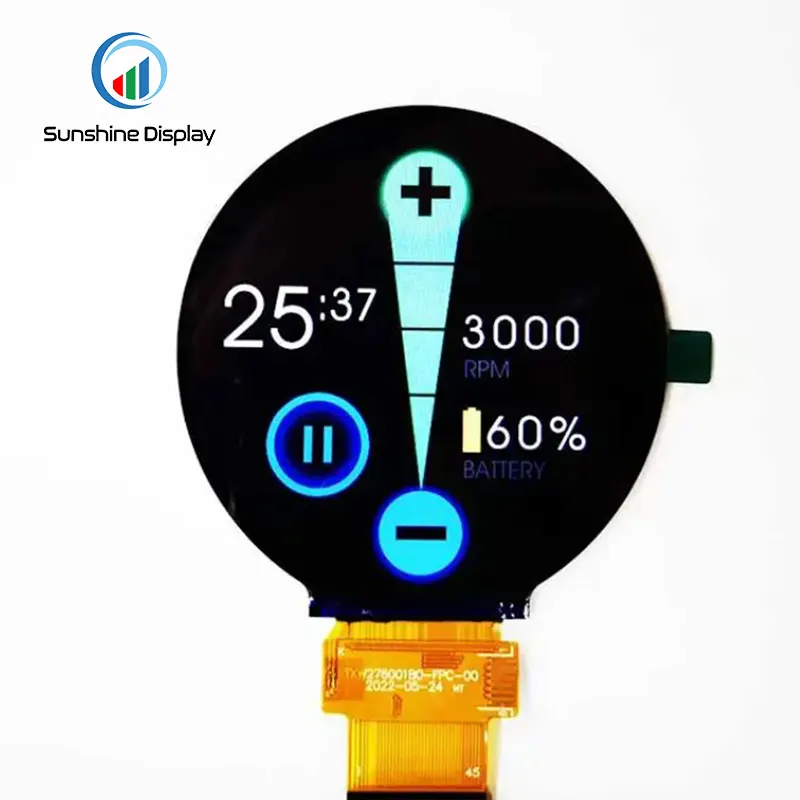

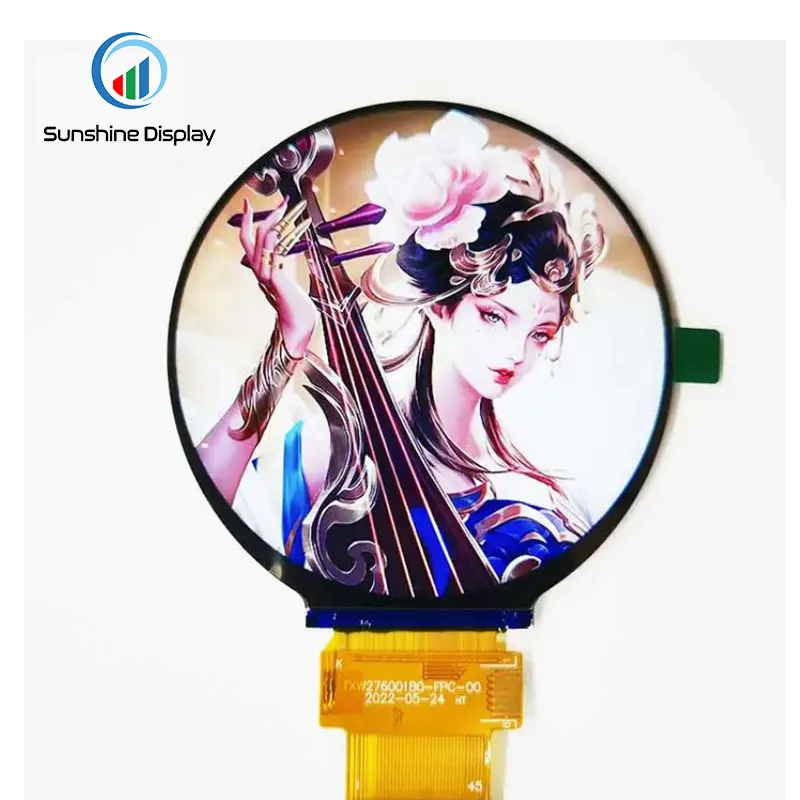

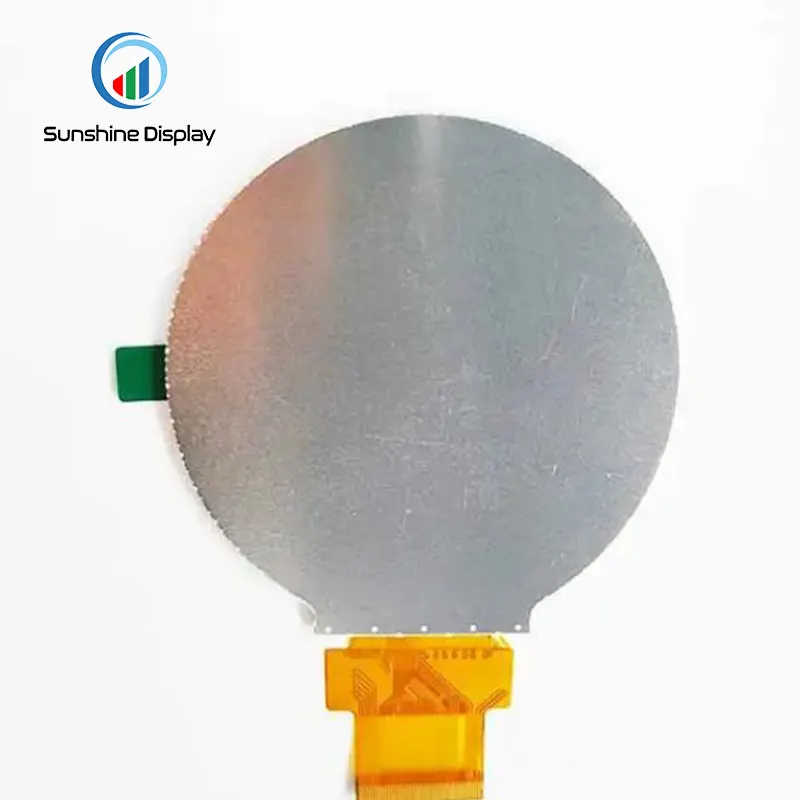

1.6inch round TFT LCD 400X400 Resolution SPI Interface
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details
SDT016BSA-02 1.6 inch Description:
SDT016BSA-02 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 39.84* 39.84 mm diagonally measured active area with 400*400 resolution.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 400 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
- 1. Office Electronic Equipment: money counting machine, office phone set, copying machine.
- 2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
- 3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
- 4. Medical Devices: sphygmomanometer, ECG machine.
- 5. Sports Equipment: Running machine.
- 6. Industrial Control Equipment: remote control, punched-card machine.
- 7. Information Terminal Display: POS, PDA, Handheld devices.
Specifications
Need the latest datasheet or drawing? Request documentation for SDT016BSA-02.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT016BSA-02 | - |
| Size | 1.6 | inch |
| Resolution | 400*400 | dots |
| LCD Type | IPS | - |
| Viewing Angle | AII | o'clock |
| Luminance | 400 | cd/m2 |
| LED Numbers | 3P | - |
| LCD Driver IC | ST77903 | - |
| Pin Number | 16 | - |
| Module Interface | SPI | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | |
| Outline Dimension | 41.95*44.04*2.00 | - |
| Active Area | 39.84* 39.84 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
