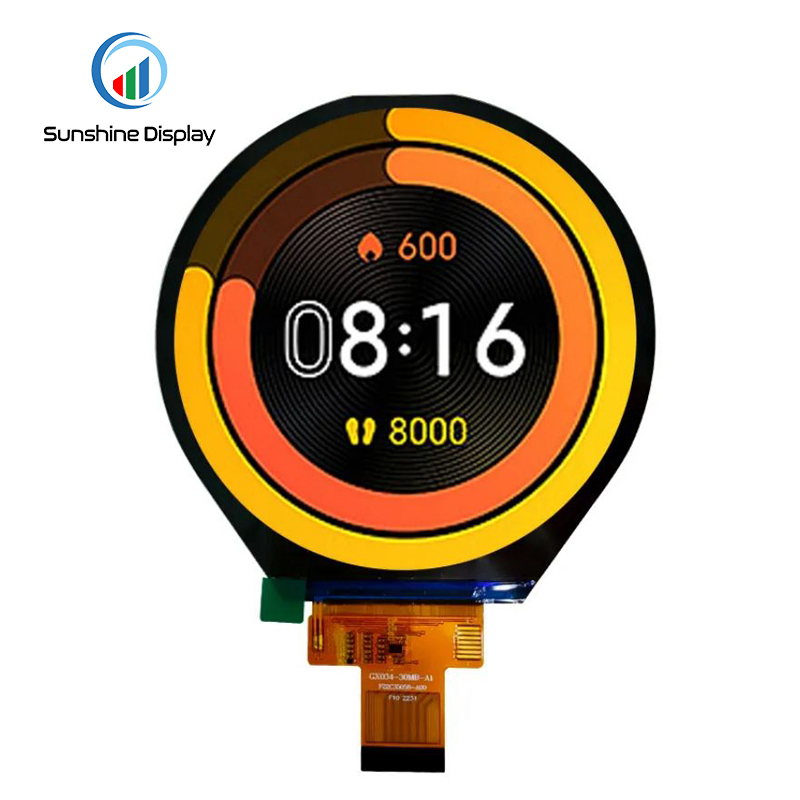

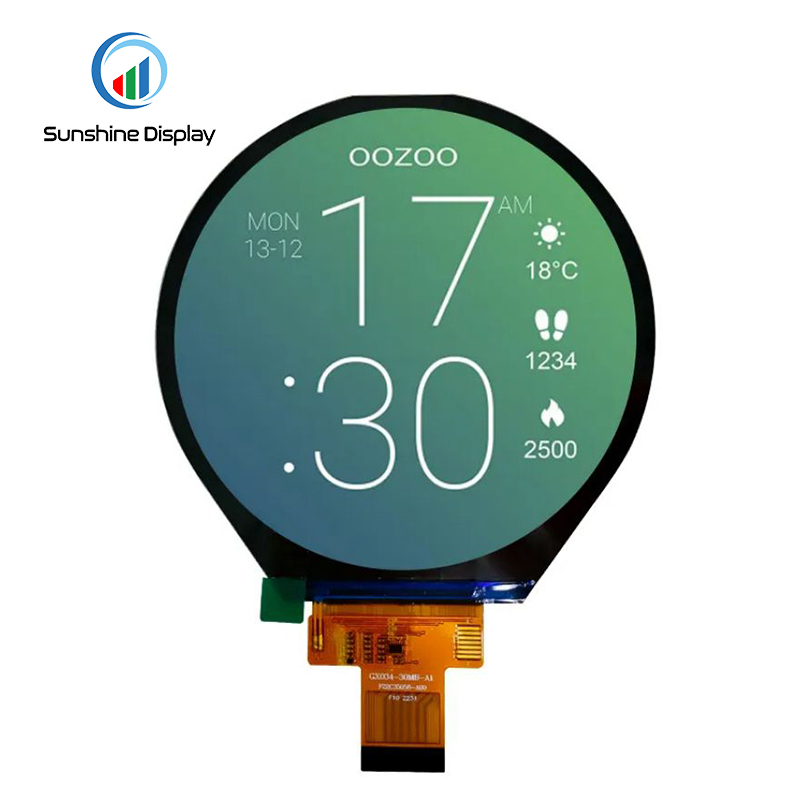

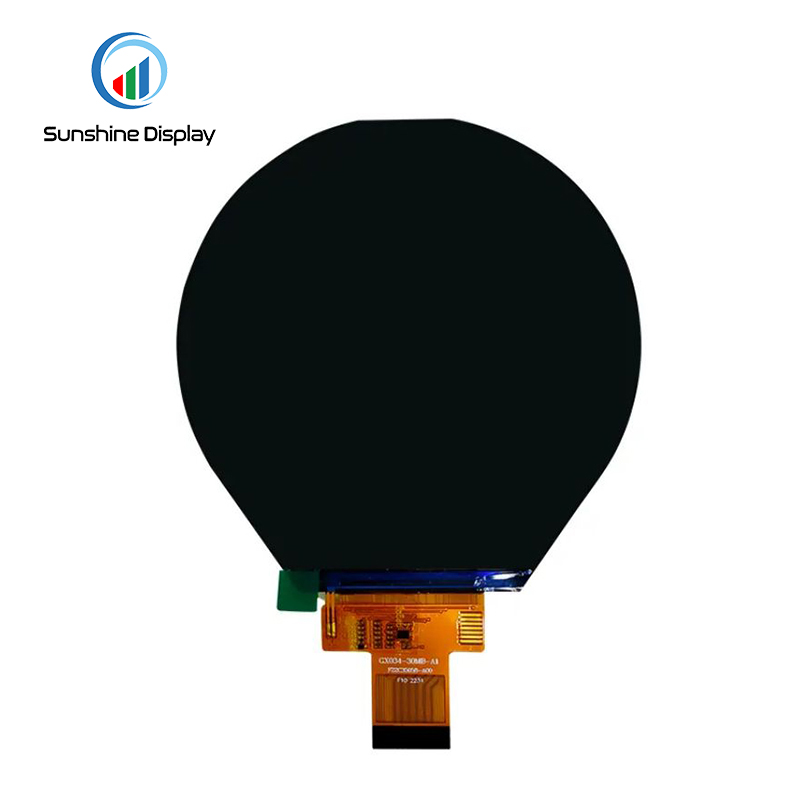

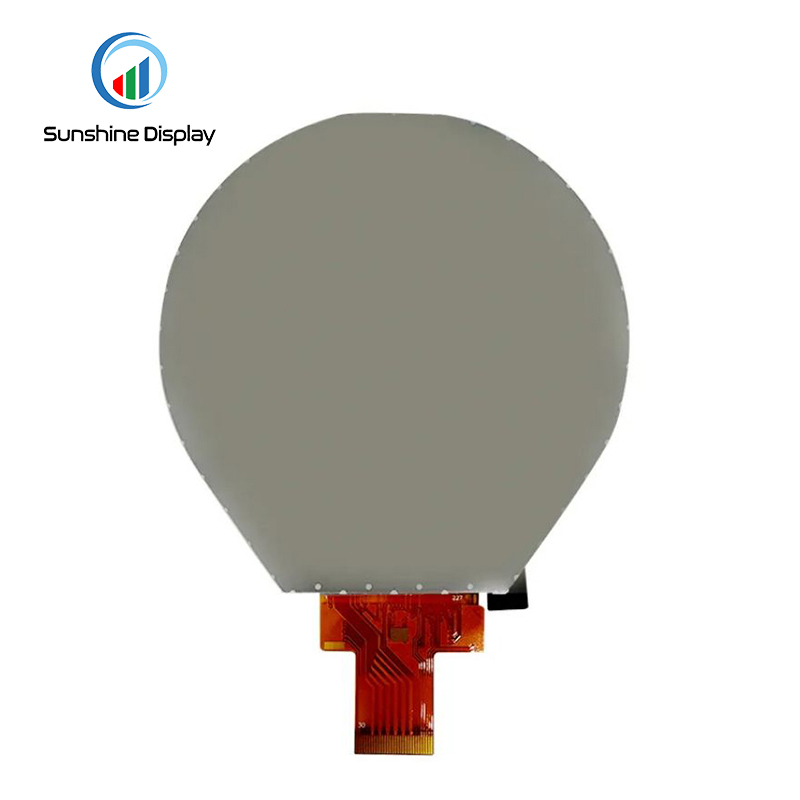

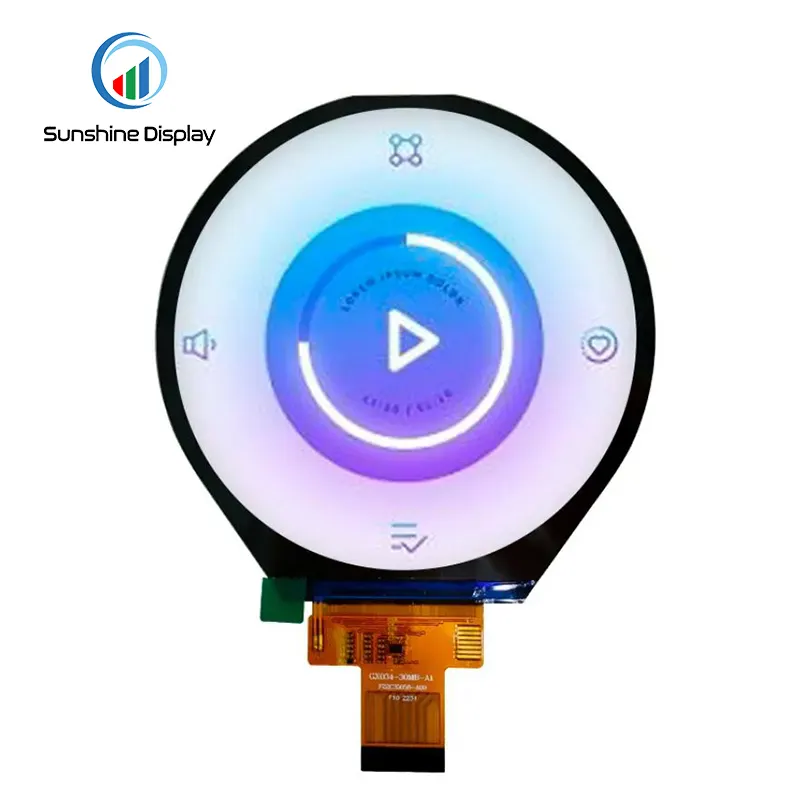

3.4inch Round TFT LCD Display 800x800 Resolution with MIPI Interface
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details
SDT034BWJA-01 3.4 inch Description:
SDT034BWJA-01 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 87.6*87.6 mm diagonally measured active area with 800*800 resolution.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 500 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
- 1. Office Electronic Equipment: money counting machine, office phone set, copying machine.
- 2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
- 3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
- 4. Medical Devices: sphygmomanometer, ECG machine.
- 5. Sports Equipment: Running machine.
- 6. Industrial Control Equipment: remote control, punched-card machine.
- 7. Information Terminal Display: POS, PDA, Handheld devices.
Why Choose Sunshine Display?
With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT034BWJA-01 | - |
| Size | 3.4 | inch |
| Resolution | 800*800 | dots |
| LCD Type | IPS | - |
| Viewing Angle | AII | o'clock |
| Luminance | 500 | cd/m2 |
| LED Numbers | 2S4P | - |
| LCD Driver IC | JD9365DA | - |
| Pin Number | 30 | - |
| Module Interface | 4Lane MIPI | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | |
| Outline Dimension | 94.9*96.95*2.26 | - |
| Active Area | 87.6*87.6 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
