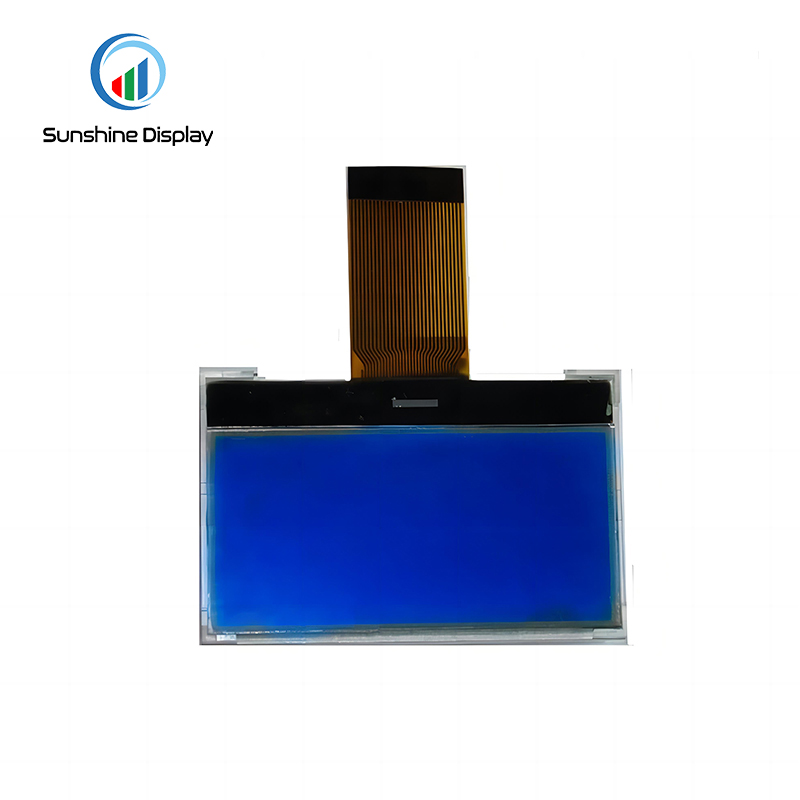

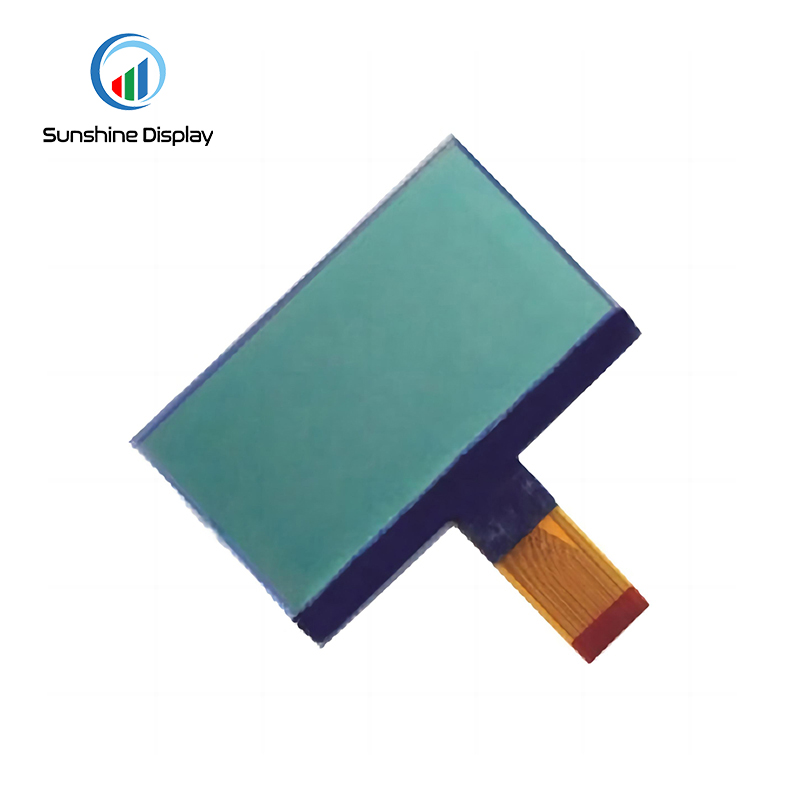

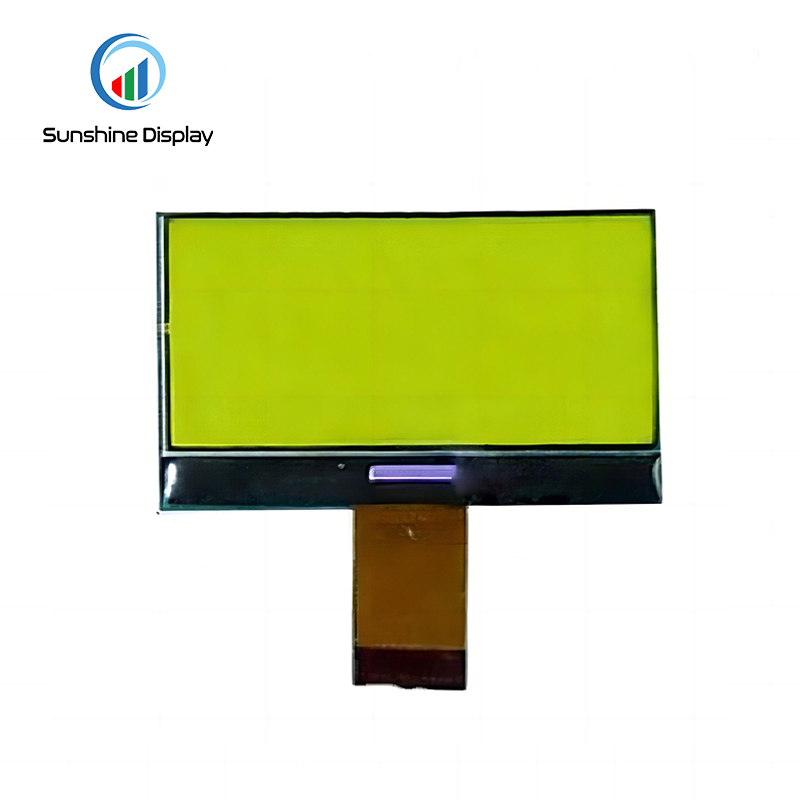

128x64 COG LCD Module without Backlight

Name: SDG12864B COG LCD Module
Brand: Sunshine Display
SKU: SDG12864B

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

SDG12864B Description:

Sunshine Display is a professional LCD manufacturer in China, specializing in TFT LCD, Mono LCD, Touch Panel, OLED Display for many years. Sunshine Display has developed thousands of OEM&ODM LCD Modules for various fields, including Smart Home Appliances, Industrial, Automotive, Medical, etc.

Sunshine Display -- 128x64 dots COG LCD module

Custom Process:
Confirm specific requirements → Pay tooling charge → Provide drawing → Confirm drawing → Make tooling & samples → Samples finished → Delivery via freight or sea collect

Lead time for custom LCD:
drawing making:2-5days
tooling and samples: around 3wks
OEM and customization are welcome!

Key Features & Advantages

LCD type and dot matrix: 128x64 dots, display mode and viewing optimized for monochrome applications.
Wide operating temperature range (-20 ~ +70°C) for reliable operation in industrial and outdoor environments.
Long module lifetime (50,000-100,000) for reduced maintenance and total cost of ownership.
Compact interface: 30 pins, driver IC on glass (COG) for slim profile and easy integration.
Reflective or transmissive options; positive/negative display modes available to suit different lighting conditions.
Customization support: LCD type, interface, size, display mode, and viewing area to meet your project requirements.

Application

The energy meter, digital meter, oiling machine, crane, and air conditioner are customized for your device.

ENGINEERING GUIDELCD Voltage Compatibility

Need model-specific documentation?

Ask about available datasheets and drawings for SDG12864B.

Request documentation

Specifications

Feature	Specification	Unit
Brand	Sunshine Display	-
Dot Matrix	128x64	-
Model Number	SDG12864B	-
Display Type	STN-Blue, STN-YG FSTN	-
Outline Dimension	77482.8	mm
Viewing Area	73*39	mm
IC	IST3040	-
Pin Number	30	-
Backlight	No BL	-
Operating Temperature	-20 ~ +70°C	℃
Storage Temperature	-30 ~ +80°C	℃
Module lifetime	50,000-100,000	Hours

Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
