Prodcuts Details

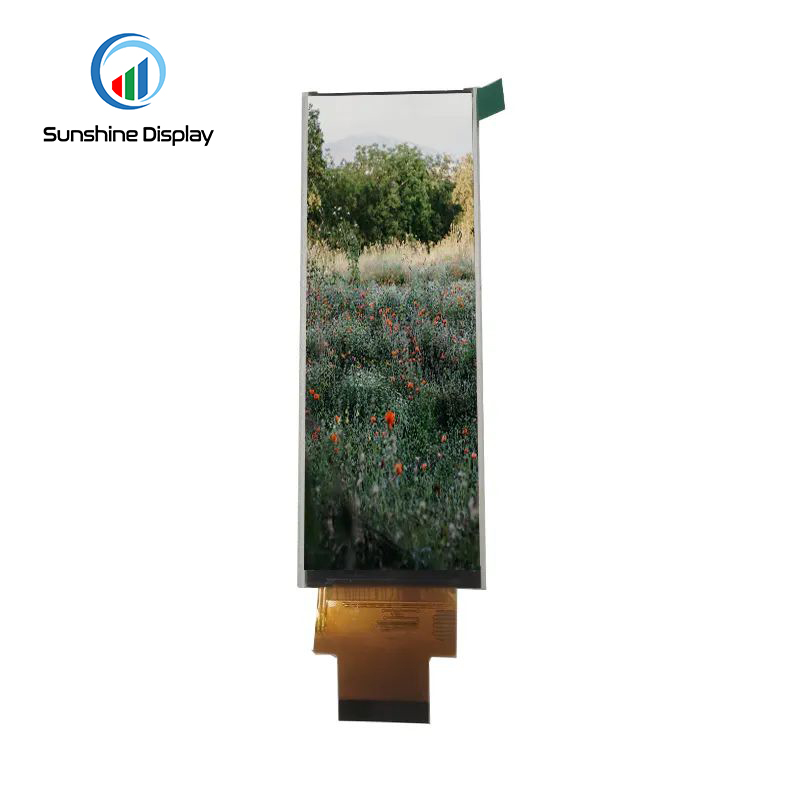

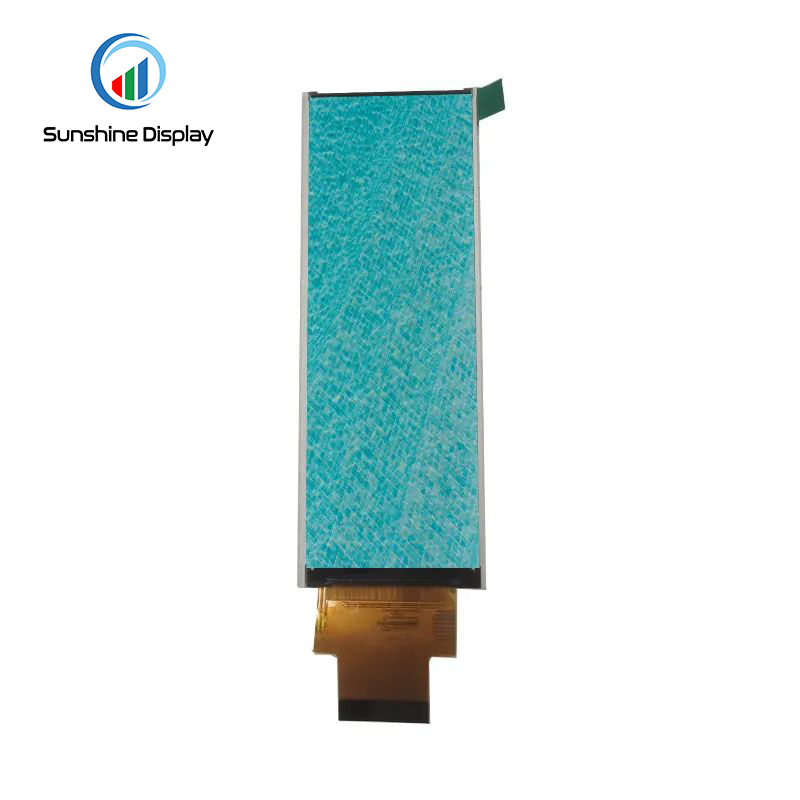

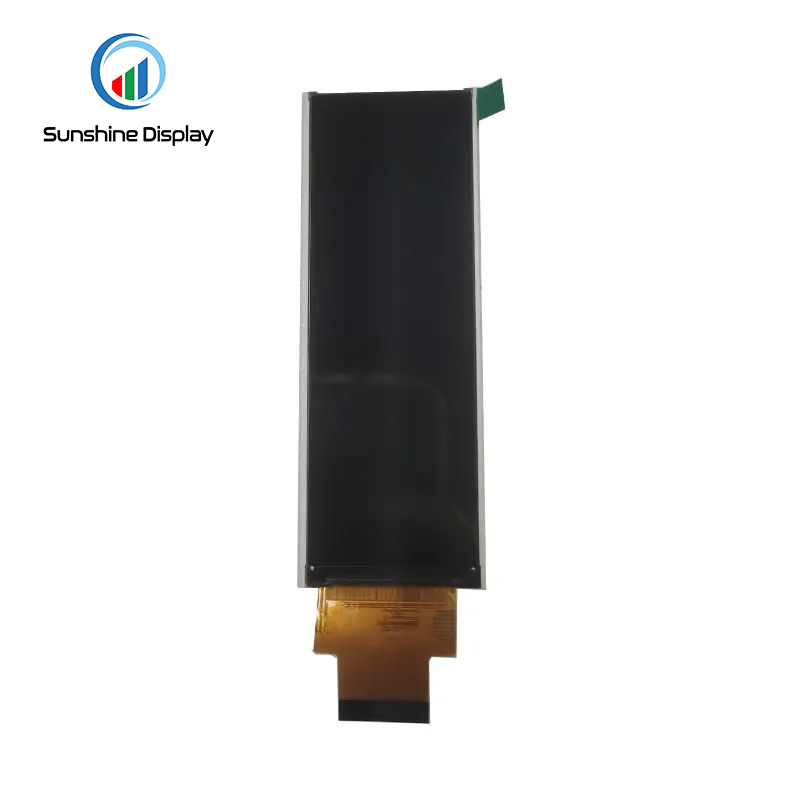

SDT046AUSI-01 4.6 inch Description:
Sunshine Display model SDT046AUSI-01 serials are the standard 4.6 inch color TFT LCD, normally white with transmissive type TN panel, 320*960 resolution, ST7701S driver IC, RGB interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 500 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 500 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 4.6 inch TFT LCD display, 320*960 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Specifications
Need the latest datasheet or drawing? Request documentation for SDT046AUSI-01.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT046AUSI-01 | - |
| Size | 4.6 | inch |
| Resolution | 320*960 | dots |
| LCD Type | IPS | - |
| Viewing Angle | AII | o'clock |
| Luminance | 500 | cd/m2 |
| LED Numbers | 2S4P | - |
| LCD Driver IC | ST7701S | - |
| Pin Number | 40 | - |
| Module Interface | RGB | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | |
| Outline Dimension | 41.57*118.8*2.5 | - |
| Active Area | 36.768*110.304 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
