1.77 Inch 128x160 TFT LCD Module With MCU Interface
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

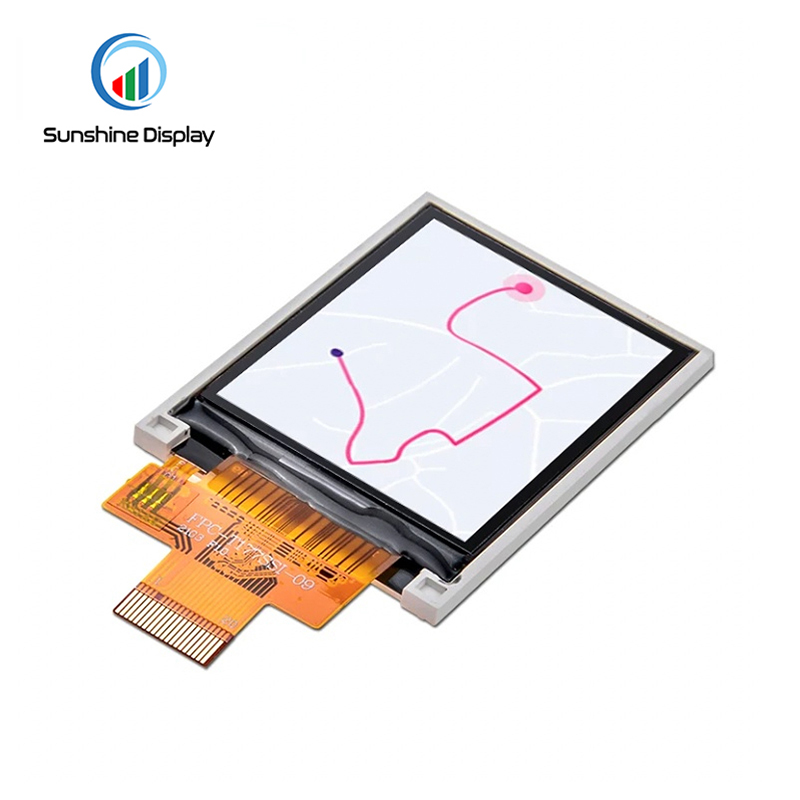

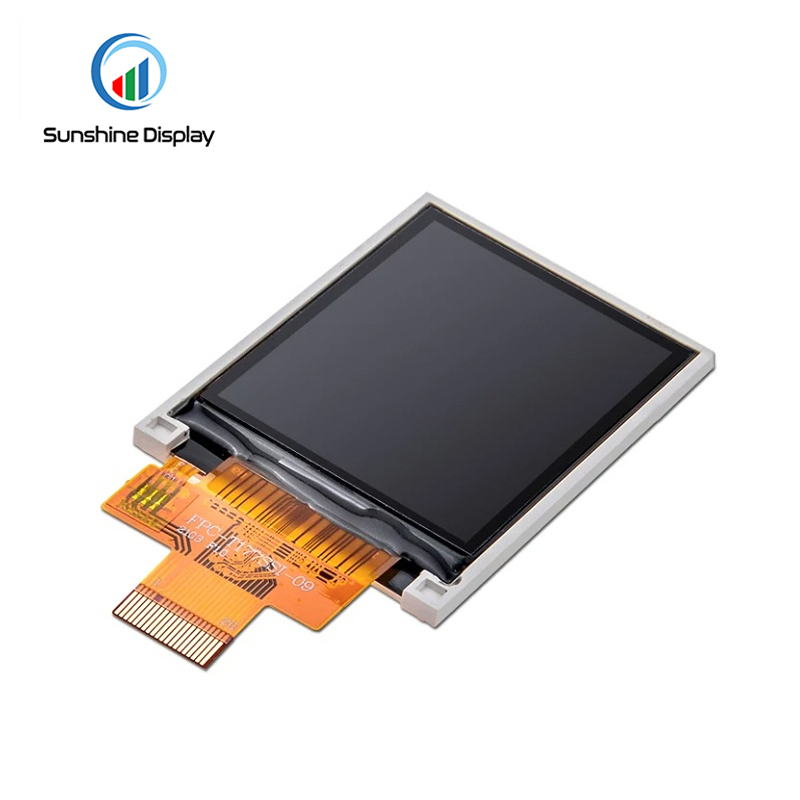

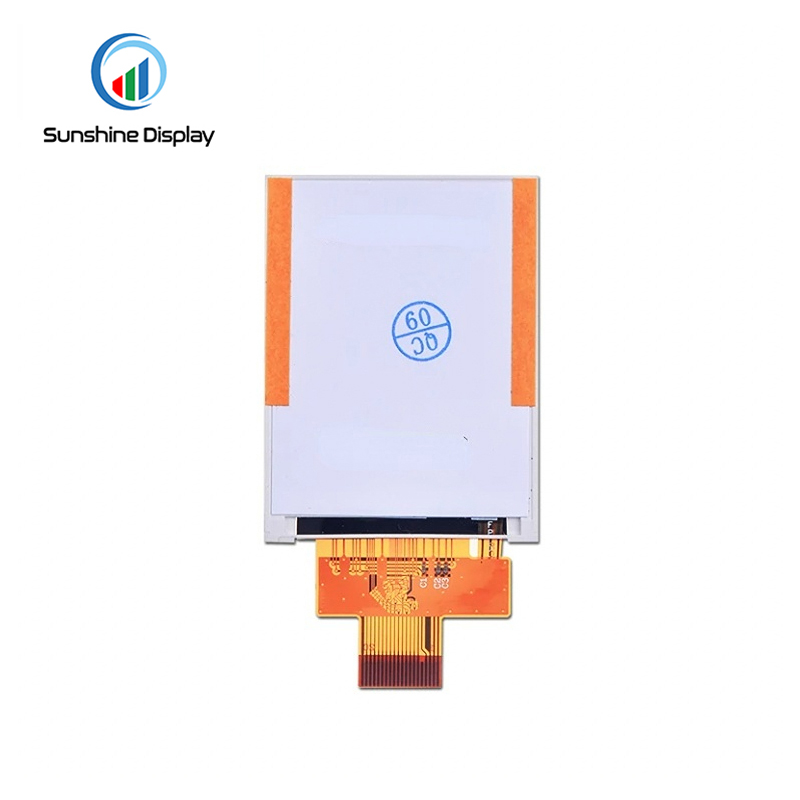

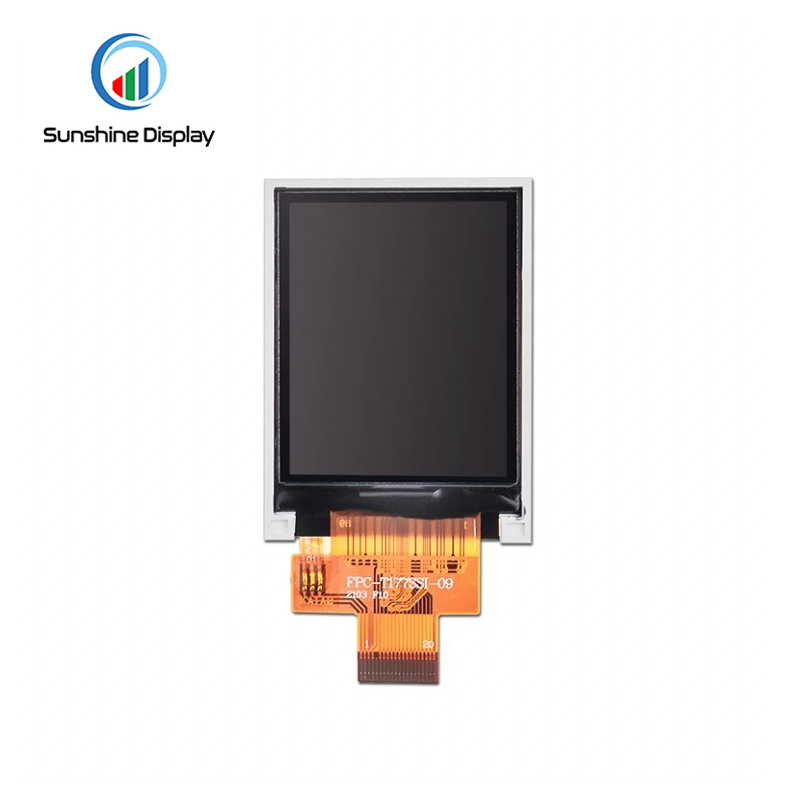

SDT177SSI-09 1.77 inch Description:
Sunshine Display model SDT177SSI-09 serials are the standard 1.77 inch color TFT LCD, normally white with transmissive type TN panel, 128*160 resolution, ILI9163V driver IC, 8BIT MCU interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 250 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 250 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 1.77 inch TFT LCD display, 128*160 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Specifications
Need the latest datasheet or drawing? Request documentation for SDT177SSI-09.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT177SSI-09 | - |
| Size | 1.77 | inch |
| Resolution | 128*160 | dots |
| LCD Type | TN | - |
| Viewing Angle | 06:00 | o'clock |
| Luminance | 250 | cd/m2 |
| LED Numbers | 2P | - |
| LCD Driver IC | ILI9163V | - |
| Pin Number | 20 | - |
| Module Interface | 8BIT MCU | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 34.70*46.70*2.60 | - |
| Active Area | 28.03*35.04 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
