Prodcuts Details

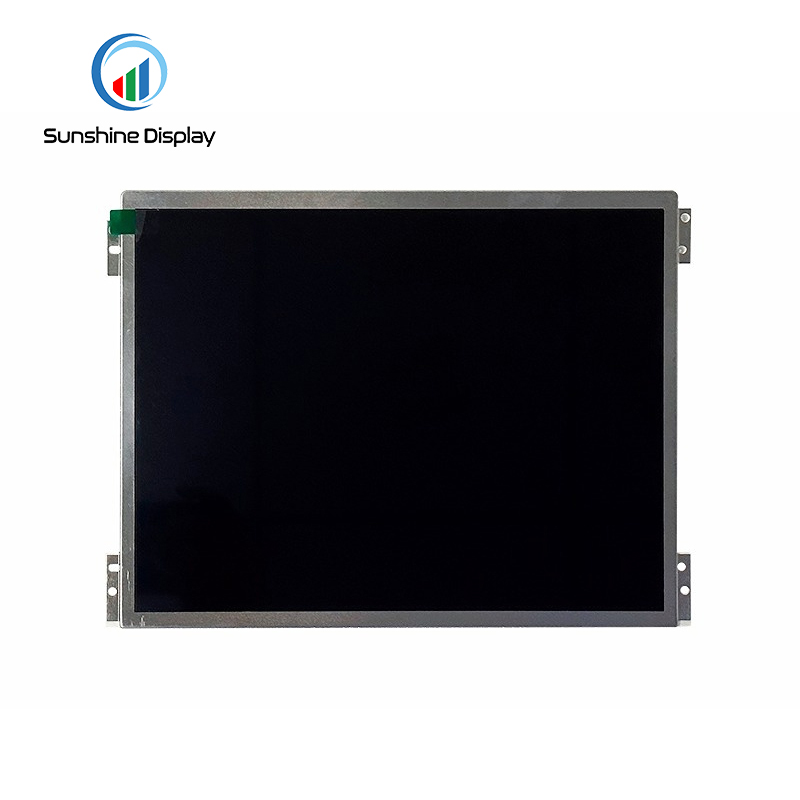

SDT104HXHI-06 10.4 inch Description:
SDT104HXHI-06 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. This product is composed of a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 210.432*157.824 and the native resolution is 1024*768. Features of this product are listed in the following table.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 600 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -30~+80 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
- IPS technology provides consistent color and contrast over ultra-wide viewing angles.
Application
- 1. Office Electronic Equipment: money counting machine, office phone set, copying machine.
- 2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
- 3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
- 4. Medical Devices: sphygmomanometer, ECG machine.
- 5. Sports Equipment: Running machine.
- 6. Industrial Control Equipment: remote control, punched-card machine.
- 7. Information Terminal Display: POS, PDA, Handheld devices.
Why Choose Sunshine Display?
With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT104HXHI-06 | - |
| Size | 10.4 | inch |
| Resolution | 1024*768 | dots |
| LCD Type | IPS | - |
| Viewing Angle | IPS | o'clock |
| Luminance | 600 | cd/m2 |
| LED Numbers | 3S13P | - |
| LCD Driver IC | TBD | - |
| Pin Number | 30 | - |
| Module Interface | LVDS | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | |
| Outline Dimension | 236.00*174.30*6.0 | - |
| Active Area | 210.432*157.824 | mm |
| Operating Temperature | -30~+80 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
