480X272 Resolution 5 Inch Tft Lcd Panel with Capacitive Touch Screen
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

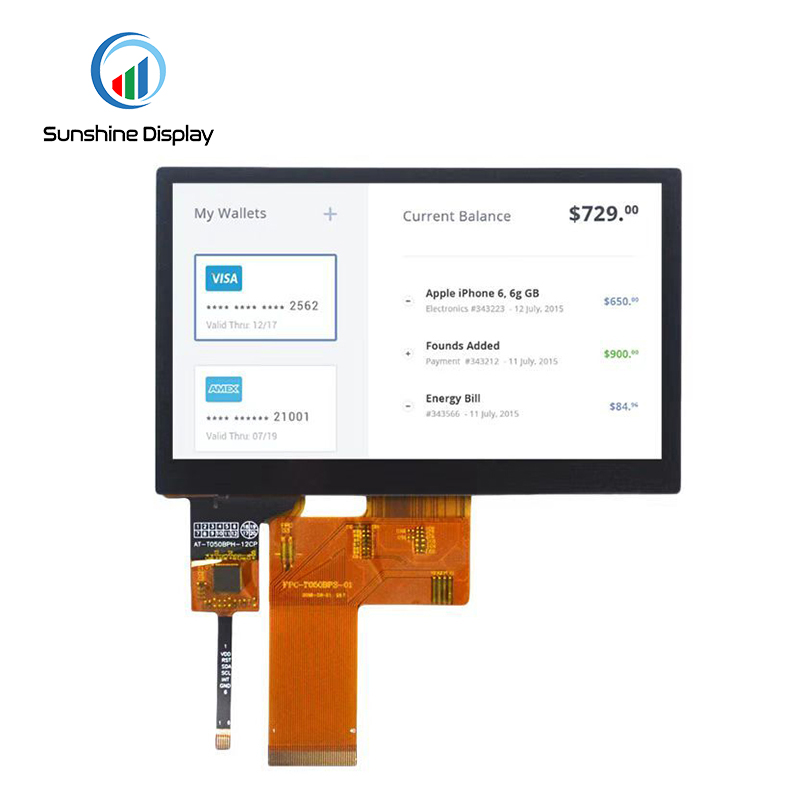

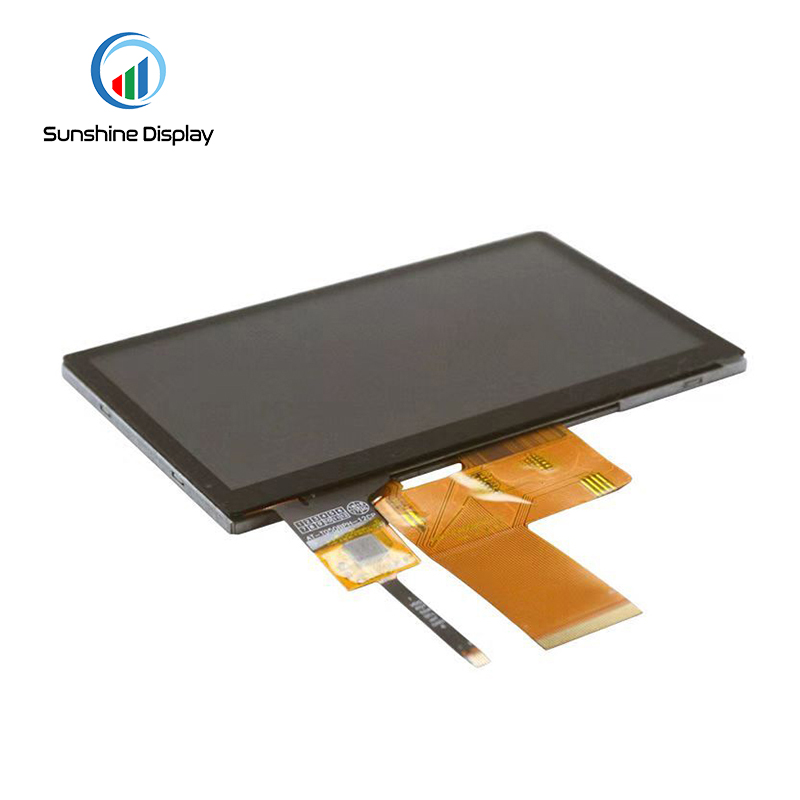

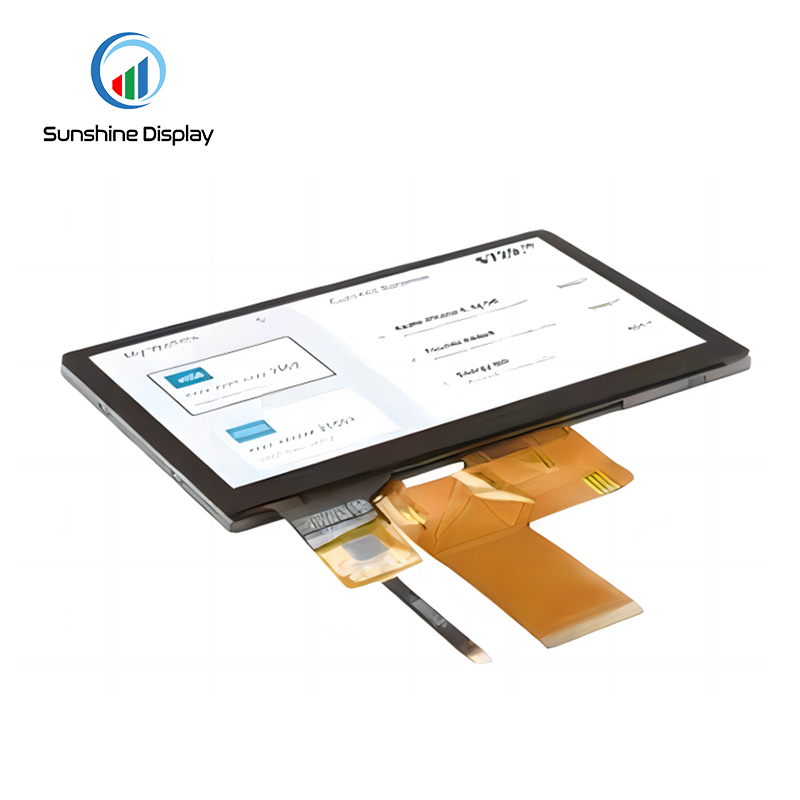

SDT050BPHN-12CP 5.0 inch Description:
Sunshine Display model SDT050BPHN-12CP serials are the standard 5.0 inch color TFT LCD, normally white with transmissive type TN panel, 480*272 resolution, ST7257 driver IC, -- interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 350 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 350 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
- Optional capacitive touch panel supports modern and intuitive user interfaces.
Application
For this 5.0 inch TFT LCD display, 480*272 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Design Resources
Explore integration guides for this display category. Use the model’s technical documentation to confirm exact specifications.
Need model-specific documentation?
Ask about available datasheets and drawings for SDT050BPHN-12CP.
Specifications
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT050BPHN-12CP | - |
| Size | 5.0 | inch |
| Resolution | 480*272 | dots |
| LCD Type | TN | - |
| Viewing Angle | 12:00 | o'clock |
| Luminance | 350 | cd/m2 |
| LED Numbers | 6S2P | - |
| LCD Driver IC | ST7257 | - |
| Pin Number | 40 | - |
| Module Interface | 24BIT RGB | - |
| With/Without TP | With CTP | - |
| Touch Driver IC | GT911 | - |
| Outline Dimension | 120.70*75.80*4.50 | - |
| Active Area | 110.88*62.83 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
