Prodcuts Details

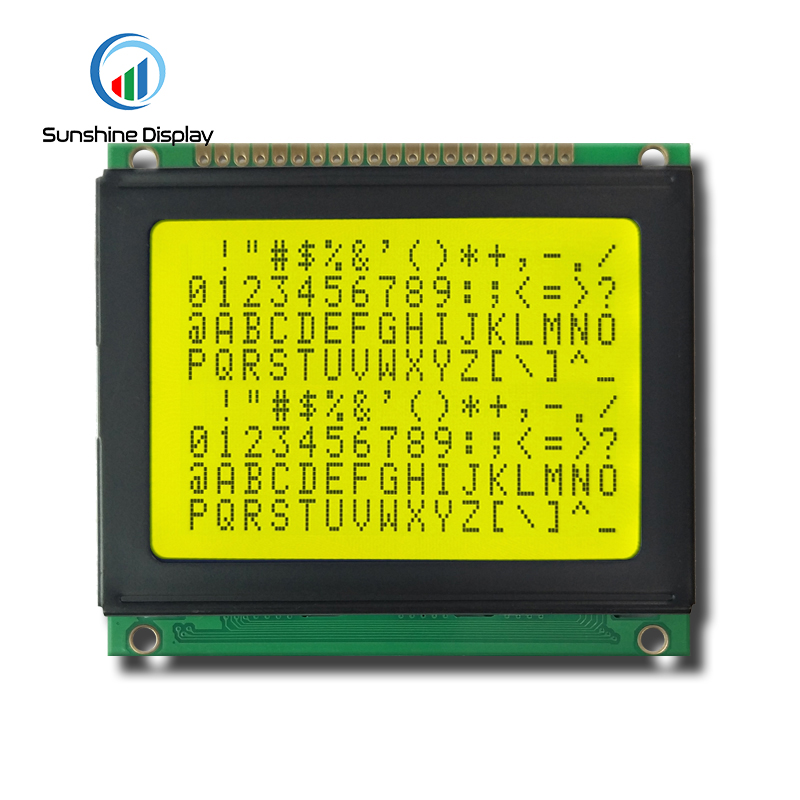

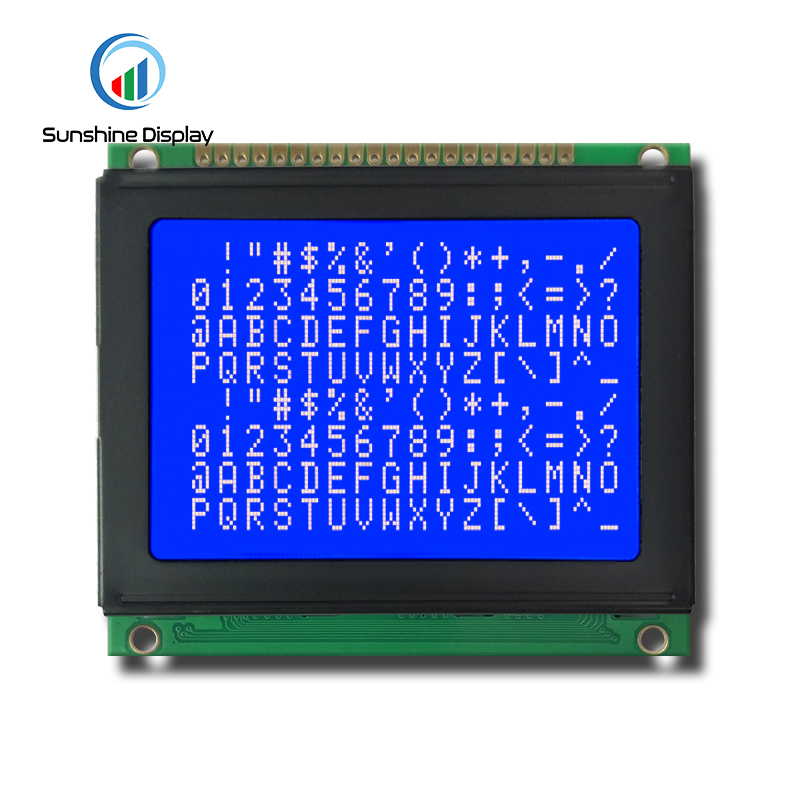

SDM12864F Description:
Sunshine Dsiaplay presents our advanced Chip-on-Board (COB) Graphic LCD modules, engineered for superior performance in harsh environments. These rugged displays combine high contrast visibility with exceptional durability, making them ideal for industrial, medical, and automotive applications where reliability is critical. For our SDM12864F 128X64 dots Graphic LCD, it's widely used in industrial products, industrial equipment and industrial controllers, mechanical displays, etc.
Key Features & Advantages
- 128X64 dots graphic LCD with 20 pins for high-density pixel display and flexible interfacing.
- 3.3V or 5V operating voltage for simple power supply design and compatibility with common system rails.
- Built-in driver IC (T6963C) with font table supporting English, European, Japanese, and Russian character sets.
- Wide operating temperature range (-20 ~ +70°C) and robust COB construction for industrial and automotive use.
- Sunshine Display offers a full range of mono LCDs (COB, COG, OLED); customized designs are warmly welcome.
Application
For our SDM12864F 128X64 dots Graphic LCD, it's widely used in industrial product, industrial equipment and industrial controllers, mechanical displays, etc.
Design Resources
Explore integration guides for this display category. Use the model’s technical documentation to confirm exact specifications.
Need model-specific documentation?
Ask about available datasheets and drawings for SDM12864F.
Specifications
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Format | 128X64 | Pixel Resolution |
| Model Number | SDM12864F | - |
| Display Type | STN-Blue, STN-YG FSTN | - |
| Outline Dimension | 93.0*70.0*12.5 | mm |
| Viewing Area | 72.0*39.0 | mm |
| IC | T6963C | - |
| Pin Number | 20 | - |
| Remark | Side BL,ST7920 is with Chinese Fonts | - |
| Operating Temperature | -20 ~ +70°C | ℃ |
| Storage Temperature | -30 ~ +80°C | ℃ |
| Operating Voltage | 3.3V or 5V | V |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
