0.96inch 128x64 Dots AMOLED LCD Display white Color
SDO096W30C-128064
SDT TFT LCD Products
Categories
- Standard TFT LCD Module
- IPS TFT LCD Module
- Sunlight Readable TFT LCD
- TFT with Capacitive Touch Screen
- Wide Temperature TFT Display
- Round TFT LCD Module
- COG LCD Module
- Character COB LCD Module
- Graphic COB LCD Module
- OLED LCD Display
- E-paper Display
- Bar Type TFT LCD Module
- Custom Displays
Explore similar products
1.3inch 128x64 Dots OLED LCD Display
SDO130WB30-128064
1.54inch 128x64 OLED LCD Scren Yellow LCD Display
SDO154Y24C-128064
3.12inch OLED LCD 256X64 Pixels AMOLED LCD Display
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

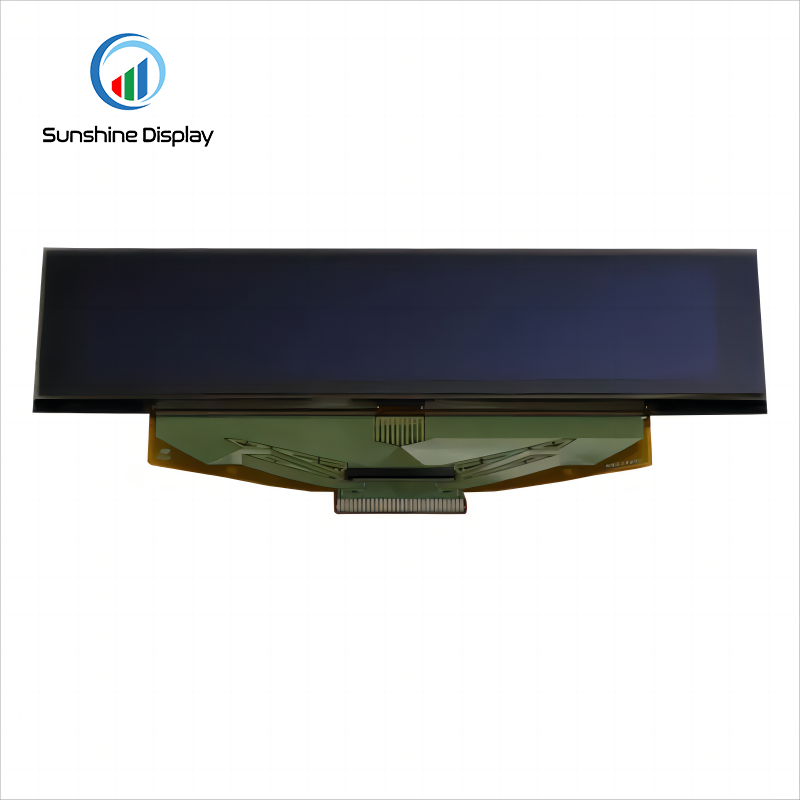

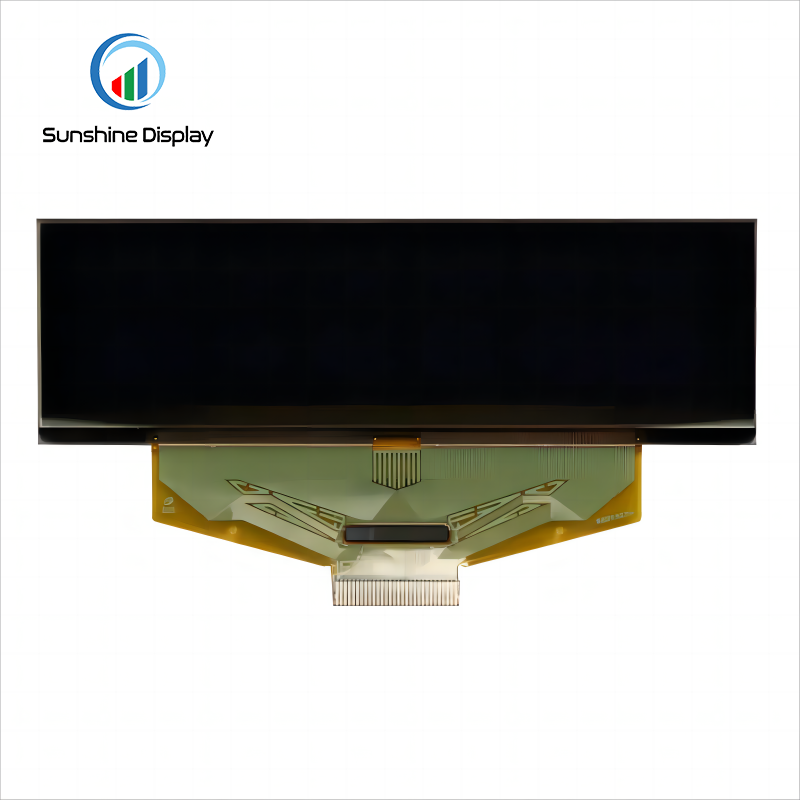

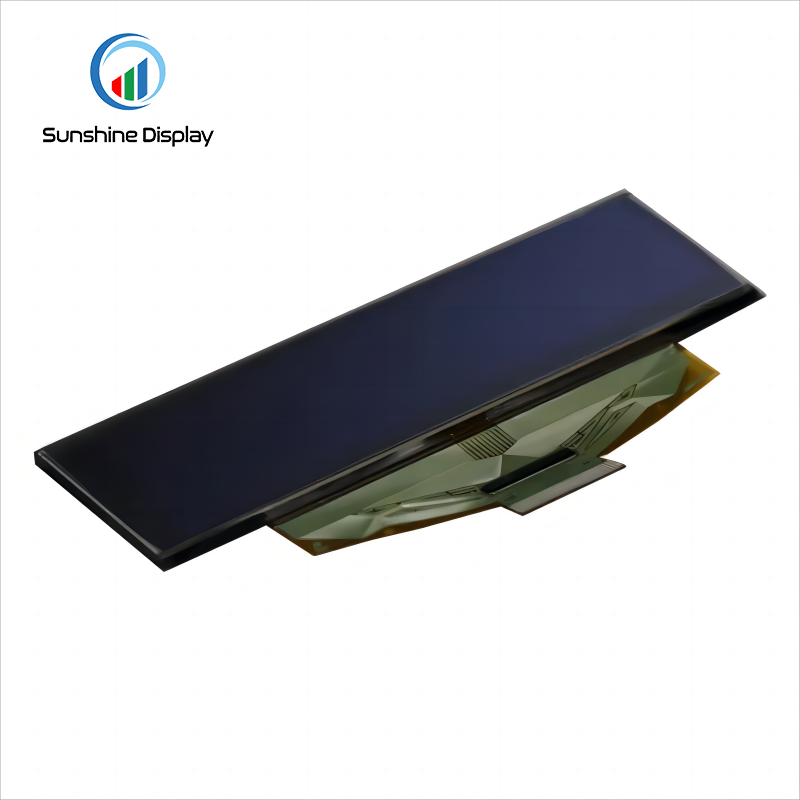

3.12 256x64 3.12 inch Description:
This display module is a 3.12 inch (256x64) AMOLED display. The interface of it is --. The resolution of this 3.12 inch OLED is 256x64 dots and can display up to 16.7M colors. The driver IC is --.
Key Features & Advantages
- Outstanding optical performance with high contrast and wide viewing angles, suitable for industrial HMI and outdoor applications.
- Industrial-grade reliability with robust design tailored for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
- 1. Office Electronic Equipment: money counting machine, office phone set, copying machine.
- 2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
- 3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
- 4. Medical Devices: sphygmomanometer, ECG machine.
- 5. Sports Equipment: Running machine.
- 6. Industrial Control Equipment: remote control, punched-card machine.
- 7. Information Terminal Display: POS, PDA, Handheld devices.
Design Resources
Explore integration guides for this display category. Use the model’s technical documentation to confirm exact specifications.
Need model-specific documentation?
Ask about available datasheets and drawings for 3.12 256x64.
Specifications
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDO312B30-256064 | - |
| Size | 3.12 | inch |
| Resolution | 256x64 | dots |
| Color | Blue | - |
| Panel Size | 88x27.8x2 | mm |
| Active Area | 76.78x19.18 | mm |
| Driver | SSD1322 | - |
| Bonding | COF | - |
| Pin | 30 | - |
| Interface | 8bit-6800/8000, 4-SPI | - |
| Assembly | connector | - |
Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
