1.5inch 128x128 AMOLED LCD Display with SPI Interface

Name: 1.5 128x128 1.5 inch OLED Display Module
Brand: Sunshine Display
SKU: 1.5 128x128

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

1.5 128x128 1.5 inch Description:

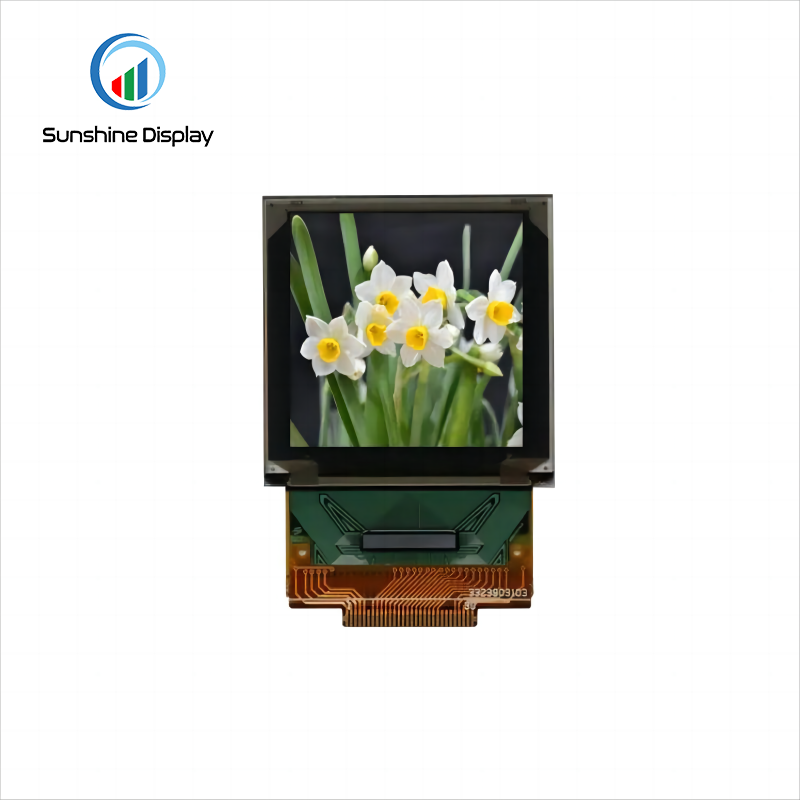

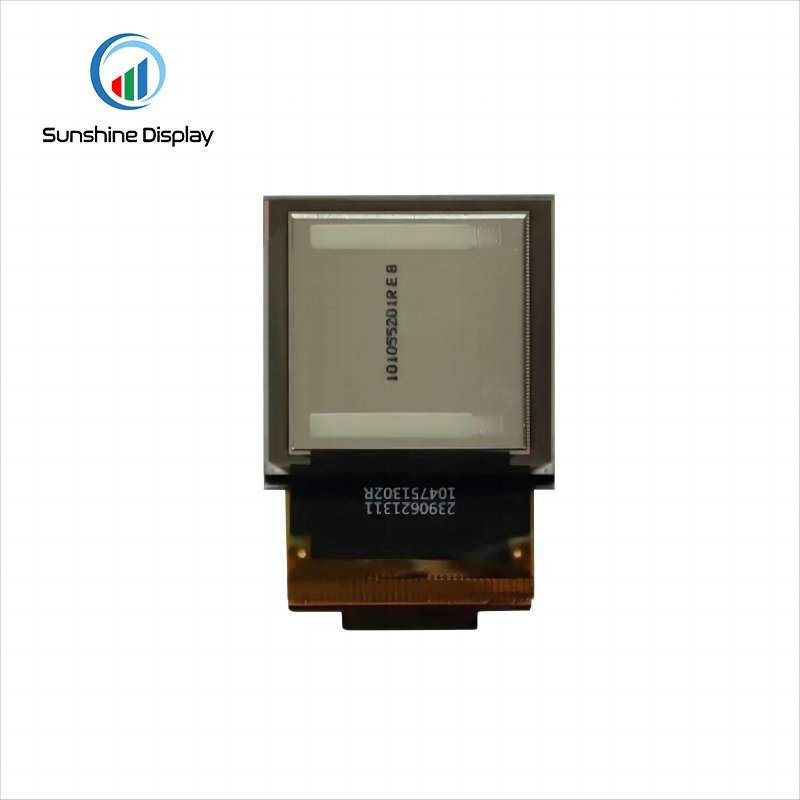

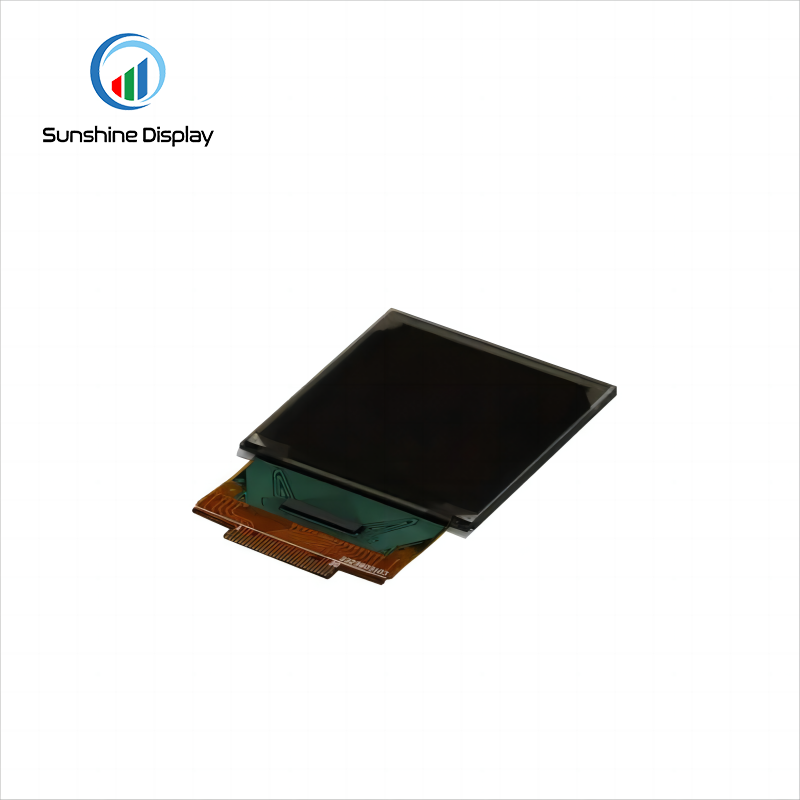

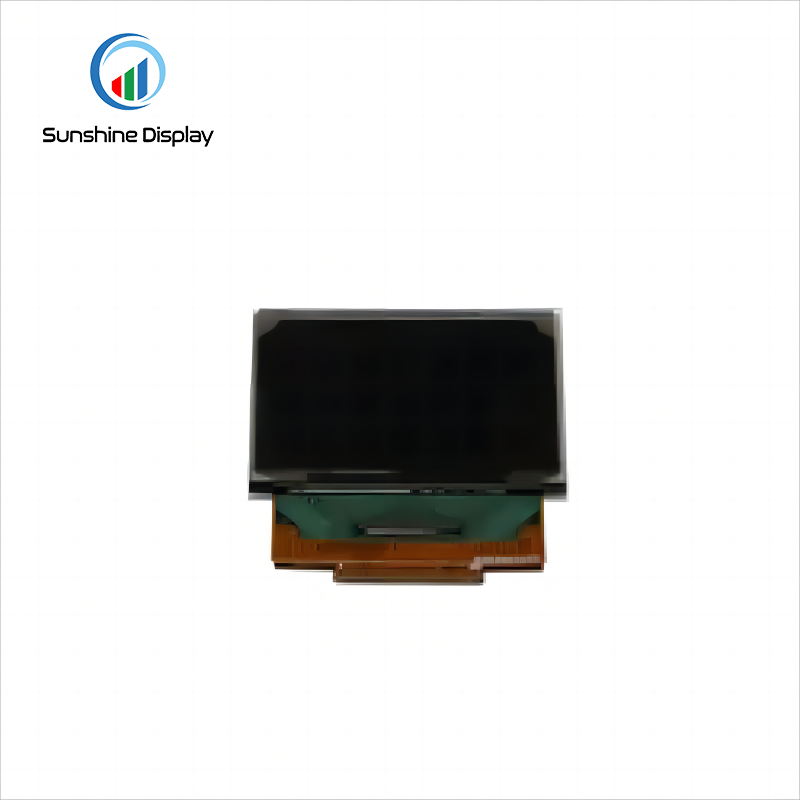

This display module is a 1.5 inch (128x128) AMOLED display. The interface of it is --. The resolution of this 1.5 inch OLED is 128x128 dots and can display up to 16.7M colors. The driver IC is --.

Key Features & Advantages

Outstanding optical performance with high contrast and wide viewing angles, suitable for industrial HMI and outdoor applications.
Industrial-grade reliability with robust design tailored for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

1. Office Electronic Equipment: money counting machine, office phone set, copying machine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine.
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.

ENGINEERING GUIDETFT LCD, OLED and E-paper Compared

Need model-specific documentation?

Ask about available datasheets and drawings for 1.5 128x128.

Request documentation

Specifications

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDO150C30-128128	-
Size	1.5	inch
Resolution	128x128	dots
Color	262K colors	-
Panel Size	33.8x34x1.6	mm
Active Area	26.855x26.864	mm
Driver	SSD1351	-
Bonding	COF	-
Pin	30	-
Interface	8bit-6800/8000, 3/4-SPI	-
Assembly	soldering	-

Before design approval, confirm the specification revision, pin assignment, electrical limits and mechanical drawing. Agree on any project-specific inspection and aging conditions with our engineering team.
