16X4 COB Character LCD Module with Backlight

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

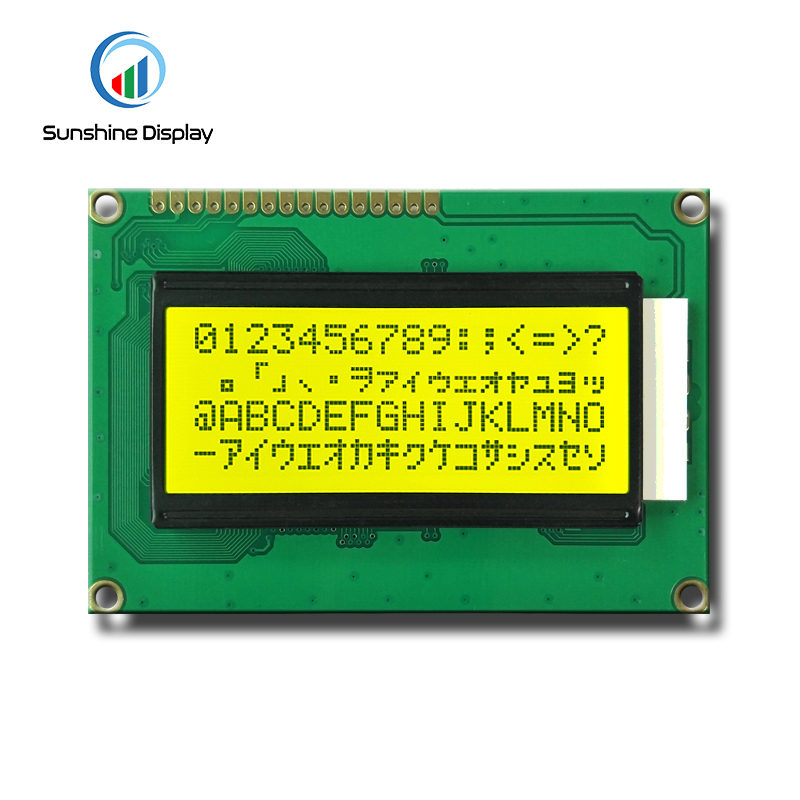

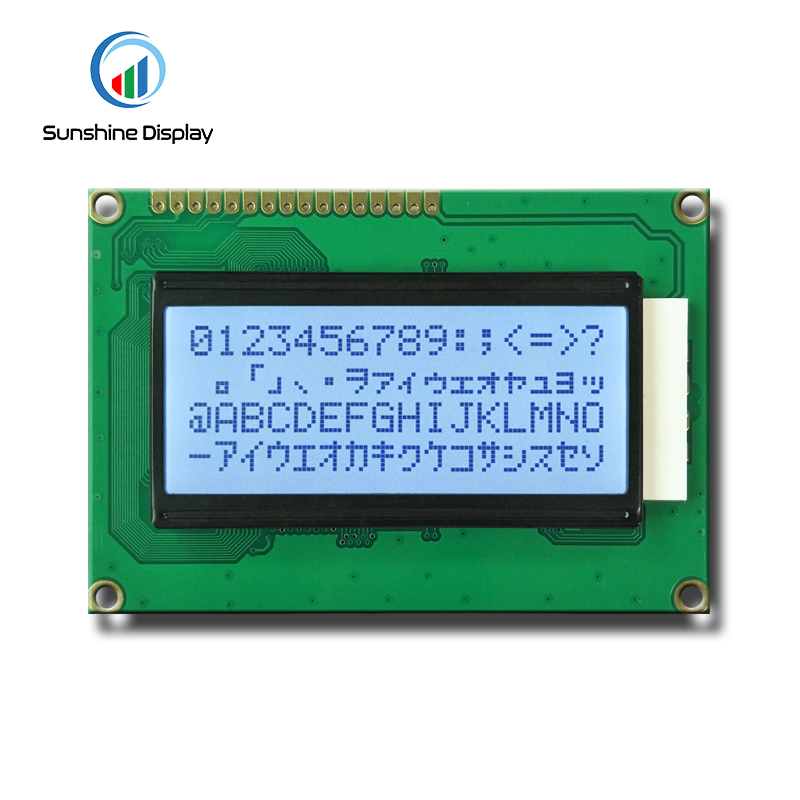

SDM1604A Description:

The SDM1604A is a 16X4 characters x rows LCD module. It has a STN panel composed of 20 segments and 4 commons. The LCM can be easily accessed by microcontroller via SPI interface. We have STN-YG, STN-blue, Positive/negative, Transflective/transmissive. Can customize the parameters according to your requirements such as polarizer type, LCD mode, connection way, operating voltage, etc.

Key Features & Advantages

16X4 characters × rows LCD with 16 pins for clear alphanumeric display and simple host interface.
3.3V or 5V operating voltage for low-power operation and easy integration with microcontrollers and development boards.
On-board driver IC (AIP31066) with built-in font table for English, European, Japanese, and Russian character support.
Operating temperature range -20 ~ +70°C and reliable COB assembly for industrial control, instruments, and consumer products.
Sunshine Display provides a full range of mono LCDs including COB, COG, and OLED; customized designs are warmly welcome.

Application

1. Office Electronic Equipment: money counting machine, office phone set, copying machine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine.
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.

Why Choose Sunshine Display?

With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.

Feature	Specification	Unit
Brand	Sunshine Display	-
Format	16X4	Characters * Row
Model Number	SDM1604A	-
Display Type	STN-Blue, STN-YG FSTN	-
Outline Dimension	87.060.011.0	mm
Viewing Area	62.0*25.5	mm
IC	AIP31066	-
Pin Number	16	-
Remark	Side BL	-
Operating Temperature	-20 ~ +70°C	℃
Storage Temperature	-30 ~ +80°C	℃
Operating Voltage	3.3V or 5V	V
