Industrial Water Treatment LCD Modules: Selection Notes

Water treatment systems, pump stations, filtration equipment, dosing systems, and utility-room control cabinets need displays that communicate equipment status clearly. The LCD module may show tank level, flow rate, pump state, pressure, valve position, alarm level, service interval, fault codes, and configuration menus. This is not a consumer phone, tablet, or TV display requirement. In industrial water systems, the display is part of the control and maintenance workflow, so reliability, readability, and stable supply matter more than entertainment-style screen performance.

Sunshine Display supplies LCD display modules up to 32 inches for industrial and OEM applications, including color TFT LCD modules, IPS TFT options, capacitive touch structures, and wide-temperature solutions. For water treatment control panels, the right display should be selected around the actual cabinet environment, operator workflow, electrical conditions, moisture risk, and product lifecycle.

Water treatment control panels need LCD modules that stay readable around pipes, gauges, pumps, and alarms.

Start With the Real Control Task

Before selecting size or resolution, define what the operator must see first. A small pump controller may need tank level, pump run state, alarm icons, and several menu pages. A larger water treatment HMI may need flow diagrams, multi-pump status, dosing values, filter pressure, trend data, and maintenance records. The LCD module should support the information hierarchy instead of forcing too much data into a small screen.

For OEM engineers, the best starting point is the real user workflow: who reads the display, from what distance, under what lighting, and during what type of event? Routine inspection, alarm recovery, commissioning, and service work may all require different screen priorities. For buyers comparing available module formats, Sunshine Display's LCD display module product range can help narrow size, interface, brightness, and touch options.

Review Readability Around Pipes, Valves, and Cabinets

Water treatment panels are often installed near pipes, pumps, pressure gauges, wet floors, and metal equipment. Lighting can be uneven, and operators may view the display from the side while checking nearby gauges or valves. Front covers, protective windows, and membrane overlays can also reduce readability after final assembly.

For panels viewed from multiple positions, IPS TFT LCD modules can help maintain contrast and color stability. For controlled indoor panels with fixed viewing positions, standard TFT LCD modules may be suitable when cost and supply stability are important. The practical decision should be made with real UI screens behind the final front panel.

Brightness should not be selected only by maximum value. A display that is too dim can hide alarms, while a display that is too bright can add heat and reduce backlight margin. For many indoor pump and filtration panels, balanced brightness with clear contrast is more useful than the highest possible backlight rating.

Choose Touch or Keys Around the Environment

Some water treatment products use physical keys because they are easy to operate during service and commissioning. Others use capacitive touch for a sealed, flat, and modern front surface. The right choice depends on gloves, water spray, cleaning, dust, safety requirements, menu complexity, and enclosure sealing.

If touch is required, engineers should review cover glass thickness, touch controller tuning, grounding, gasket design, and cable routing. Moisture and electrical noise can both affect touch behavior, so final product testing matters. Sunshine Display's capacitive touch TFT LCD modules are relevant when OEM teams want integrated display and touch support for industrial control panels.

Mechanical details also need early review. Check active area, viewing area, bezel overlap, FPC exit, connector height, screw locations, gasket compression, and cable clearance. Small mechanical mismatches can create pressure marks, blocked viewing area, difficult assembly, or service problems.

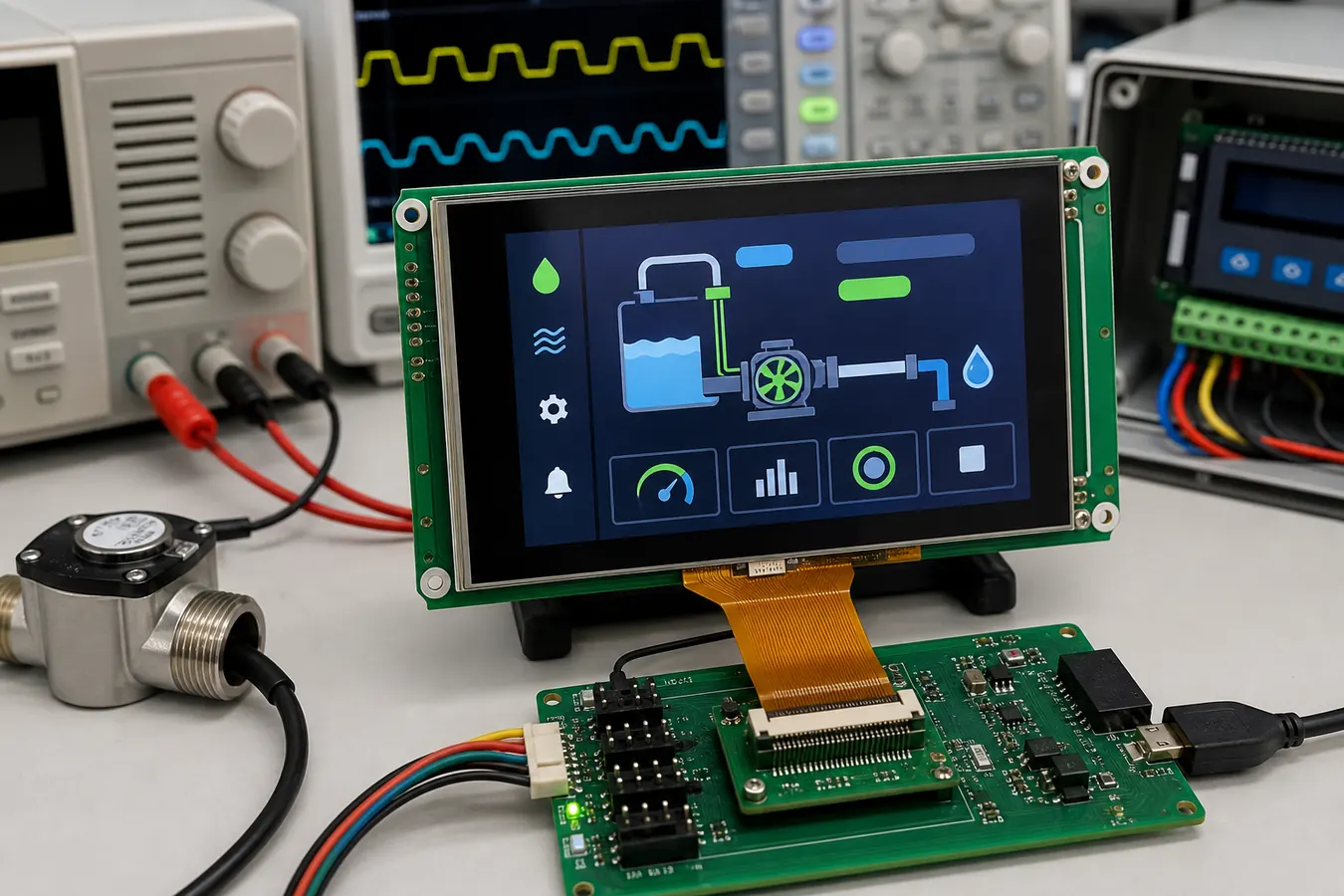

Bench validation should check interface timing, FPC routing, backlight current, and real pump-status UI readability.

Validate Electrical Noise, Temperature, and Moisture Risk

Pump stations and water treatment equipment can include motors, relays, solenoid valves, dosing pumps, switching power supplies, long cables, and grounded metal cabinets. These conditions can affect LCD communication, backlight stability, touch performance, and system reset behavior. A display that works on a clean bench may still need adjustment after cabinet integration.

Engineers should test the LCD module with the real controller board, cable length, power rails, grounding structure, and nearby switching loads. Confirm logic voltage, interface timing, backlight current, ESD protection, ripple margin, and touch response during pump startup and relay switching. If the product may face outdoor shelters, cold rooms, or hot utility spaces, review wide temperature TFT LCD modules early.

Moisture does not mean the LCD itself should be exposed. It means the complete front-panel design should protect the module while keeping the display readable and serviceable. Cover lens selection, sealing structure, venting, cable exits, and condensation risk should all be checked before tooling.

Plan for Lifecycle and Maintenance

Industrial water systems may stay in production for many years and remain in the field even longer. A display change can affect firmware, front-panel tooling, cables, drawings, inspection procedures, service manuals, and spare parts. Buyers should confirm lifecycle expectations, approved drawings, change notification, alternative modules, packaging method, and forecast planning before volume orders.

This matters especially when one control platform is used across multiple pump or filtration products. Keeping display size, interface, connector position, and mounting structure consistent can reduce redesign cost as the product family grows.

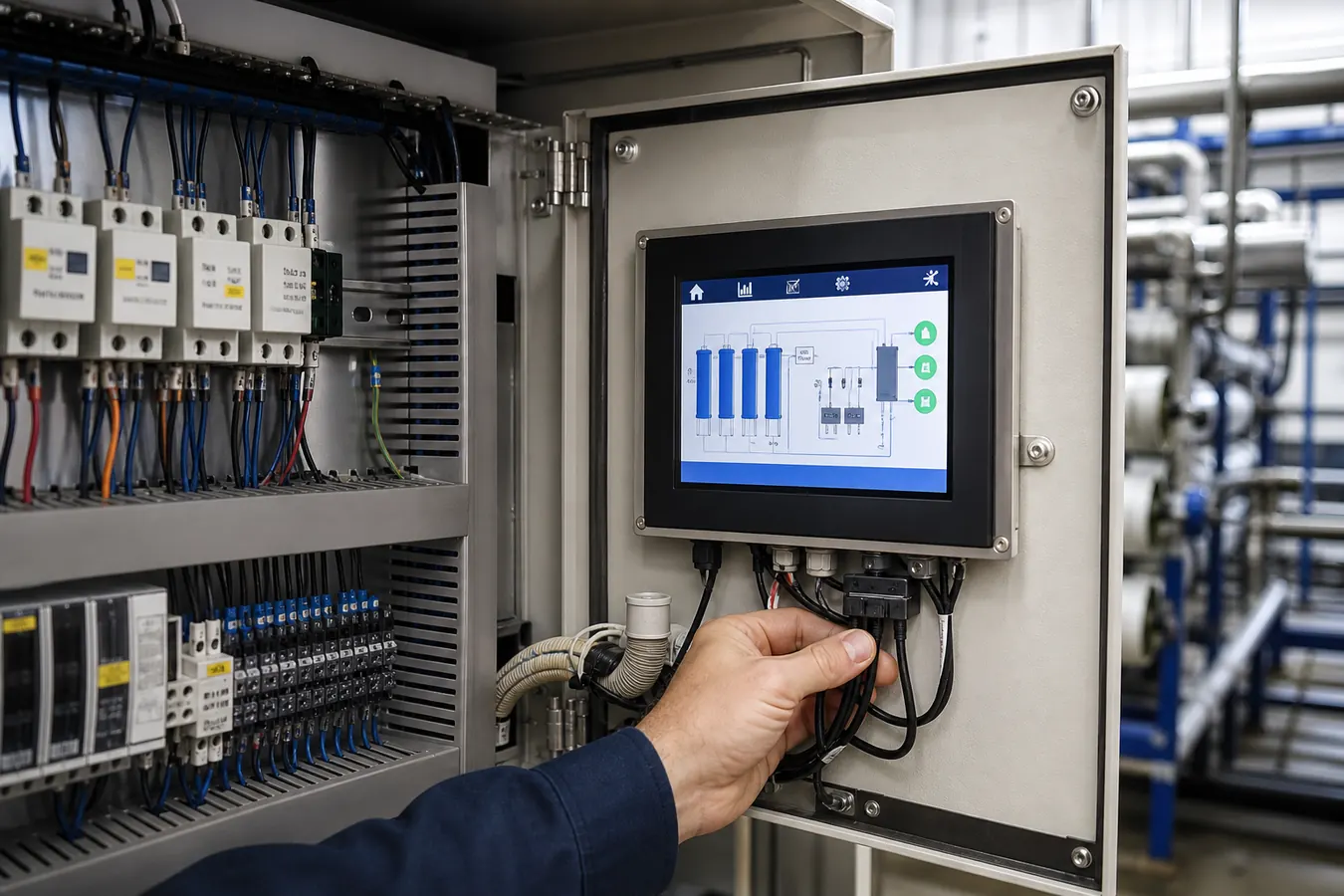

Cabinet-level testing helps confirm wiring clearance, grounding, thermal behavior, and service access after final assembly.

Practical Buying Advice

Before sourcing an LCD module for water treatment or pump control equipment, prepare the target screen size, resolution, interface, brightness requirement, viewing direction, touch or keypad preference, cover structure, operating temperature, sealing needs, power budget, mounting method, cable length, and expected production life.

Sunshine Display can support OEM teams reviewing LCD module selection, touch structure, mechanical drawings, optical requirements, and validation risks for industrial water treatment control systems. To discuss your project, contact Sunshine Display with your target size, interface, enclosure constraints, and operating environment.

FAQ

What LCD module is suitable for water treatment control panels?

The right module depends on screen size, UI density, brightness, viewing angle, input method, operating temperature, electrical noise, sealing structure, mounting design, and lifecycle needs.

Should water treatment panels use capacitive touch?

Capacitive touch can work well for sealed front panels, but it should be tested with the final cover lens, grounding, moisture conditions, and electrical environment.

Why is cabinet-level testing important?

Cabinet testing reveals heat, grounding, wiring, moisture, service access, and electrical noise issues that may not appear during simple bench testing.

Is IPS recommended for pump control displays?

IPS is helpful when operators view the screen from different angles. Standard TFT may work when the viewing direction is controlled and cost is important.

How can OEM buyers reduce long-term display risk?

Confirm lifecycle, approved drawings, change notification, alternative options, packaging, inspection criteria, and forecast planning before volume production.
