High brightness 1000cd/m2 21.5inch IPS TFT LCD FHD LVDS Interface LCD Module

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

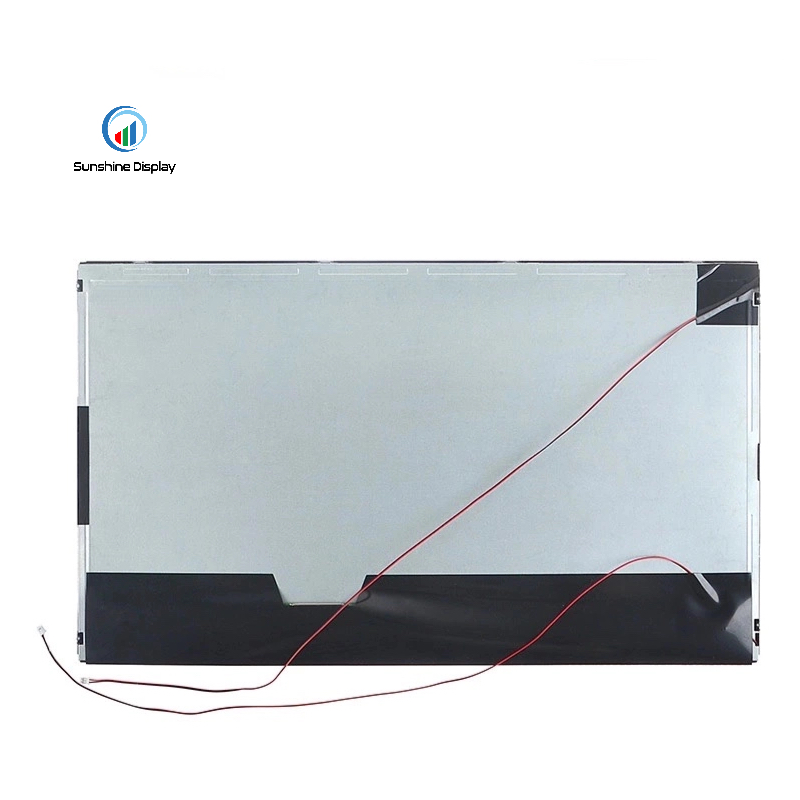

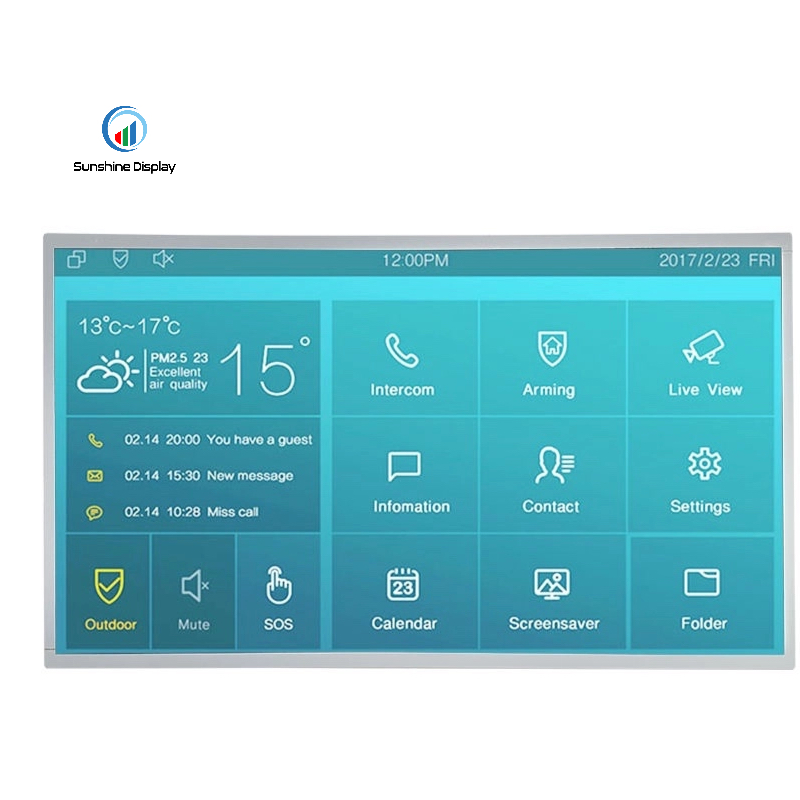

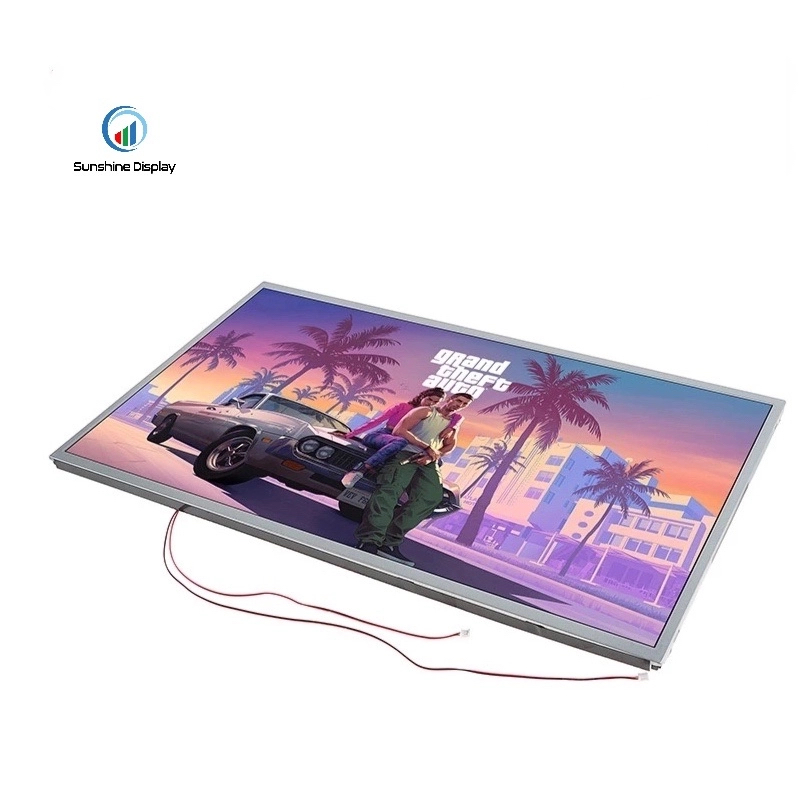

SDT215HFI-10 21.5 inch Description:

The SDT215HFI-10 is a 21.5 inch TFT LCD with 16.7M colors, 1920x1080 resolution, and 1000 cd/m² brightness. Featuring an all-angle viewing experience, LVDS interface, and a wide operating range (0+50), it's compact and versatile for various applications.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 1000 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of 0+50 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

Typical applications for this sunlight readable tft lcd module include industrial automation control panels, medical monitoring equipment, smart home central controllers, POS terminals, in-vehicle infotainment systems, test and measurement instruments, and other embedded display systems.

Why Choose Sunshine Display?

With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT215HFI-10	-
Size	21.5	inch
Resolution	1920x1080	dots
LCD Type	IPS	-
Viewing Angle	89/89/89/89	o'clock
Luminance	1000	cd/m2
LED Numbers	/	-
LCD Driver IC	/	-
Pin Number	30	-
Module Interface	LVDS	-
With/Without TP	Without Touch	-
Touch Driver IC	/	-
Outline Dimension	495.6(W) × 292.2(H) × 10.5(D)	-
Active Area	476.064(H) × 267.786(V)	mm
Operating Temperature	0+50	℃
Storage Temperature	-20+60	℃
