Introduction

When designing a new electronic product, choosing the right TFT-LCD display is crucial. Two of the most common display technologies in the market are TN (Twisted Nematic) and IPS (In-Plane Switching). While they may look similar at first glance, their internal structure, performance, and cost vary significantly.

If you are a product manager or an engineer struggling to decide between TN and IPS, this guide will break down the differences and help you make the best choice for your project.

1. What is a TN LCD Panel?

TN (Twisted Nematic) is one of the earliest and most widely used LCD technologies. It relies on liquid crystal molecules that twist and untwist to allow light to pass through.

  • Pros:
  • Cost-Effective: TN panels are highly mature in production, making them the most budget-friendly option.
  • Low Power Consumption: Ideal for battery-powered devices.
  • Cons:
  • Narrow Viewing Angles: This is the main drawback. If you look at a TN screen from an extreme angle (especially from the bottom), the colors will wash out or invert (Color Inversion).
  • Best Applications: Industrial meters, basic POS machines, printers, and low-cost consumer electronics where the user views the screen directly from the front.

2. What is an IPS LCD Panel?

IPS (In-Plane Switching) technology was developed specifically to solve the viewing angle and color limitations of TN panels. In an IPS panel, the liquid crystal molecules move parallel to the panel plane.

  • Pros:
  • Ultra-Wide Viewing Angles: IPS displays offer excellent 178°/178° viewing angles. The image remains crisp, and colors stay accurate no matter which angle you look from.
  • Superior Color Reproduction: Colors are more vibrant, true-to-life, and consistent.
  • "Hard Screen" for Touch: IPS panels do not show water-like ripples when pressed, making them the perfect companion for Capacitive Touch Panels (CTP).
  • Cons:
  • Higher Cost: The complex manufacturing process makes IPS more expensive than TN.
  • Best Applications: Smart home control panels, medical equipment, automotive dashboards, and high-end handheld devices.

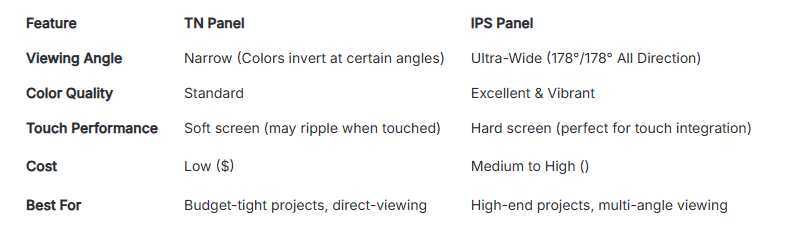

3. Direct Comparison: TN vs. IPS


Conclusion: Which one should you buy?

The choice between TN and IPS ultimately comes down to your budget and application.

If your project is highly cost-sensitive and the screen is mostly viewed straight-on, a TN panel is a practical and economical choice. However, if your product is a premium device, requires touch functionality, or needs to be viewed clearly by multiple people from different angles, upgrading to an IPS panel is absolutely worth the investment.
