If you’ve ever had an HMI go from “looks fine on the bench” to “unreadable on the machine,” you already know the painful truth: display specs aren’t just marketing. They become real design constraints—inside an enclosure, under harsh light, across temperature swings, and over a multi‑year product lifecycle.
This guide covers the fundamentals of what an LCD display is and how it works, then connects those fundamentals to the practical decisions industrial equipment OEMs face.
What is an LCD display?
An LCD (liquid crystal display) is an electronically controlled optical system that modulates light to form an image. Unlike OLED, an LCD panel doesn’t emit light by itself—in most color LCDs, you need a backlight behind the panel.
At a high level, an LCD works by:
- creating polarized light,
- using a liquid crystal layer to rotate or preserve that polarization (depending on voltage), and
- using a second polarizer to either pass or block the light.
A clear, beginner-friendly description of this “light modulation” principle is summarized in Electronics For You’s LCD basics explainer (2024).

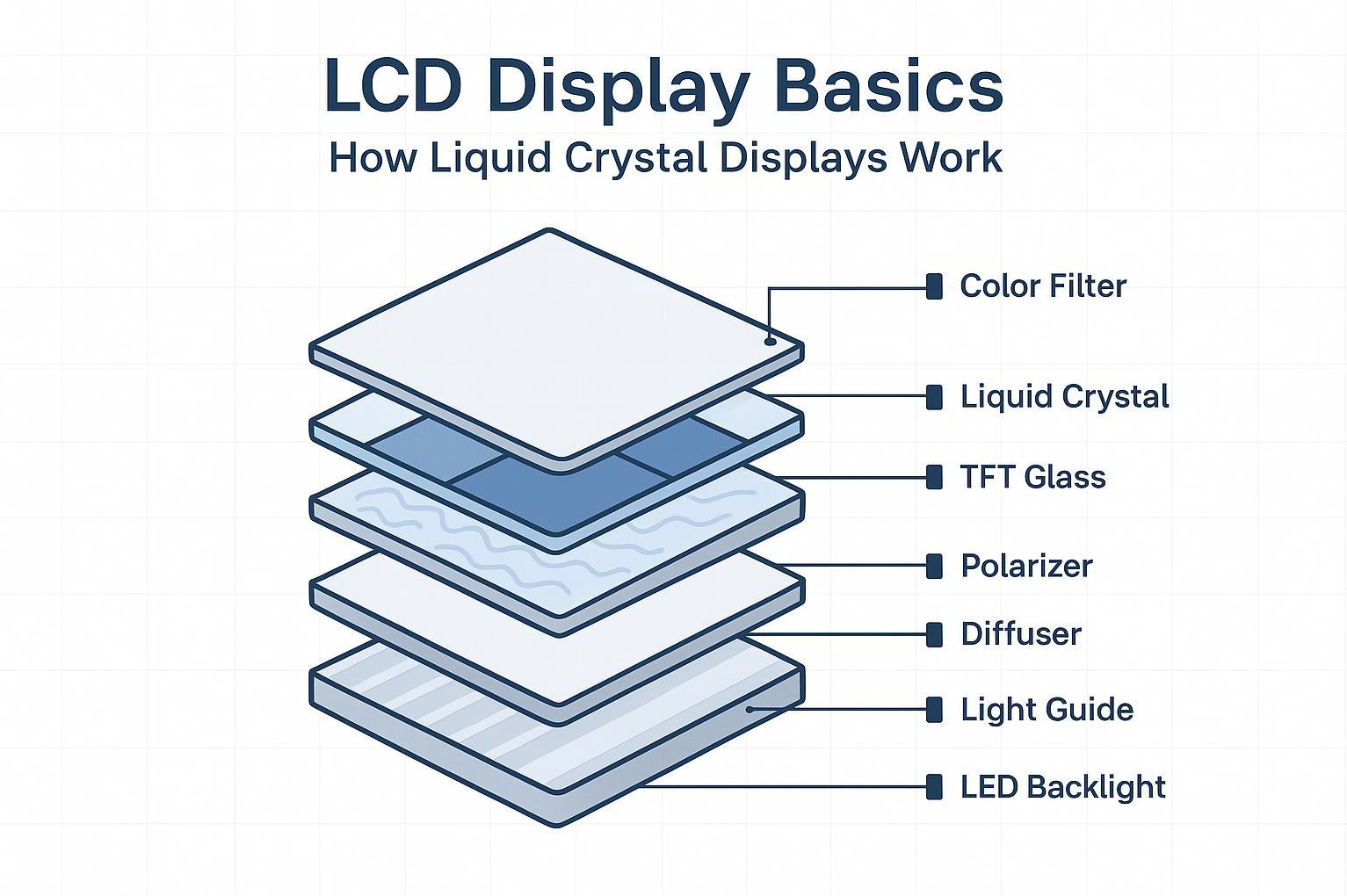

The LCD stack: the layers that make the image
A useful way to understand an LCD is to imagine a controlled “light valve” built from several stacked layers.
1) Backlight + optical films (where the light comes from)
Most modern LCDs use an LED backlight. The backlight’s job is to produce bright, uniform white light.
Between the LEDs and the panel, manufacturers typically use optical films (diffusers, prism sheets, and similar layers) to smooth brightness uniformity and improve efficiency.
Industrial relevance: Backlight brightness is only part of outdoor readability. Reflections from the cover lens and air gaps can dominate the perceived contrast in sunlight—so the optical stack above the LCD matters just as much as raw “nits.”
2) First polarizer (turning light into a controllable signal)
A polarizer is a filter that only lets light waves of a certain orientation pass.
The LCD’s first polarizer converts the backlight into linearly polarized light. This is the “input” the liquid crystal layer can manipulate.
3) TFT glass + electrodes (how each pixel gets commanded)
In most modern color LCDs, pixels are controlled by an active-matrix TFT (thin-film transistor) backplane. In practical terms:
- each subpixel has a transistor “switch” that sets a voltage,
- the liquid crystal layer behaves like a tiny capacitor,
- and the TFT array helps keep each pixel stable between refresh cycles.
If you want a formal breakdown of LCD cell components—including polarizers, glass substrates, transparent electrodes, and the basic operating mechanism—SPIE’s tutorial text is a solid reference: SPIE’s LCD basics tutorial (TT100).
Industrial relevance: A stable pixel drive scheme matters for legibility in static UIs (typical in industrial HMIs), and for predictable behavior across temperature.
4) Liquid crystal layer (the “light valve”)
Liquid crystals are materials whose molecules can reorient when an electric field is applied.
In many LCD modes, the molecules are arranged so that in one state they rotate the polarization of light, and in another state they do not. The amount of rotation (and therefore how much light gets through) can be controlled continuously—this is how LCDs produce grayscale.
5) Color filter (how you get RGB)
Most color LCDs use a white backlight plus an RGB color filter.
Each pixel is composed of three subpixels:
- red
- green
- blue
By controlling how much light each subpixel transmits, the display produces the final color your eye sees.
6) Second polarizer (turning polarization into brightness)
After the liquid crystal layer manipulates polarization, the second polarizer decides the outcome:
- if the polarization matches the second polarizer, light passes → the pixel appears bright
- if it doesn’t, light is blocked → the pixel appears dark
That’s the core LCD mechanism: light → polarization → controlled rotation → pass/block.
Key Takeaway: When you’re evaluating an LCD for industrial equipment, many “spec debates” (brightness, viewing angle, response time) trace back to how the liquid crystal layer is engineered to move—and how that interacts with polarizers and the backlight.
How an LCD pixel is controlled (and why “TFT” shows up everywhere)
You’ll often see modules described as TFT LCD. That label is less about the liquid crystal chemistry and more about the driving method.
Passive vs active matrix (quick context)
- Passive-matrix LCDs drive pixels in a simpler row/column manner and can suffer from slower response and crosstalk.
- Active-matrix LCDs (AMLCDs) use TFTs so each pixel can be addressed more independently.
For modern industrial HMIs—especially with higher resolution, color graphics, and touch—active-matrix TFT is the norm.
What a pixel “really is” electrically
A pixel isn’t a tiny light bulb. It’s closer to a controlled optical shutter:
- the TFT selects the pixel,
- the pixel stores a voltage (capacitive behavior),
- that voltage changes the liquid crystal alignment,
- and that changes transmitted light.
TN vs IPS vs VA: three common LCD modes (and what changes physically)
When people compare LCD “panel types,” they’re usually talking about how the liquid crystal molecules are arranged and how they move under voltage.
A clear high-level overview of the differences is described in HDMI.org’s IPS vs TN vs VA panel explainer (2021).
TN (Twisted Nematic)
What it is: Molecules twist and untwist through the thickness of the LC layer.
What you tend to get:
- fast response
- lower cost
- narrower viewing angles and more color/contrast shift off-axis
Industrial angle: TN can be a practical choice for cost-sensitive control panels where the viewing direction is predictable and tight viewing-angle performance isn’t critical.
IPS (In‑Plane Switching)
What it is: Molecules stay more parallel to the glass and rotate “in plane.”
What you tend to get:
- better viewing angles
- more consistent color appearance
- trade-offs in contrast and sometimes response time depending on the implementation
Industrial angle: IPS is often the safe choice when the operator won’t always be directly in front of the screen (side viewing in a machine cell, multi-user visibility, or wall-mounted panels).
VA (Vertical Alignment)
What it is: Molecules start more vertically oriented and tilt under voltage.
What you tend to get:
- higher contrast (deeper blacks)
- response-time trade-offs depending on the content and tuning
Industrial angle: VA can be compelling when contrast is the priority—especially in darker environments or when the UI has large dark regions.
Specs that matter (and how to interpret them like an OEM)
You don’t need to memorize every optical term—but you do need to translate specs into outcomes.
Brightness (cd/m² or “nits”)
Brightness is typically specified in cd/m² (often called “nits”). Higher brightness helps, but it’s not a magic fix for sunlight.
What to ask yourself:
- Is the display used outdoors or near direct light?
- Is there a cover lens? Is it glossy? Is there an air gap?
- Do you need a high-brightness mode only sometimes (power/thermal constraints)?
Viewing angle
Viewing angle tells you how contrast and color change off-axis.
For industrial HMIs, don’t think “180° = better” in abstract. Think:
- what is the operator position?
- are they above/below the screen (forklift, standing workstation, wall mount)?
- will multiple people view it at once?
Contrast ratio
Contrast ratio affects how “deep” blacks look and how readable fine UI elements are.
In practice, perceived contrast in the field often depends heavily on reflections and ambient light—so the mechanical/optical stack above the LCD can be as important as the raw panel contrast.
Response time
Response time matters most for fast motion. Many industrial HMIs are more static, but response time can still show up as:
- ghosting when animations exist
- readability issues if you do fast scrolling charts
- temperature-dependent slowdowns in cold conditions
Temperature range
Liquid crystal behavior changes with temperature. At low temperatures, the LC response can slow down; at high temperatures, stability and optical performance can be affected.
For equipment that needs to work in unconditioned environments, the temperature rating is not just a checkbox—it influences UI responsiveness and readability.
Backlight lifetime
Backlights age. Brightness drops over time, which can turn a “barely acceptable” sunlight use case into a failure a year later.
For OEM programs, it’s reasonable to ask about:
- lifetime rating assumptions (brightness threshold, ambient temperature)
- brightness after aging
- supply continuity for the backlight configuration
A simple mental model for troubleshooting: where can the image fail?
If an LCD image looks wrong, the issue often maps to one part of the stack:
- Too dim in bright light: backlight brightness, reflections, cover lens choices, optical bonding
- Looks fine head-on but bad off-axis: viewing-angle behavior (mode choice + mechanical mounting)
- Was fine at room temperature, slow or washed out in the field: LC temperature dependence
- Color looks “off” across units: panel variance, backlight binning, calibration expectations
Pro Tip: For early prototypes, evaluate readability under the worst real lighting and mounting geometry you expect—not under lab lighting. A quick sun test can reveal problems that no datasheet line item will warn you about.
Common mistakes OEM teams make when selecting an LCD
- Treating brightness as the only sunlight-readability lever
- High brightness helps, but reflection control and the cover stack can dominate real-world contrast.
- Ignoring the viewing geometry until the enclosure is finalized
- Mounting angle + operator position can turn a “great panel” into a usability failure.
- Underestimating lifecycle and supply risk
- For multi-year equipment programs, long-term availability and change control matter as much as initial specs.
- Assuming “TFT” implies a specific quality level
- TFT is the driving method; it doesn’t guarantee brightness, temperature performance, or viewing angles.
Next steps: what to provide to a display supplier (so you get the right module faster)
Even for a “basic” LCD module, you’ll get better recommendations if you can share a short requirements snapshot:
- size and active area constraints
- target resolution
- interface preference (SPI / RGB / LVDS / MIPI / eDP, etc.)
- brightness target and lighting conditions (indoor, outdoor, shaded, direct sun)
- viewing direction constraints (top/bottom/left/right priority)
- operating temperature range
- whether you need touch (and cover lens requirements)
- expected lifecycle / long-term supply expectations
If you want a quick shortlist of industrial-grade options (including wide-temperature and high-brightness configurations), start with Sunshine Display and browse the Sunshine Display’s TFT LCD module catalog.
For outdoor or high-ambient applications, their category for sunlight-readable TFT LCD modules is a practical place to begin.
FAQ
Do LCDs produce their own light?
No. In most cases, LCDs modulate light rather than generate it, which is why LCDs typically require a backlight (especially for color displays). See Electronics For You’s LCD basics explainer (2024) for a straightforward summary.
What’s the difference between LCD and TFT LCD?
“LCD” describes the liquid crystal light-modulation principle. “TFT LCD” indicates the display uses an active-matrix TFT backplane to drive pixels (common in modern color panels).
Should industrial HMIs choose IPS, TN, or VA?
It depends on your viewing geometry and contrast needs. A clear overview of the trade-offs is in HDMI.org’s IPS vs TN vs VA panel explainer (2021). In practice: IPS is often chosen for wide viewing; TN for cost and speed; VA for higher contrast.
