When designing or purchasing a touch screen display, the screen bonding method is one of the most critical factors that determine the device's visual performance, durability, and cost. Whether you are sourcing displays for industrial equipment, medical devices, or consumer electronics, understanding the difference between Air Bonding and Optical Bonding is essential.

In this comprehensive guide, we will break down the pros and cons of both technologies to help you make the right choice for your project.

1. What is Air Bonding (Frame Bonding)?

Air Bonding, also known as Tape Bonding or Frame Bonding, is a traditional and widely used manufacturing process. In this method, the touch panel and the LCD screen are attached using double-sided adhesive tape only along the edges (the frame).

Because the adhesive is only on the perimeter, an air gap is left between the touch sensor and the display panel.

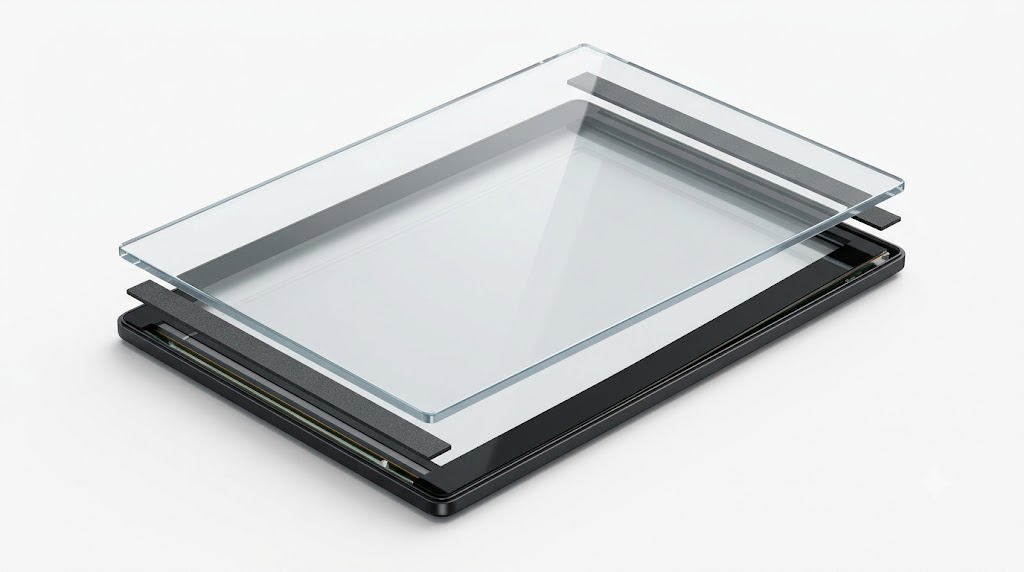

📸 Cross-section diagram of Air Bonding.

Pros of Air Bonding:

  • Cost-Effective: The manufacturing process is simple, making it much cheaper than other methods.
  • Easy to Repair: Because the screens are only taped at the edges, separating the touch panel from the LCD for repairs or replacements is relatively easy.

Cons of Air Bonding:

  • Poor Sunlight Readability: The air gap causes internal light reflection, leading to glare and making the screen hard to read outdoors.
  • Prone to Dust and Moisture: Over time, dust particles and condensation (fog) can enter the air gap, ruining the display quality.
  • Parallax Effect: The physical gap can make the touch interface feel slightly inaccurate to the user.

2. What is Optical Bonding (Full Bonding)?

Optical Bonding (often referred to as Full Bonding) is a premium technology where the gap between the touch panel and the display is completely filled with a transparent adhesive.

Manufacturers typically use two main types of materials for this:

  • OCA (Optically Clear Adhesive): A solid, tape-like adhesive film.
  • OCR (Optically Clear Resin): A liquid glue that is cured using UV light.

By eliminating the air gap, optical bonding merges the touch glass and the screen into one solid piece.

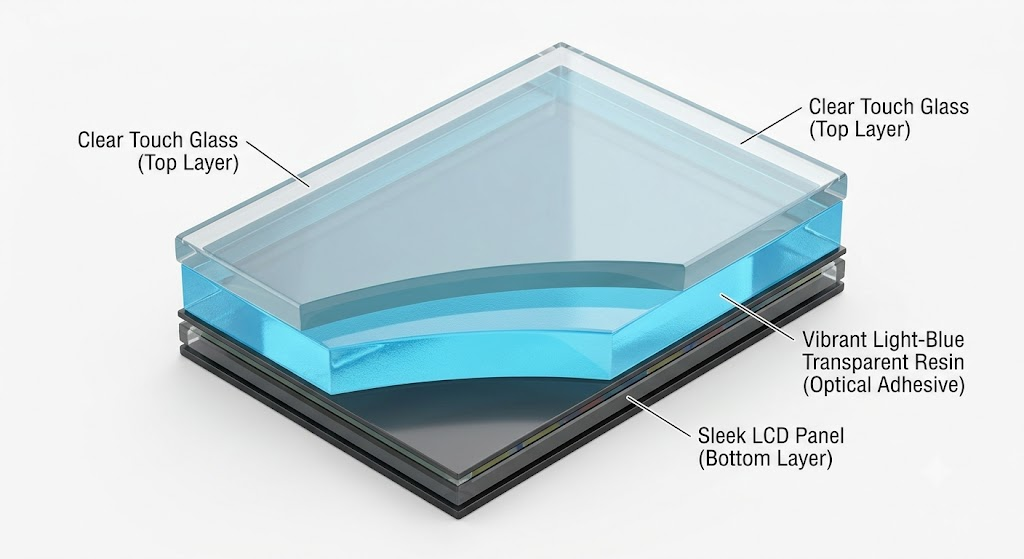

Cross-section diagram of Optical Bonding.

Pros of Optical Bonding:

  • Exceptional Display Quality: Without the air gap, internal reflections are reduced by up to 90%. Colors pop, and the screen becomes highly readable even in direct sunlight.
  • Dustproof and Waterproof: The solid adhesive layer completely seals the screen, preventing any dust, dirt, or moisture from entering.
  • Increased Durability: The resin or adhesive acts as a shock absorber, making the screen much more resistant to physical impact and scratches.
  • High Touch Accuracy: Eliminating the air gap removes the parallax effect, providing a highly responsive and accurate touch experience.

Cons of Optical Bonding:

  • Higher Cost: The materials (OCA/OCR) and the manufacturing process are more expensive.
  • Lower Yield Rate: The process must be done in strict cleanrooms to prevent bubbles and dust. If a mistake occurs, the entire unit is often ruined, leading to lower production yield rates.
  • Difficult to Repair: Once bonded, separating the glass from the LCD is nearly impossible without damaging the display.

3. Direct Comparison: Air Bonding vs. Optical Bonding

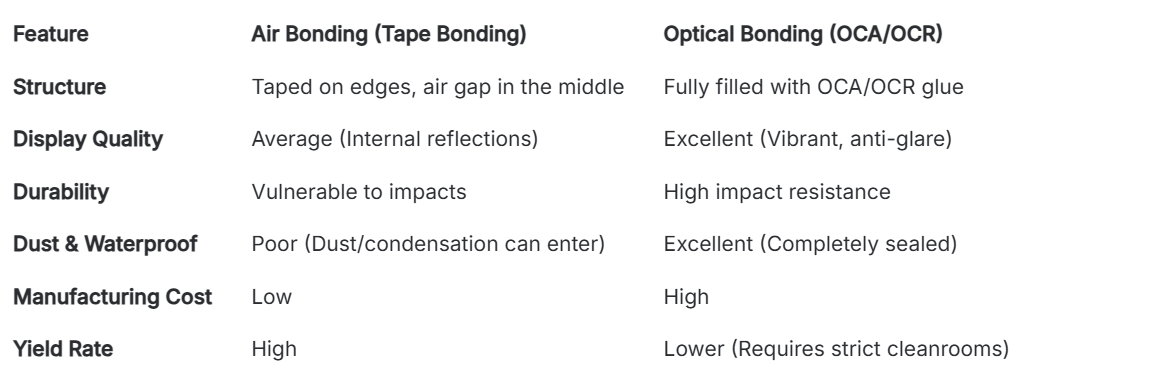

To make it easier for you, here is a quick comparison table between the two bonding technologies:


4. How to Choose the Right Bonding Method?

Choosing between Air Bonding and Optical Bonding ultimately depends on your application environment and budget.

Choose Air Bonding if:

  • You are developing cost-sensitive, budget-friendly devices.
  • The device will be used strictly indoors in controlled environments (e.g., standard office monitors, indoor kiosks, smart home panels).
  • Perfect display quality is not the absolute top priority.

Choose Optical Bonding if:

  • Your device will be used outdoors and requires sunlight readability (e.g., outdoor digital signage, vehicle displays).
  • You are building rugged industrial, marine, or medical displays that must be waterproof and dustproof.
  • You are designing high-end consumer electronics where premium visual performance and touch accuracy are expected.

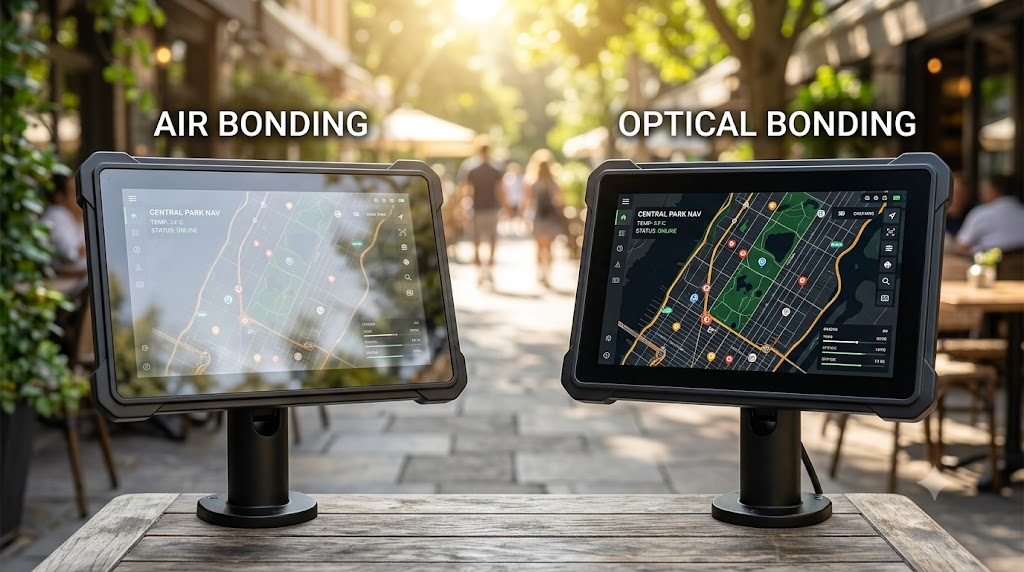

Side-by-side real-life photo comparing the visual output of an air-bonded screen vs. an optically bonded screen.

Conclusion

Understanding the differences between Air Bonding and Optical Bonding is the first step in creating a successful display product. While Tape Bonding offers a cost-effective solution for everyday indoor devices, Optical Bonding (via OCA or OCR) is the undisputed champion for premium, durable, and outdoor-ready screens.
